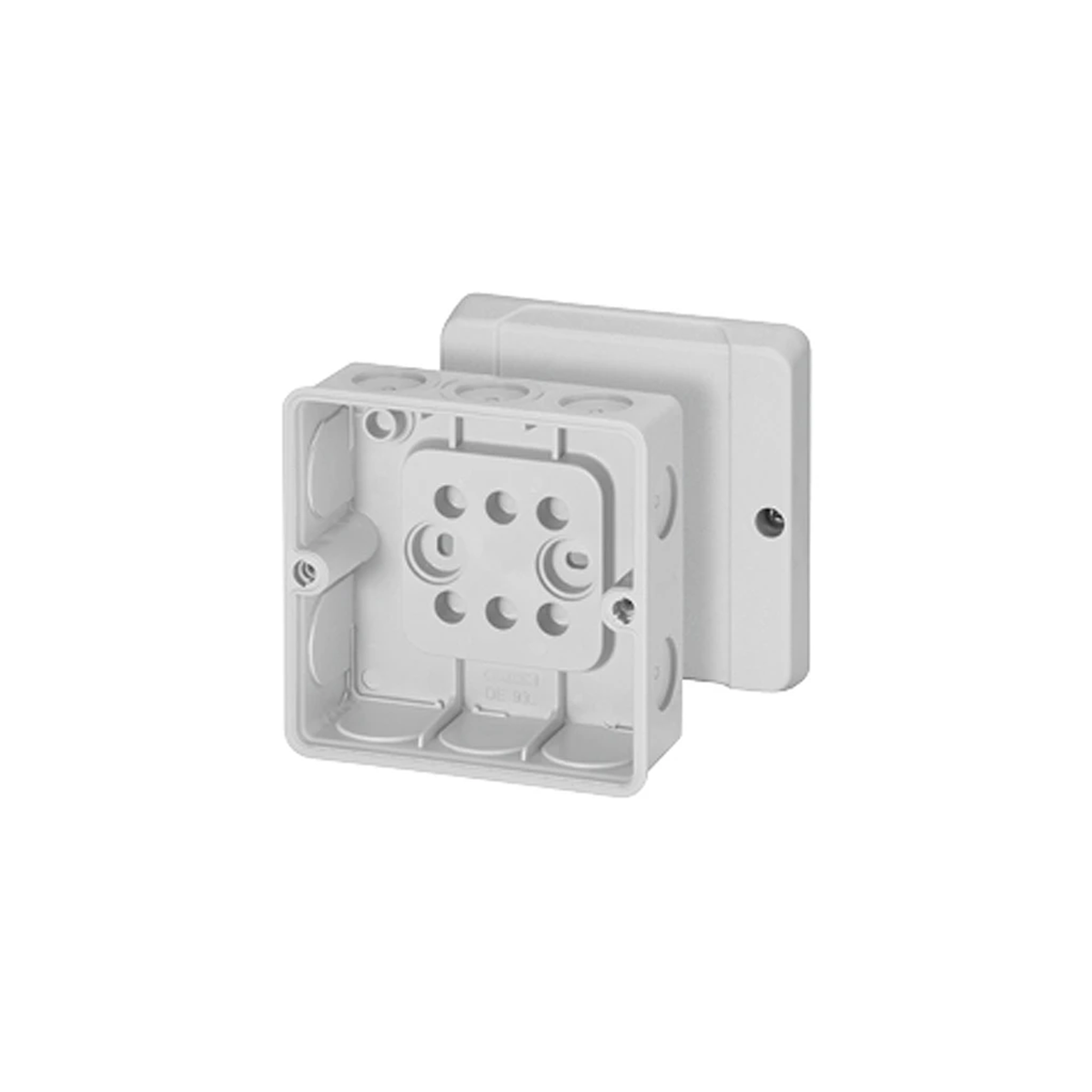

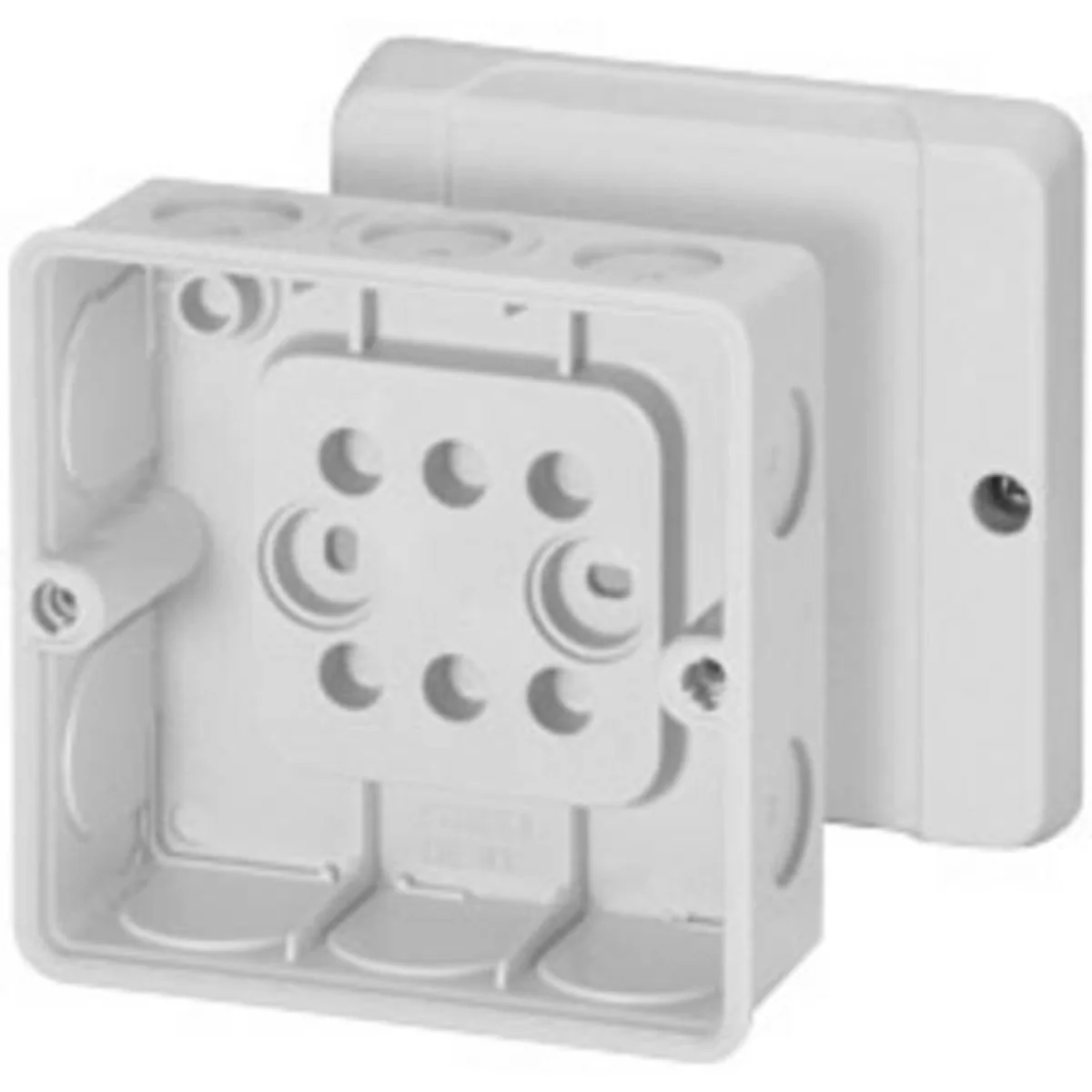

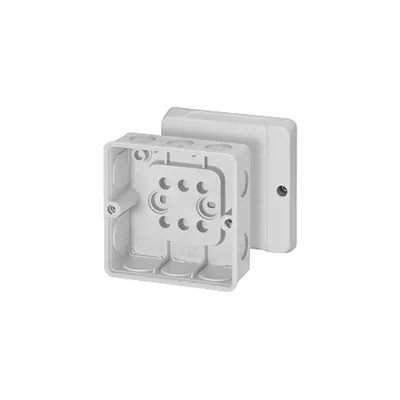

Box for indoor installations DE 9340 membrane glands 98x98x55mm without terminals IP55 gray 62000267
local index:
MVN022HENS
Catalog No:
62000267
EAN code:
4012591602712
Price:
5,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Junction box with flexible membranes
- Without clamps
- 11 integrated membrane glands, closed glands, sealing range Ø 6–18 mm
- With integrated membrane gland in the bottom of the box (sealing range Ø 6–18 mm)
- With two cable fixing brackets, for cable ties up to 6 mm wide, 5mm
- Mounting width: 69mm
- Mounting height: 79mm
- Maximum mounting depth: 37mm
Technical data
-
Depth [mm]55
-
ShapeSquare
-
InstallationSurface-mounted
-
CoverYes
-
Level of securityIP55
-
Typebranching
-
Sealing range [mm]6-18
-
For modular equipmentNot applicable
-
Number of stuffing boxes11
-
ColorGray
-
MaterialPP
-
Rated insulation voltage [V]690
-
TypeWall-mounted
-
Width [mm]98
-
Height [mm]98
-
Fire resistanceNot applicable
-
With terminal stripNO
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerGustav Hensel GmbH & Co. KG
-
Address57368 Lennestadt Gustav-Hensel-Str 6 Niemcy
-
