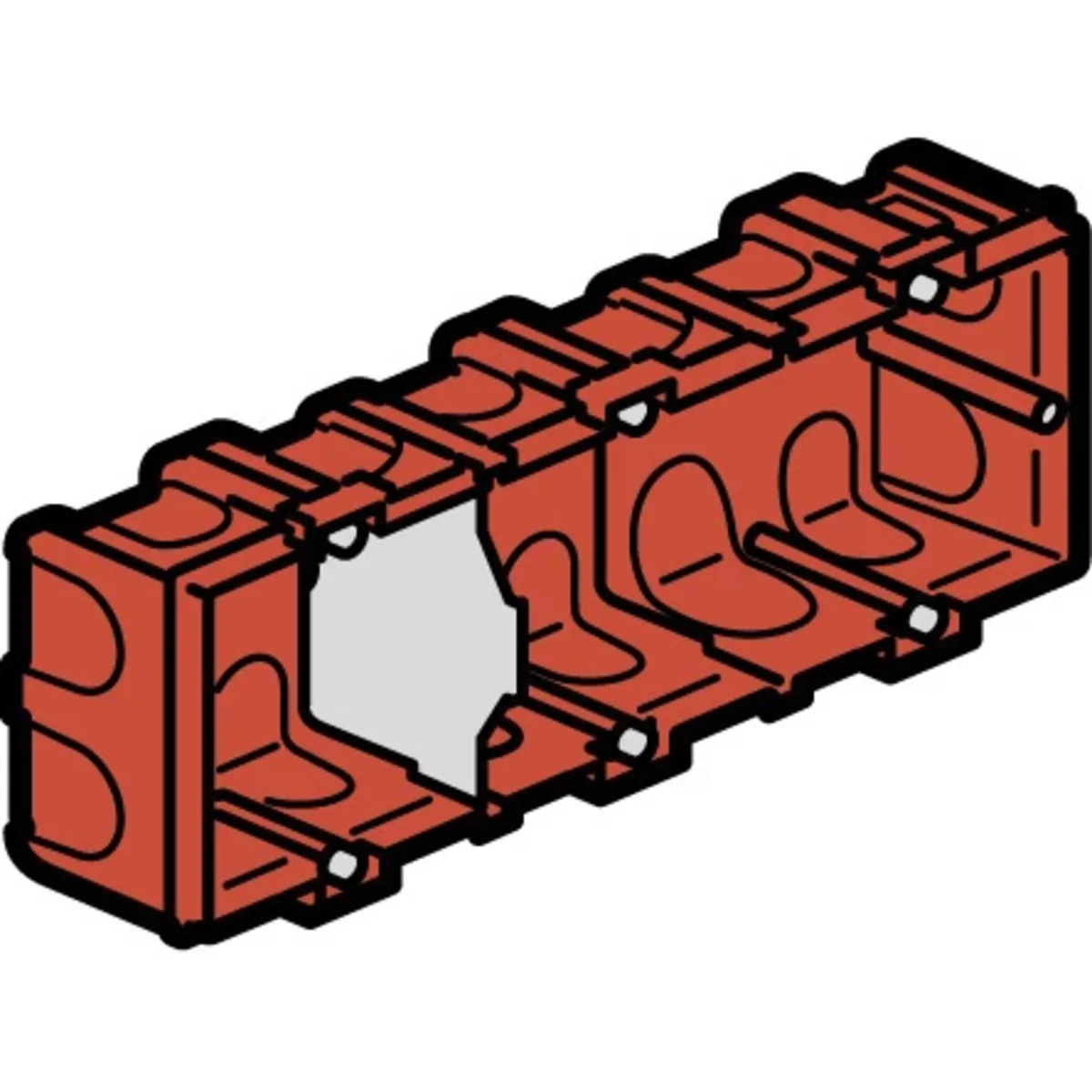

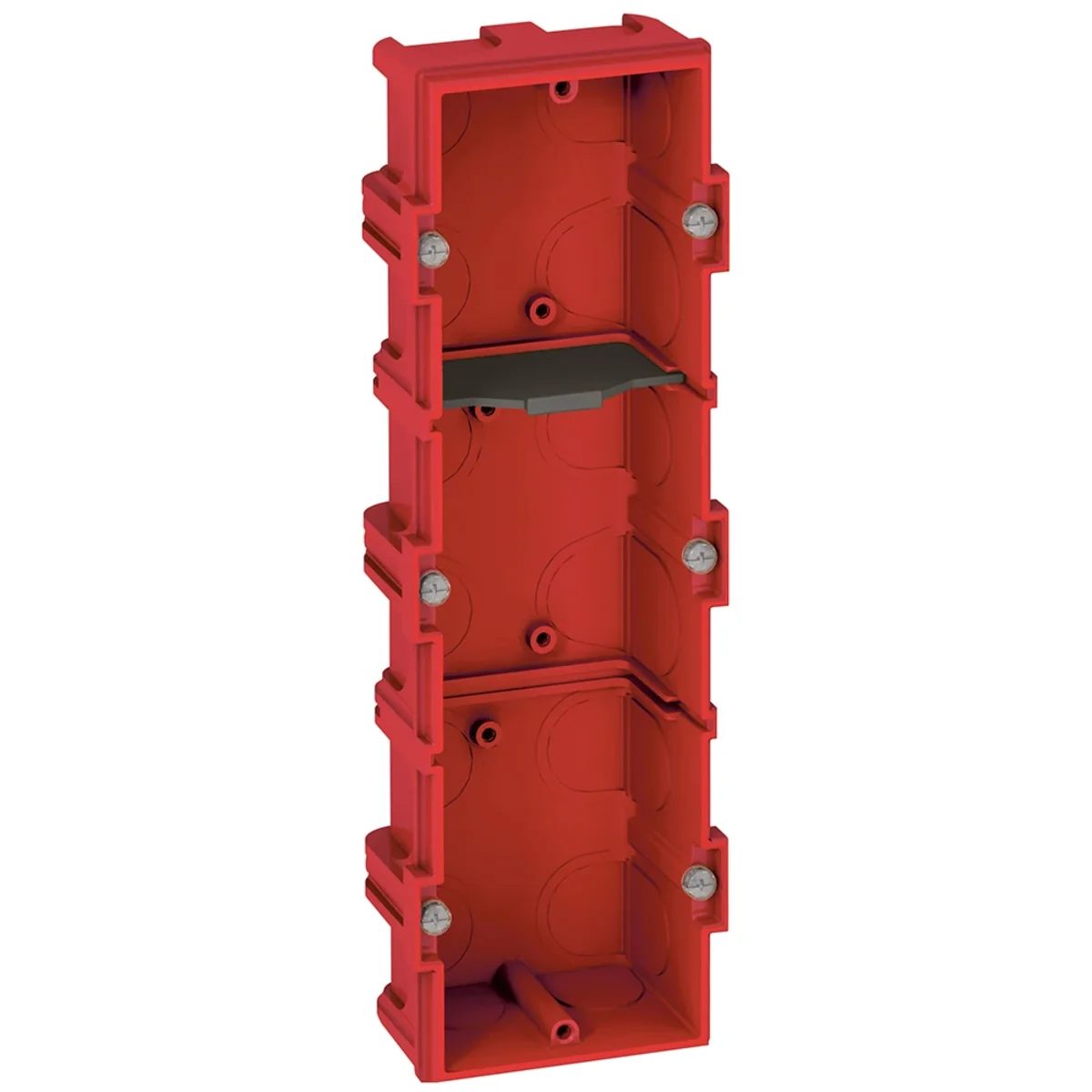

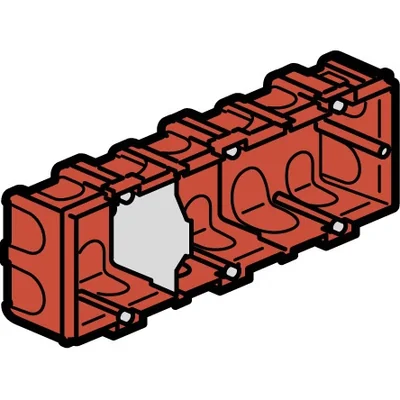

BATIBOX Triple pass-through box for masonry walls 40 mm 080143

local index:
MVP015LEGR
Catalog No:
080143
EAN code:
3245060801434
Manufacturer: LEGRAND
Color: Red
Price:
8,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Boxes for masonry walls


Product parameters

Multiple boxes
Triple box or for 6/8 Mosaic modules
? hole: 67 mm
Depth: 40 mm
For mounting hardware with screws or claws
Supplied with partition walls
Horizontal or vertical mounting

Technical data

  • Color
    Red
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Facing brickwork
  • Construction type
    Device connection box (round/square)
  • Equipped with
    None
  • Width
    71 mm
  • For number of electric fittings
    8
  • With screws
    yes
  • Suitable for cable diameter
    20 ... 25 mm
  • Inlet from the rear
    yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Other
  • Circuit integrity
    None
  • Air tight
    no
  • Clamp position fixed
    no
  • Nozzle
    None
  • Shape
    Rectangular
  • Model
    3-fold
  • Length
    216 mm
  • Inner depth
    43 mm
  • Mounting switching equipment
    Screw or spread out
  • For tube diameter
    20/25 mm
  • Pipe locking
    no
  • Number of inlets
    16
  • Halogen free
    yes
  • Colour
    Red
  • Cover model
    None
  • Sealable
    no
  • With screening
    no
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    no
  • Z zaczepami pazurkowatymi
    no

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 5 pcs. 20 pcs. 1440 pcs.
Weight (kg) 0,676 3,004 216,288
Volume (m3) 0,000 0,000 0,002
Width (m) 0,232 0,260 1,200
Length (m) 0,079 0,240 1,633
Depth (m) 0,258 0,325 1,000
