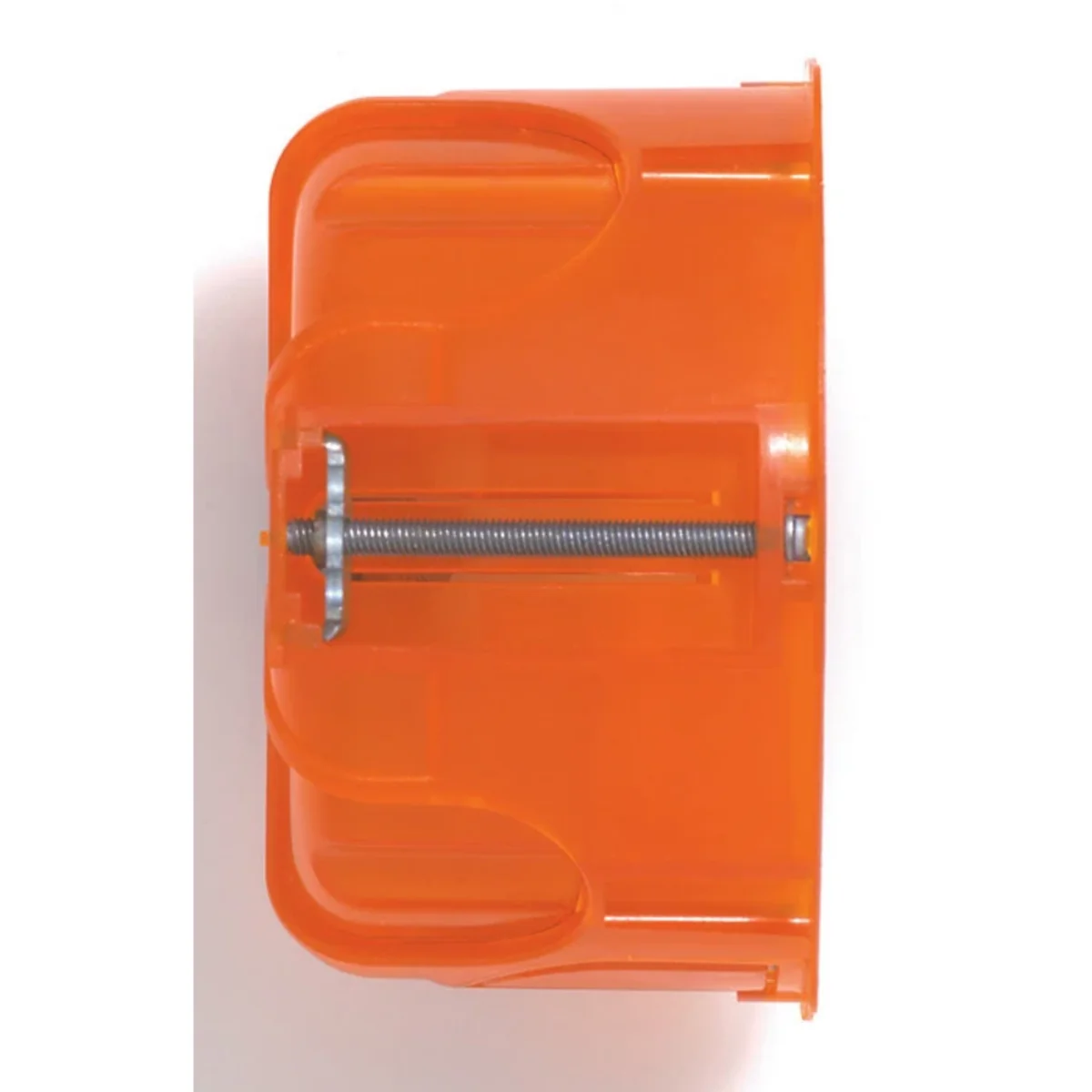

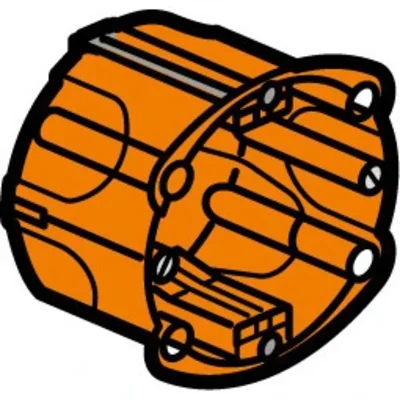

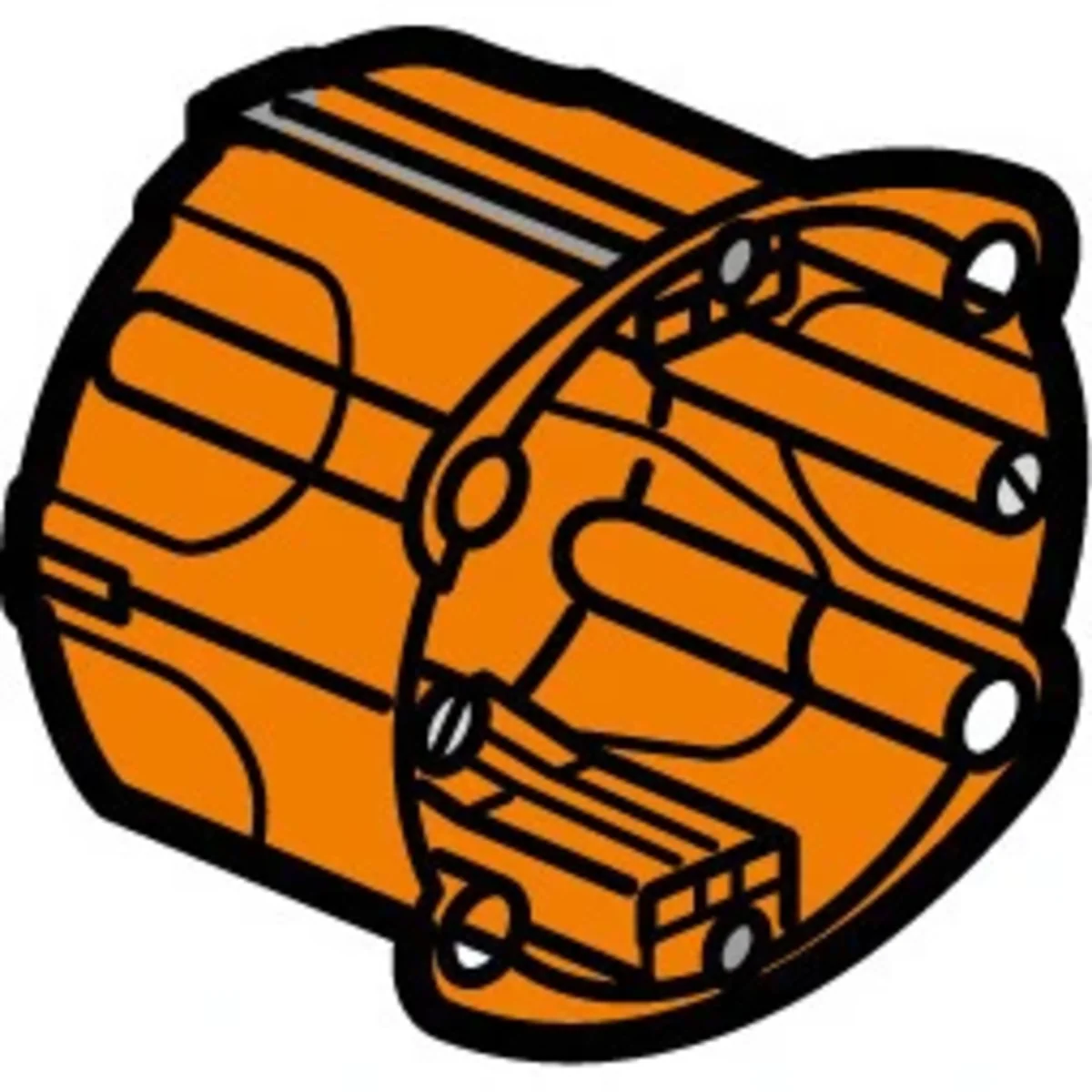

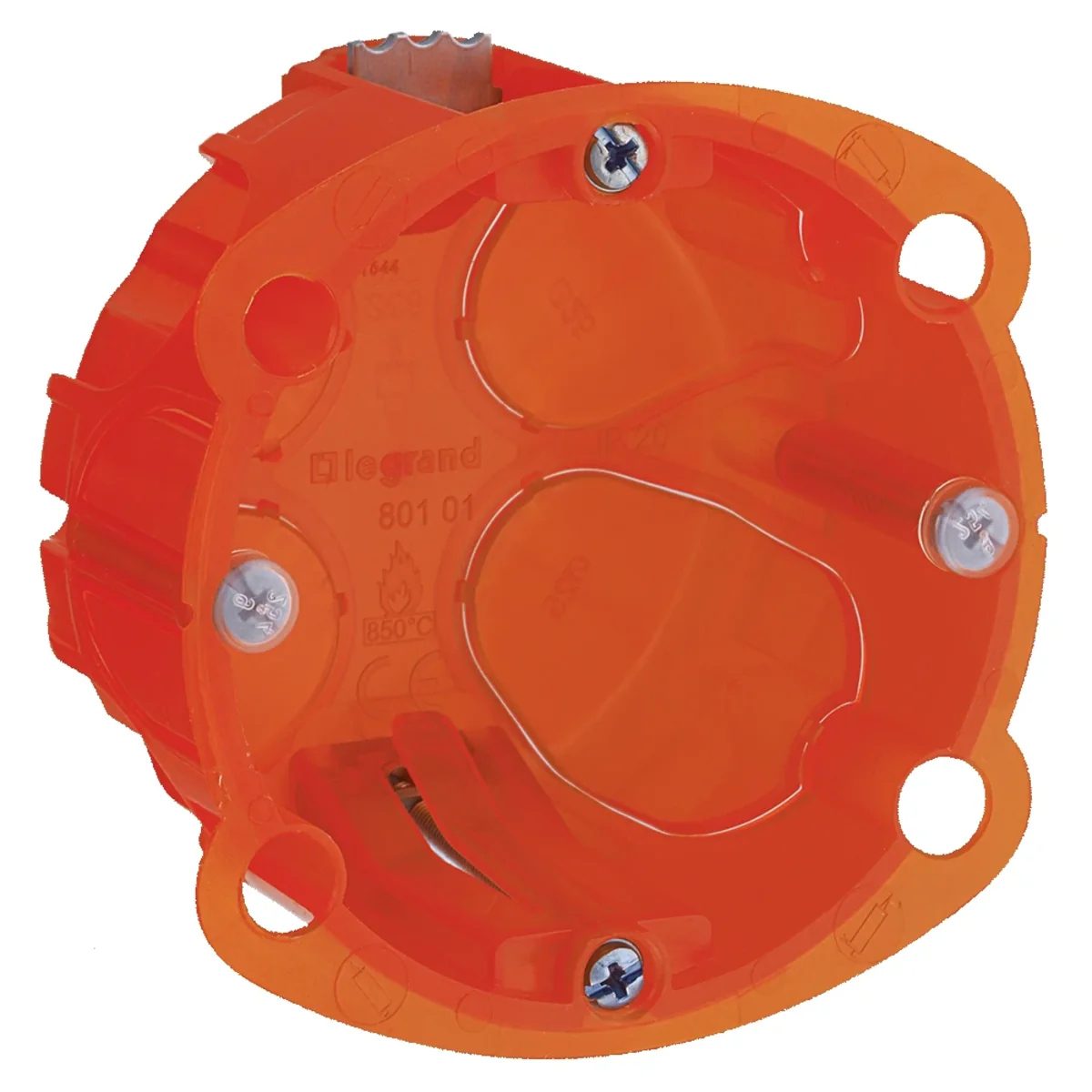

BATIBOX Single box adapted to each wall, 40 mm deep 080101

local index:
MVP001LEGR
Catalog No:
080101
EAN code:
3245060801014
Manufacturer: LEGRAND
For cables with diameter [mm]: 20 - 25
Depth [mm]: 40
Color: Orange
Price:
3,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Single box adapted to any wall.

  • Boxes with increased rigidity with the possibility of various mounting methods.
  • Mounting with using metal holders in walls made of gypsum boards, bricks.
  • By pouring mortar into the wall (stone, brick, etc.).
  • For foam/glue for quick fixing.
  • Equipped with metal claws permanently attached.
  • Supplied with screws protected from mortar.
  • Have holes for the application of glue, foam or mortar for fixing.
  • Number of possible cable entries: 2 x Ø20mm, 2 x Ø25mm.
  • Possibility to mount 2 Mosaic modules.

Technical data

  • For cables with diameter [mm]
    20 - 25
  • Color
    Orange
  • Material
    Plastic
  • Cover
    NO
  • Family
    BATIBOX
  • Width [mm]
    72
  • Fire resistance
    Not applicable
  • For modular equipment
    MOSAIC
  • Attachment diameter [mm]
    60
  • Depth [mm]
    40
  • Shape
    Round
  • Installation
    Flush-mounted
  • Type
    For plasterboard To the wall
  • Level of security
    IP20
  • Type
    For attachments
  • Number of segments
    1 2
  • Number of slots
    4
  • PKWIU
    27.33.13.0

Other technical data

  • Mounting method
    Other
  • Construction type
    Device connection box (round/square)
  • Provided with revolving ring
    no
  • Equipped with
    None
  • Length
    72 mm
  • Inner depth
    40 mm
  • Mounting switching equipment
    Screw or spread out
  • For tube diameter
    20/25 mm
  • Pipe locking
    no
  • Number of inlets
    4
  • Halogen free
    no
  • Colour
    Orange
  • Cover model
    None
  • Sealable
    no
  • With screening
    no
  • Clamp position fixed
    no
  • Nozzle
    None
  • Shape
    Round
  • Model
    Single
  • Couplable
    no
  • Diameter
    67 mm
  • Width
    72 mm
  • For number of electric fittings
    2
  • With screws
    yes
  • Suitable for cable diameter
    20 ... 25 mm
  • Inlet from the rear
    yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP20
  • Cover attachment
    Other
  • Circuit integrity
    None
  • Air tight
    no
  • Luminaire hook mounting
    no
  • Z zaczepami pazurkowatymi
    no

Bulk packaging

A kind of package Karton Paleta
Quantity 20 pcs. 5280 pcs.
Weight (kg) 0,768 202,752
Volume (m3) 0,000 0,002
Width (m) 0,147 1,200
Length (m) 0,122 1,490
Depth (m) 0,293 1,000
