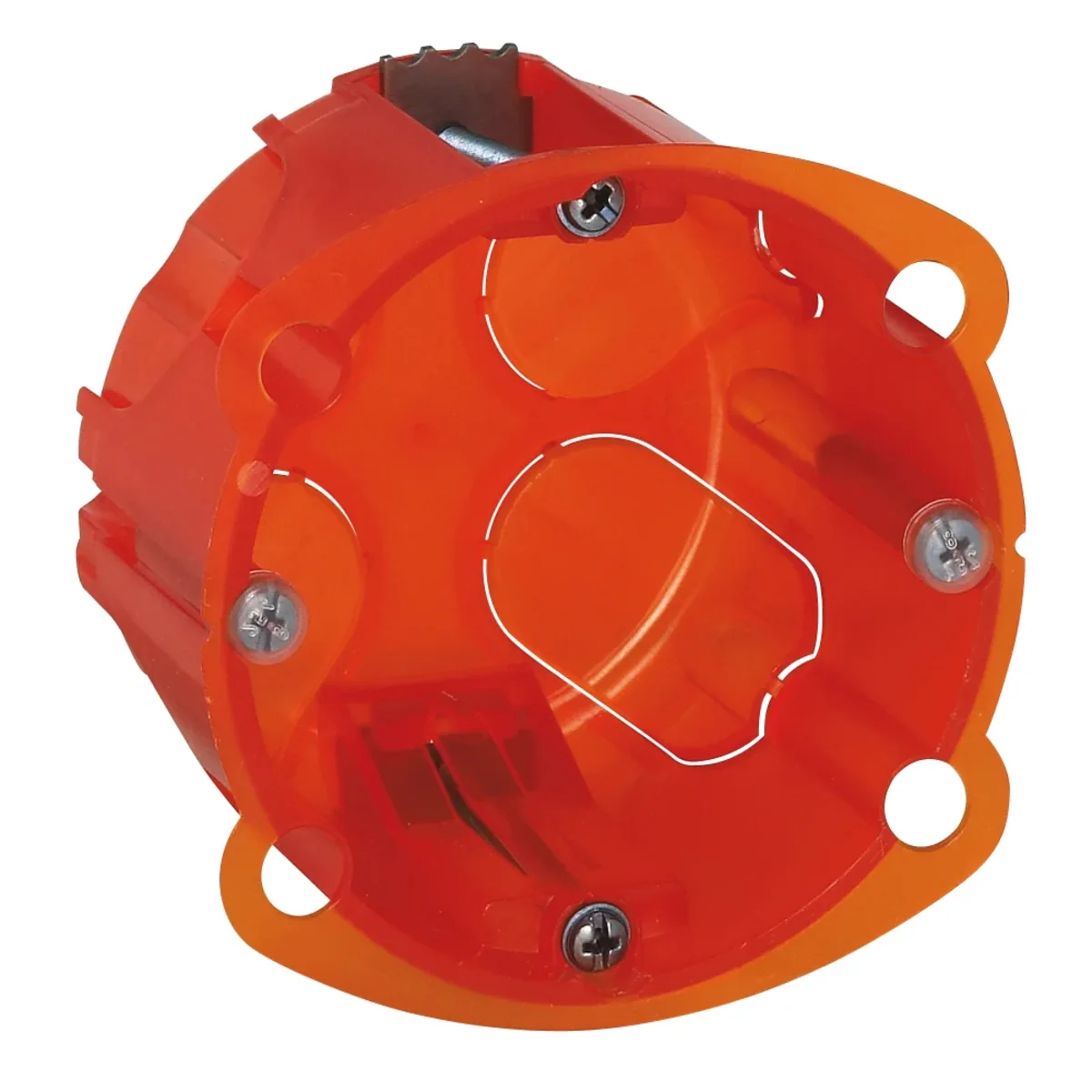

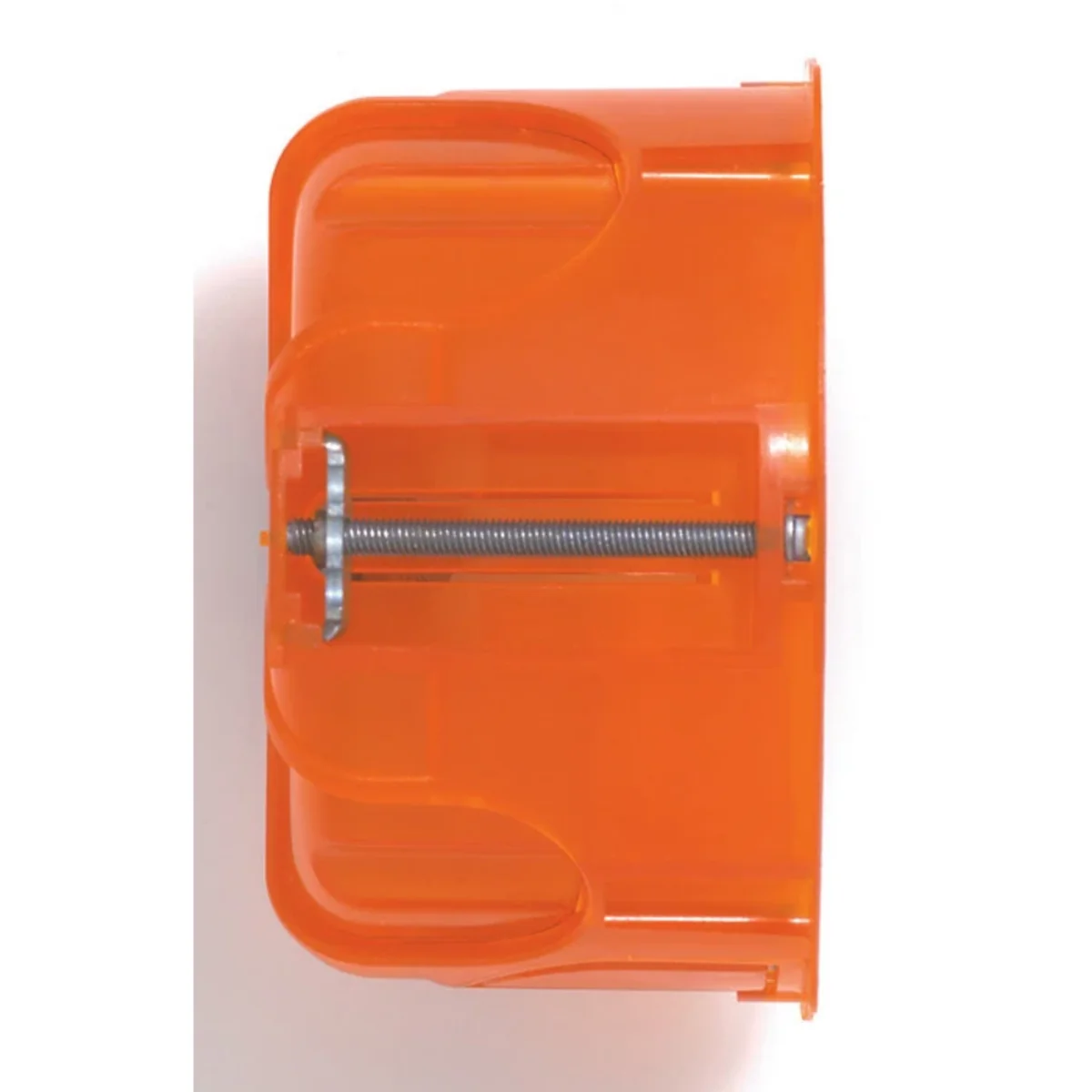

BATIBOX Single box adapted to any wall, 50mm deep 080121
local index:
MVP002LEGR
Catalog number:
080121
EAN code:
3245060801212
Price:
25,74 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Single box adapted to any wall.
- Boxes with increased rigidity with the possibility of various mounting methods.
- Mounting with using metal holders in walls made of gypsum boards, bricks.
- By pouring mortar into the wall (stone, brick, etc.).
- For foam/glue for quick fixing.
- Equipped with metal claws permanently attached.
- Supplied with screws protected from mortar.
- Have holes for the application of glue, foam or mortar for fixing.
- Number of possible cable entries: 2 x Ø20mm, 2 x Ø25mm.
- Possibility to mount 2 Mosaic modules.
Technical data
-
For cables with diameter [mm]20 - 25
-
ColorOrange
-
MaterialPlastic
-
CoverNO
-
FamilyBATIBOX
-
Width [mm]72
-
Fire resistanceNot applicable
-
For modular equipmentMOSAIC
-
Attachment diameter [mm]60
-
Depth [mm]50
-
ShapeRound
-
InstallationFlush-mounted
-
TypeFor plasterboard To the wall
-
Level of securityIP20
-
TypeFor attachments
-
Number of segments1 2
-
Number of slots4
-
PKWIU27.33.13.0
Other technical data
-
Mounting methodOther
-
Construction typeDevice connection box (round/square)
-
Provided with revolving ringNo
-
Equipped withNone
-
Length72 mm
-
Depth50 ... 50 mm
-
For number of electric fittings2
-
With screwsYes
-
Number of adjustable device fixing lugs2
-
Housing feed-through by seal membraneNo
-
Housing feed-through by step membraneNo
-
Suitable for cable diameter20 ... 25 mm
-
Pipe locking optionalNo
-
Number of inlets4
-
MaterialPlastic
-
Surface protectionUntreated
-
Degree of protection (IP)IP20
-
Transparent coverNo
-
SealableNo
-
With screeningNo
-
Number of poles of the clamp0
-
Luminaire hook mountingNo
-
Special applicationNone
-
ShapeRound
-
ModelSingle
-
CouplableNo
-
Diameter67 mm
-
Width72 mm
-
Inner depth50 mm
-
Mounting switching equipmentScrew or spread out
-
Number of non-adjustable device fixing lugs0
-
Housing feed-through by break-out openingYes
-
Housing feed-through by nozzleYes
-
For tube diameter20/25 mm
-
Pipe lockingNo
-
Inlet from the rearYes
-
Number of included spouts0
-
Halogen freeNo
-
ColourOrange
-
Cover modelNone
-
Cover attachmentOther
-
Circuit integrityNone
-
Air tightNo
-
Clamp position fixedNo
-
NozzleNone
-
With partition panelNo
Manufacturer details
-
ManufacturerLegrand Polska Sp. z o.o.
-
Address57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 10 pcs. | 2900 pcs. |
| Weight (kg) | 0,492 | 142,680 |
| Volume (m3) | 0,005 | 1,938 |
| Width (m) | 0,175 | 1,200 |
| Length (m) | 0,140 | 1,615 |
| Depth (m) | 0,215 | 1,000 |
