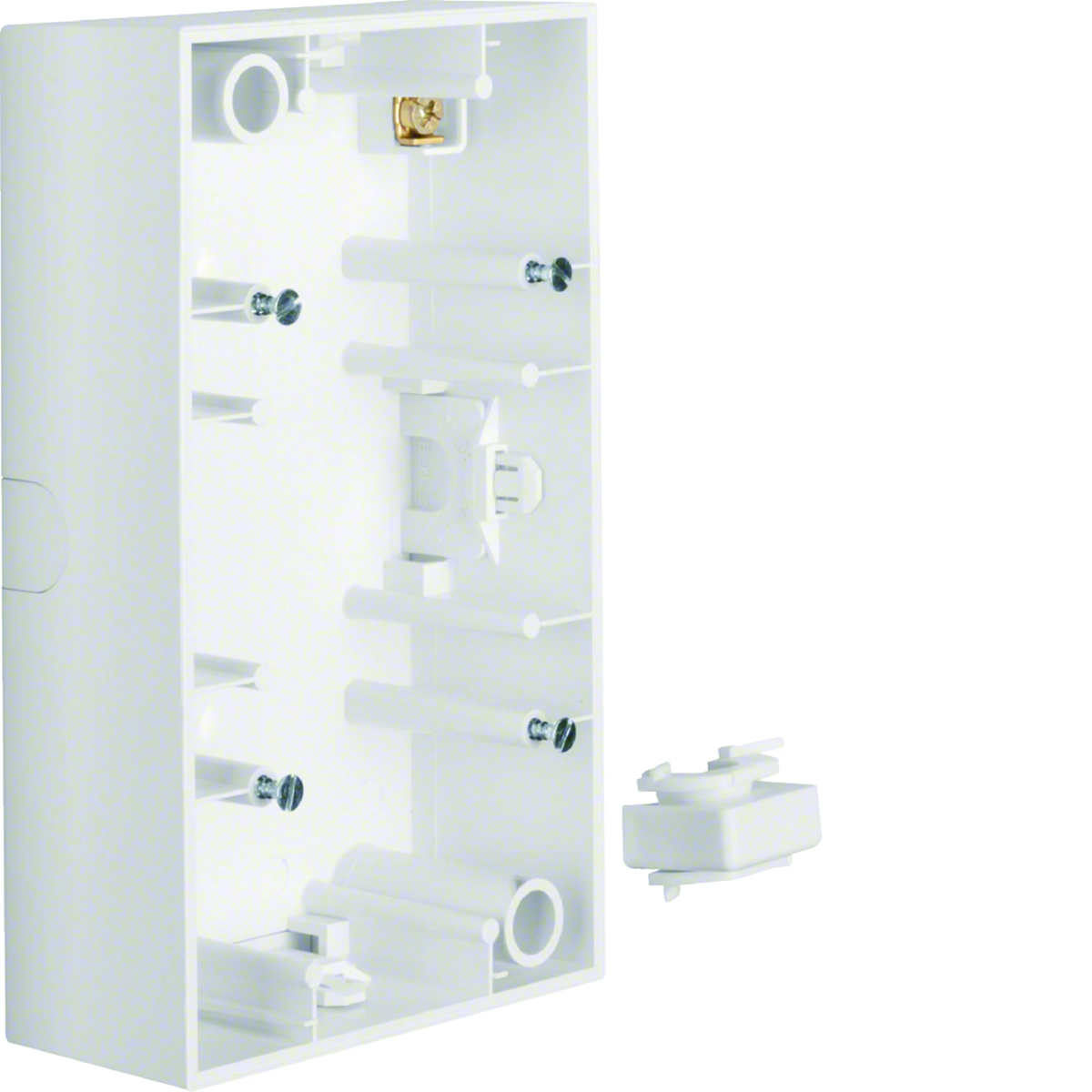

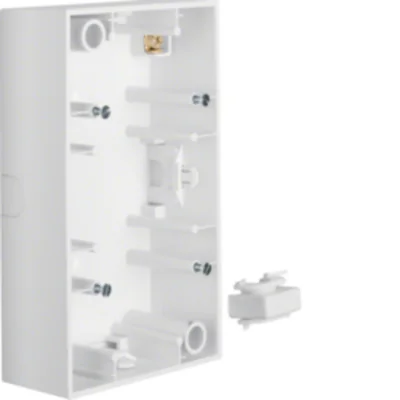

B.3 Snow-white double wall-mounted box 10421909

Lokaler Index:
MVN033BERK
Katalognummer:
10421909
EAN-Code:
4011334223443
Hersteller: BERKER
Halogen free: Yes
Depth [mm]: 42
Color: White
Preis:
101,07 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 10 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Surface-mounted 2-gang box from Berker B.3 - a series whose wiring accessories are an architectural detail that emphasizes the style of the interior. This modern, yet classic in its elegance design, thanks to the variety of available colors, can become the icing on the cake of any arrangement.

Features:

  • Mounting depth: 37 mm,
  • Cable: with cable and conduit entry,
  • Cable entries: cable entry possible from top, bottom and in the middle of each side,
  • Mounting type: suitable for mounting on a flammable surface; for vertical installation,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Technische Daten

  • Halogen free
    Yes
  • Color
    White
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    B.3
  • Width [mm]
    154
  • Height [mm]
    93
  • Accurate color
    Snow white
  • Mounting direction
    Vertical
  • For modular equipment
    Not applicable
  • Number of slots
    4
  • Depth [mm]
    42
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0

Weitere technische Daten

  • Assembly arrangement
    Surface mounted box
  • Suitable for modular domestic switching devices
    No
  • Mounting direction
    Vertical
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With cover frame
    No
  • With cable entry
    Yes
  • With installation tube entry
    Yes
  • Number of earthing terminals
    1
  • Width
    153 mm
  • Depth
    41.3 mm
  • Suitable for mounting over existing flush-mounted box
    Yes
  • Number of modules (module system)
    0
  • Desktop device
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Number of inlets
    4
  • Degree of protection (IP)
    IP20
  • Height
    92.7 mm
  • Compliant with BS 4662
    No

Hersteller-Details

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 5 stk. 10 stk. 320 stk.
Gewicht (kg) 0,760 1,957 82,639
Breite (m) 0,180 0,300 0,800
Länge (m) 0,130 0,220 1,050
Tiefe (m) 0,270 0,400 1,200
