B.3 Single surface-mounted box, anthracite 10411606

local index:
MVN022BERK
Catalog No:
10411606
EAN code:
4011334223405
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 42
Color: Graphite
Price:
13,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

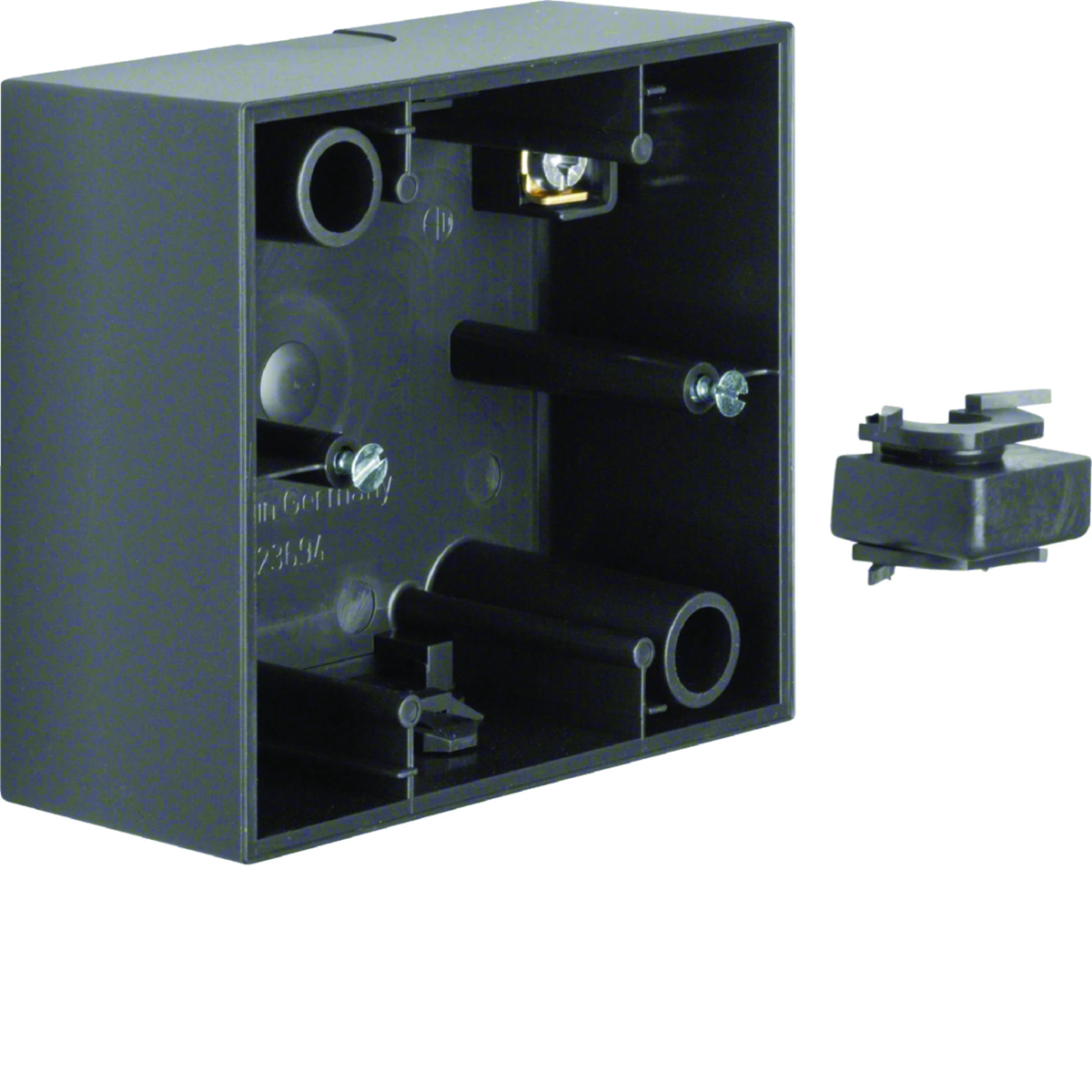

Surface-mounted 1-gang box from Berker B.3 - a series whose wiring accessories are an architectural detail that emphasizes the style of the interior. This modern, yet classic in its elegance design, thanks to the variety of available colors, can become the icing on the cake of any arrangement.

Features:

  • Mounting depth : 37 mm,
  • Cable: with cable and conduit entry,
  • Entry: cable entry possible from above and below,
  • Mounting type : suitable for mounting on flammable surfaces,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Technical data

  • Halogen free
    Yes
  • Color
    Graphite
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    B.3
  • Width [mm]
    93
  • Height [mm]
    83
  • Accurate color
    Anthracite
  • Mounting direction
    Universal
  • For modular equipment
    Not applicable
  • Number of slots
    2
  • Depth [mm]
    42
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    1
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    0
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Device width
    93 mm
  • Device depth
    42 mm
  • Suitable for modular domestic switching devices
    No
  • Number of units
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With cover frame
    No
  • With cable entry
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    83 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 20 pcs. 640 pcs.
Weight (kg) 0,080 0,920 2,280 97,960
Width (m) 0,093 0,185 0,300 0,800
Length (m) 0,042 0,130 0,225 1,050
Depth (m) 0,083 0,275 0,400 1,200
