B.3 Double surface-mounted box, anthracite 10421606

Index local:
MVN032BERK
Numéro de catalogue:
10421606
Code EAN:
4011334223436
Producteur: BERKER
Halogen free: Yes
Depth [mm]: 42
Color: Graphite
Prix:
24,62 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 10 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

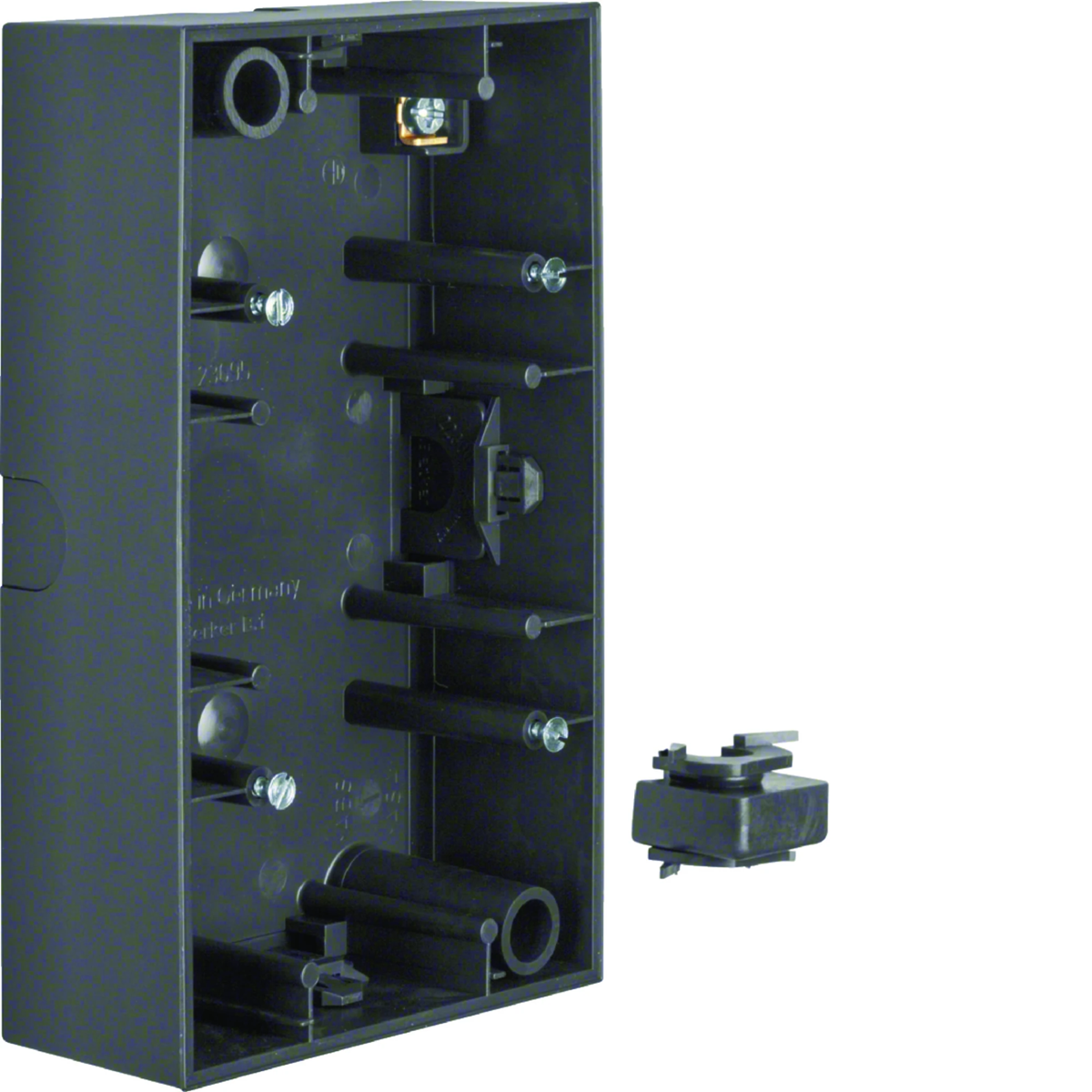

Surface-mounted 2-gang box from Berker B.3 - a series whose wiring accessories are an architectural detail that emphasizes the style of the interior. This modern, yet classic in its elegance design, thanks to the variety of available colors, can become the icing on the cake of any arrangement.

Features:

  • Mounting depth: 37 mm,
  • Cable: with cable and conduit entry,
  • Cable entries: cable entry possible from top, bottom and in the middle of each side,
  • Mounting type: suitable for mounting on a flammable surface; for vertical installation,
  • Thanks to the use of surface-mounted boxes, flush-mounted devices can be used for surface-mounted installation.

Données techniques

  • Halogen free
    Yes
  • Color
    Graphite
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    B.3
  • Width [mm]
    154
  • Height [mm]
    93
  • Accurate color
    Anthracite
  • Mounting direction
    Vertical
  • For modular equipment
    Not applicable
  • Number of slots
    4
  • Depth [mm]
    42
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0

Autres données techniques

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    0
  • Mounting direction
    Vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Device width
    154 mm
  • Device depth
    42 mm
  • Suitable for modular domestic switching devices
    No
  • Number of units
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • With cover frame
    No
  • With cable entry
    Yes
  • Degree of protection (IP)
    IP20
  • Device height
    93 mm

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 1 pcs. 5 pcs. 10 pcs. 320 pcs.
poids (kg) 0,125 0,735 1,910 86,120
Largeur (m) 0,093 0,187 0,300 0,800
Longueur (m) 0,042 0,130 0,225 1,050
Profondeur (m) 0,154 0,274 0,400 1,200
