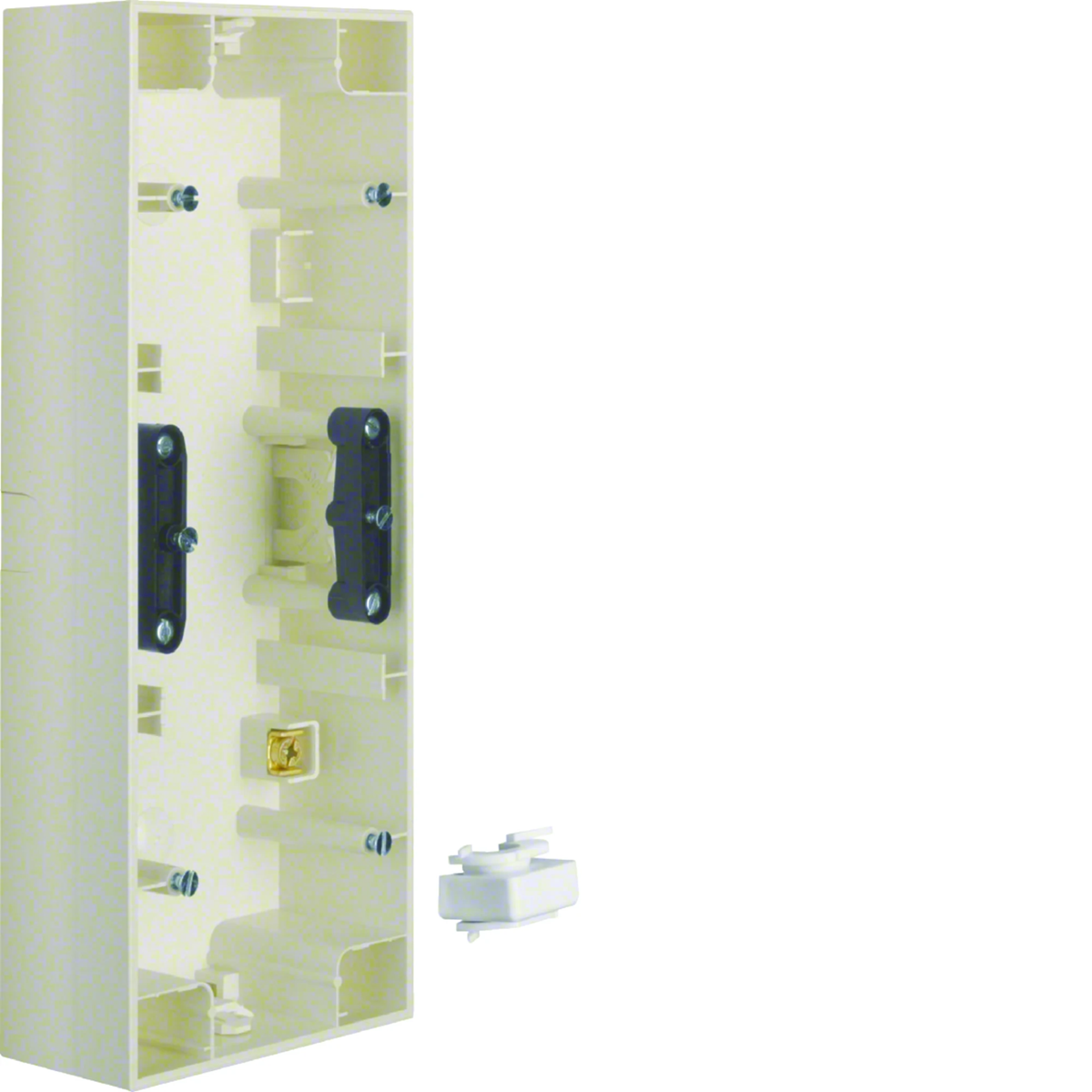

B. SQUARE Triple cream surface-mounted box 5310439902
local index:
MVN005BERK
Catalog No:
5310439902
EAN code:
5907561851261
Price:
15,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surface mountedBerker series B.Square
- With cable and conduit entry.
- Cable entry possible from the top, bottom and in the middle of each side.
- Thanks to the use of surface-mounted boxes, flush-mounted mechanisms can be used for surface-mounted installation.
- For vertical and horizontal.
- Installation depth: 37mm.
- Installation depth: 33.5mm
Technical data
-
Halogen freeYes
-
ColorBeige
-
MaterialPlastic
-
CoverNO
-
FamilyB.SQUARE
-
Width [mm]83
-
Height [mm]225
-
Accurate colorCreamy
-
Mounting directionUniversal
-
For modular equipmentNot applicable
-
Number of slots4
-
Depth [mm]42
-
ShapeRectangular
-
InstallationSurface-mounted
-
TypeWall-mounted
-
Level of securityIP20
-
TypeFor attachments
-
Surface finishShiny
-
Fire resistanceNot applicable
-
Number of segments3
-
With terminal stripNO
-
PKWIU27.12.40.0
Other technical data
-
Assembly arrangementHousing base
-
Number of units3
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
TransparentNo
-
With duct entryYes
-
With screw gland entryNo
-
Device width83 mm
-
Device depth42 mm
-
Number of modules (module system)0
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With cover frameNo
-
With cable entryYes
-
Degree of protection (IP)IP20
-
Device height225 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 5 pcs. | 10 pcs. | 320 pcs. |
| Weight (kg) | 0,165 | 0,935 | 2,307 | 93,839 |
| Width (m) | 0,083 | 0,190 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,140 | 0,225 | 1,050 |
| Depth (m) | 0,225 | 0,275 | 0,400 | 1,200 |
