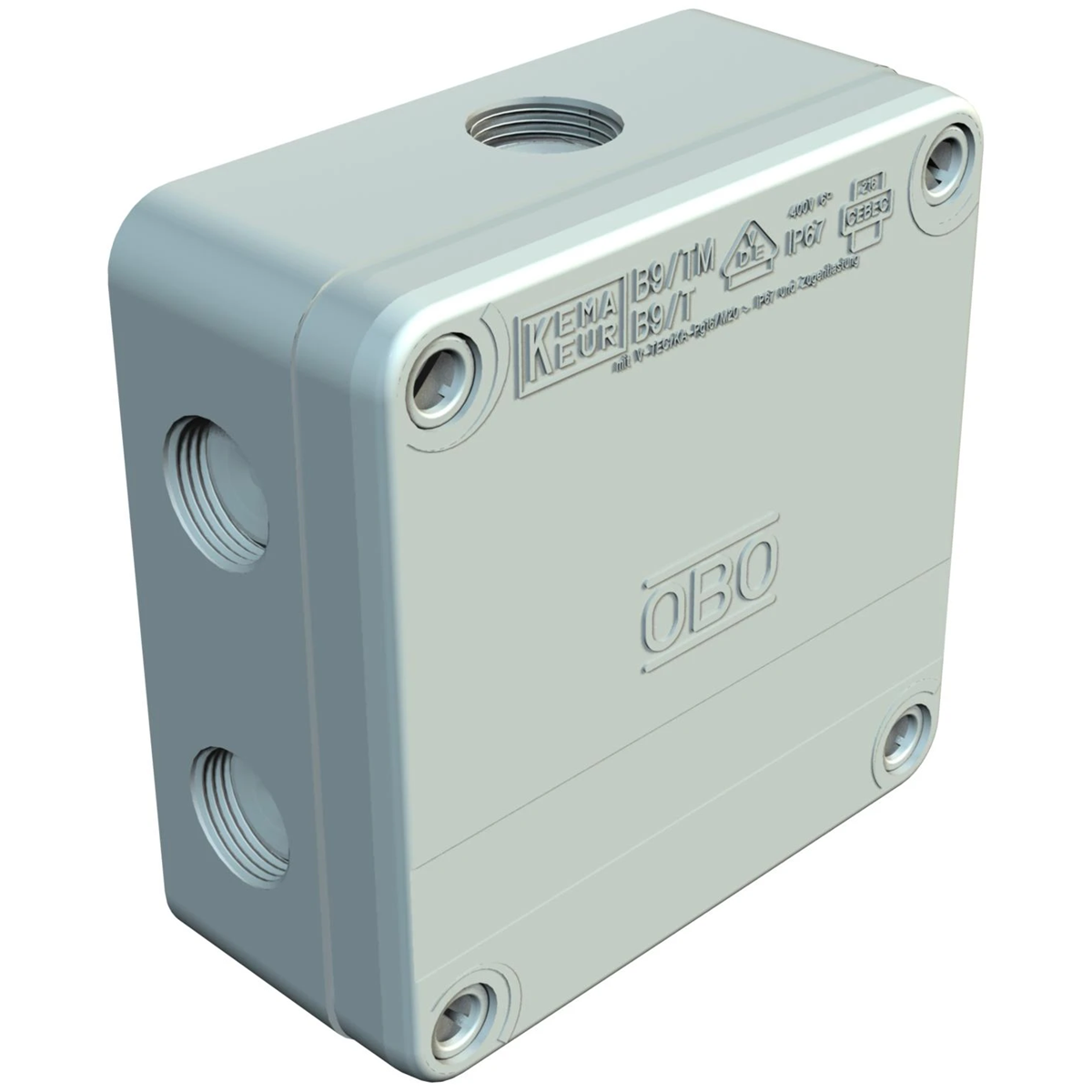

B 9/T Installation box with gland IP67 grey 2001861

local index:
MVN012OBOB
Catalog No:
2001861
EAN code:
4012195539896
Manufacturer: OBO BETTERMANN
Halogen free: Yes
Depth [mm]: 51
Color: Gray
Price:
8,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

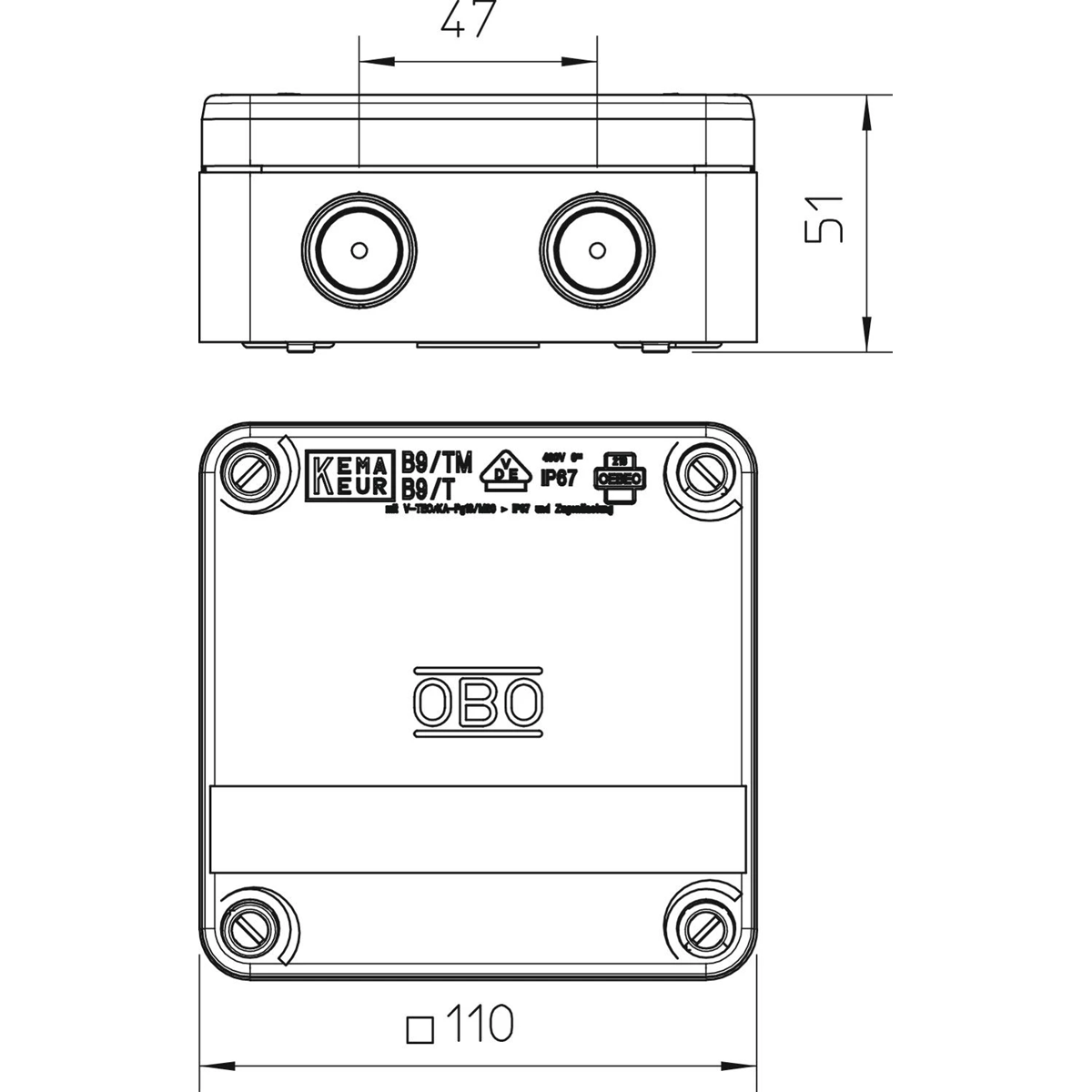

The hermetic junction box for wet rooms is made of two halogen-free plastic elements, 8 threaded entries (M20 x 1.5), additionally 1 entry from the bottom with a puncture membrane ( for cables up to 15 mm diameter). If cable glands are used (additional cable strain relief), membrane removal is not necessary (time saving). Degree of protection IP 67 with both pierced membrane and cable gland. Rated voltage 400V; Nominal cross-section 4 - 6 mm². The lid is sealed with 4 pre-assembled, non-lost fasteners (180°). Mounting holes in the bottom of the box are additionally covered with a soft plastic material, designed for screws with a dia. 5mm (75mm spacing). 2 fixing screw covers and 1 fixing screw. Internal dimensions: 98 x 98 x 40 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PP
  • Rated insulation voltage [V]
    400
  • Type
    Wall-mounted
  • Width [mm]
    110
  • Height [mm]
    110
  • Degree of mechanical protection
    IK06
  • Accurate color
    light gray
  • Fire resistance [°C]
    750
  • With terminal strip
    NO
  • Number of stuffing boxes
    3
  • PKWIU
    22.29.29.0
  • Depth [mm]
    51
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Level of security
    IP67
  • Type
    branching
  • Operating temperature range [°C]
    -5 to +60
  • Maximum conductor cross-section [mm²]
    4-6
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of slots
    9
  • Stuffing box type
    M20

Bulk packaging

A kind of package Skrzynia Karton Paleta
Quantity 5 pcs. 40 pcs. 720 pcs.
Weight (kg) 0,962 8,204 170,172
Volume (m3) 0,003 0,038 0,912
Width (m) 0,113 0,388 0,800
Length (m) 0,266 0,395 1,200
Depth (m) 0,113 0,249 0,950
