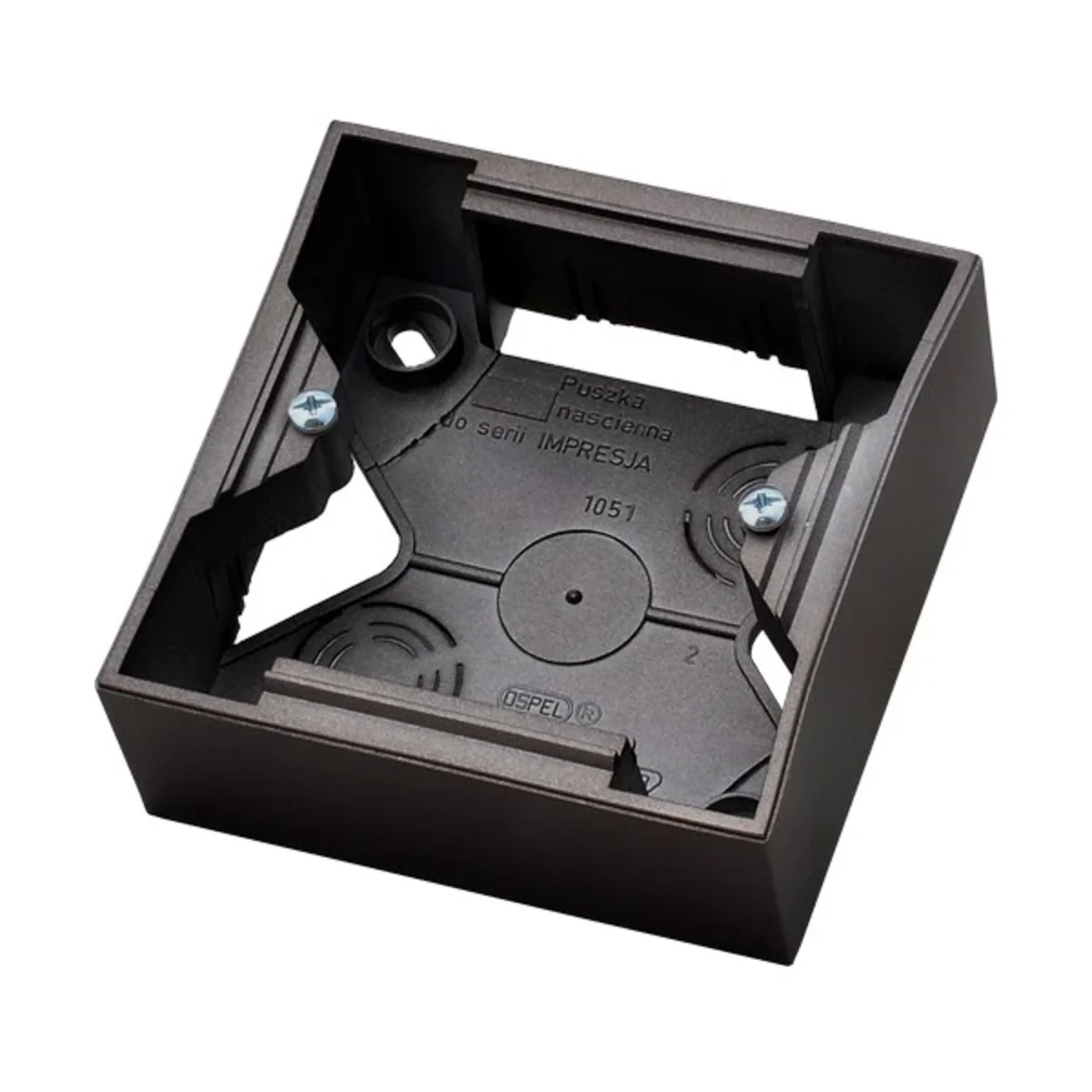

ARIA Single junction box black metallic PNP-1U/33

local index:
MVN003OSPE
Catalog No:
PNP-1U/33
EAN code:
5907577484712
Manufacturer: OSPEL
Depth [mm]: 36
Color: Black
Shape: Square
Price:
2,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single surface-mounted box from the Aria seriesallows you to transform any elements of the Aria series into a surface-mounted version.

The Aria series is a combination of modern design and perfect proportions. Internal  decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

The Aria series draws on aesthetics referring to timeless design solutions with a hint of modernity. The connectors in this line are neat, proportionate and designer. They can be personalized in a way by adding a decorative frame, as well as give them an original look as part of the aesthetic LED backlight or LTS. There are a variety of colors to choose from, thanks to which everyone can enjoy a unique decorative and utility accent in their own apartment.

Technical data

  • Depth [mm]
    36
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP20
  • Type
    For attachments
  • Number of bolts/screws
    2
  • Fire resistance
    Not applicable
  • Number of segments
    1
  • With terminal strip
    NO
  • Color
    Black
  • Material
    Plastic Metal
  • Cover
    NO
  • Family
    ARIA
  • Width [mm]
    82
  • Height [mm]
    82
  • Accurate color
    Black metallic
  • Mounting direction
    Universal
  • For modular equipment
    Not applicable
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    1
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Transparent
    No
  • With duct entry
    No
  • With screw gland entry
    No
  • Degree of protection (IP)
    IP20
  • Device height
    82 mm
  • Suitable for modular domestic switching devices
    Yes
  • Number of units
    1
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With cover frame
    No
  • With cable entry
    Yes
  • Shock resistant
    No
  • Device width
    82 mm
  • Device depth
    34 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
