A-SERIES A6 junction box without IP55 terminal block 2000001

Name: A-SERIES A6 junction box without IP55 terminal block
Brand: OBO BETTERMANN
SKU: MVN001OBOB
Price: 6.68 PLN
Availability: InStock

Indice locale:

MVN001OBOB

Numero di catalogo:

2000001

Codice EAN:

4012195917069

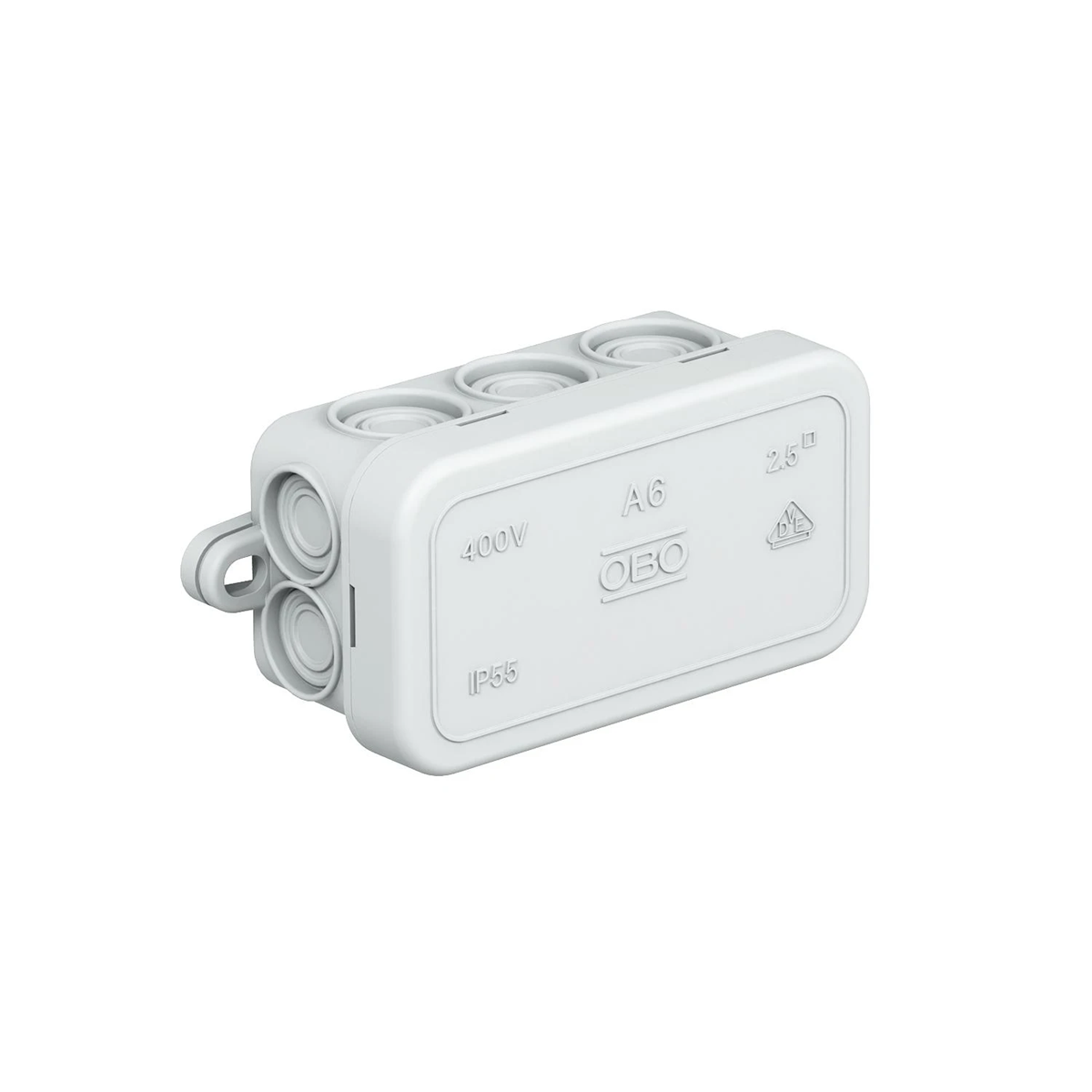

A-SERIES A6 junction box without IP55 terminal block

Clicca sulla foto per ingrandire

Produttore: OBO BETTERMANN

Halogen free: Yes

Depth [mm]: 36

Color: Gray

Vedi la descrizione completa

Prezzo:

6,68 zł

gross / pezzi

(inclusa IVA 23%)

Accessibile 1423 pezzi

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

A-series junction box with membrane glands.

Classic and updated: the well-known A-series boxes have been given a facelift. Halogen-free, thermoplastic material is the hallmark of the A-series - as well as the clamping cover and flexible cable entries. IP55 degree of protection and stable mounting brackets are a classic solution.

6 entries for cables with a diameter of 7 - 17 mm.
4 entries for cables with a diameter of 7 - 9 mm .

Dati tecnici

Halogen free

Yes
Color

Gray
Material

PE
Rated voltage [V]

400
Type

Wall-mounted
Level of security

IP55
Type

branching
Operating temperature range [°C]

-5 to +45
Maximum conductor cross-section [mm²]

2.5
Fire resistance

Not applicable
For modular equipment

Not applicable
Number of stuffing boxes

10
Groove diameter [mm]

5-14

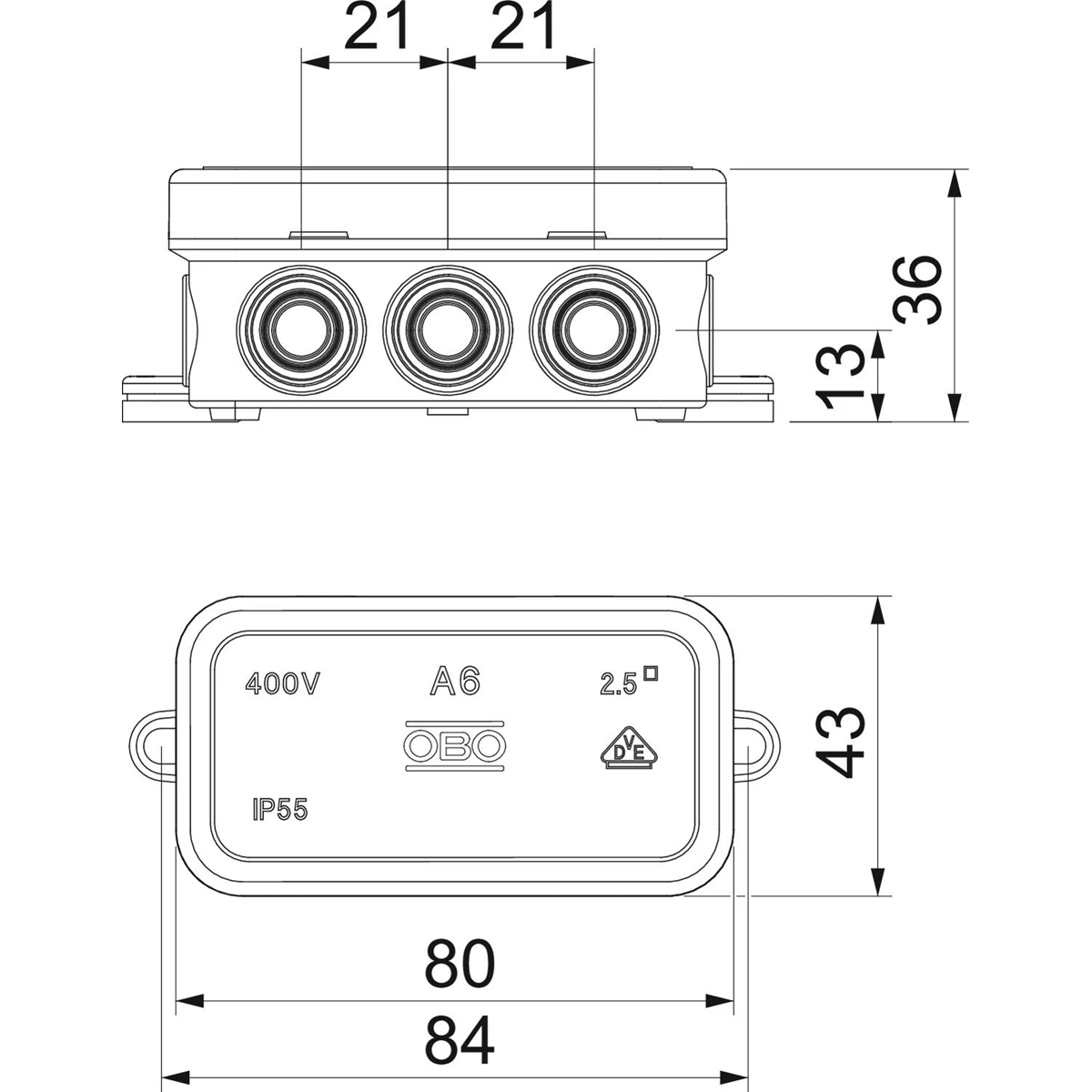

Depth [mm]

36
Shape

Rectangular
Installation

Surface-mounted
Cover

Yes
Family

A-SERIES
Width [mm]

80
Height [mm]

43
Degree of mechanical protection

IK07
Accurate color

light gray
Fire resistance [°C]

650
With terminal strip

NO
Stuffing box type

Membrane
PKWIU

22.29.29.0

Altri dati tecnici

Model

Junction box
Max. conductor cross section

2.5 mm²
Mounting method

Wall-/ceiling mounting
Mounting under water

No
Inlet from the rear

No
Width

43 mm
Tackable

Yes
Material

Plastic
Colour

Grey
Degree of protection (IP)

IP55
Transparent cover

No
Cover attachment

Snapped on
Sealable

No
Circuit integrity

None
Weatherproof

No
Explosion-tested version

No
For Ex-Zone dust

None

Equipped with

None
Shape

Square
Mounting in the soil

No
Number of inlets

10
Length

80 mm
Depth

36 mm
Type of housing feed-through

Preembossing
Halogen free

Yes
RAL-number (similar)

7035
Cover model

Blind cover
Castable

No
With casting compound

No
Rated insulation voltage Ui

690 V
With screening

No
Operating temperature

-5 ... 45 °C
For Ex-zone gas

None

Dettagli del produttore

Produttore

OBO Bettermann Holding GmbH & Co. KG
Indirizzo

58710 Menden Hüingser Ring 52 Niemcy
Email

oferty@obo.pl

Imballaggio sfuso

Una specie di pacchetto	Torebka	Karton	Paleta
Quantità	10 pezzi	180 pezzi	3600 pezzi
Peso (kg)	0,257	5,044	123,380
Volume (m3)	0,001	0,029	0,912
Larghezza (m)	0,090	0,360	0,800
Lunghezza (m)	0,215	0,420	1,200
Profondità (m)	0,074	0,195	0,950
