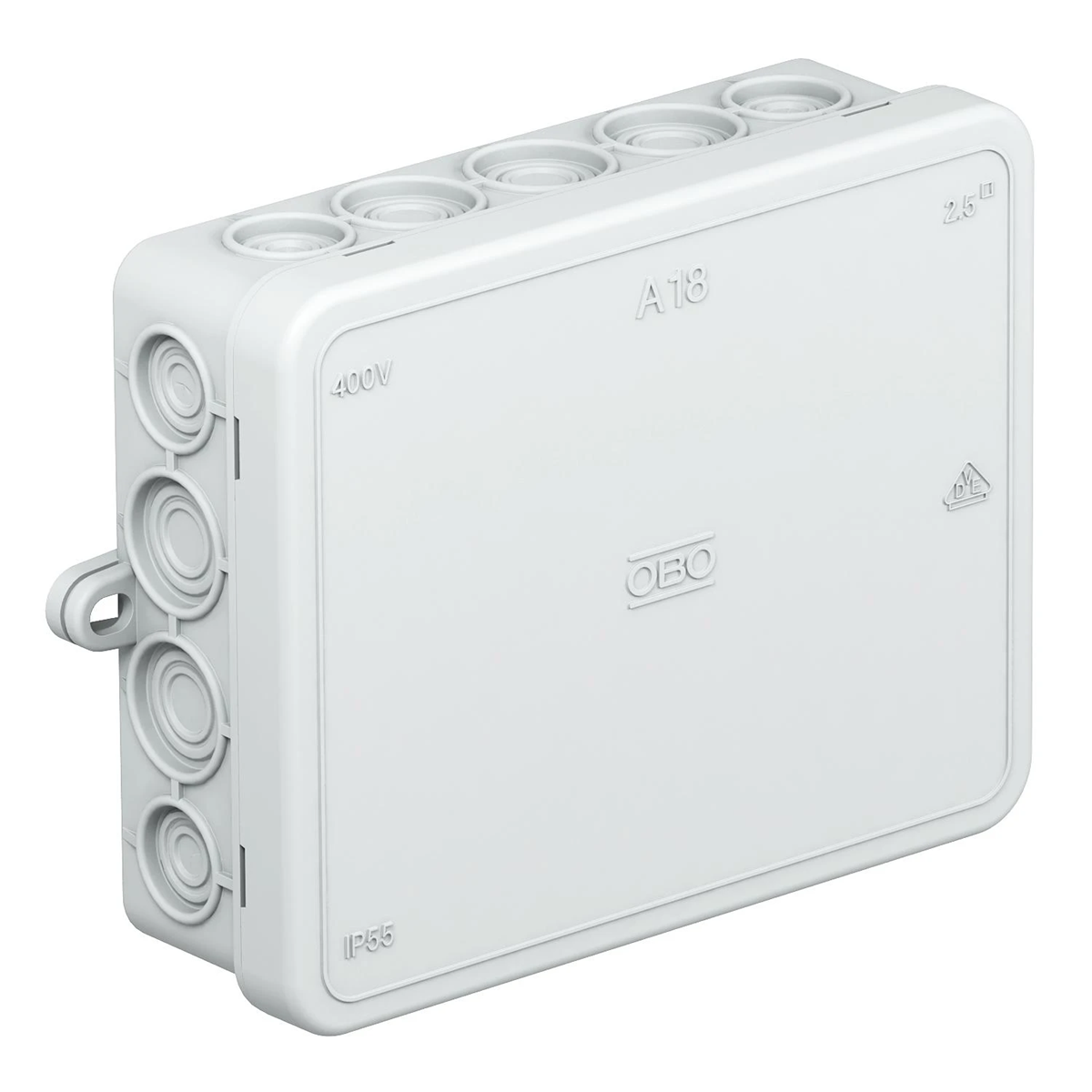

A-SERIES A18 junction box without IP55 terminal block 2000410

local index:
MVN007OBOB
Catalog No:
2000410
EAN code:
4012195917137
Manufacturer: OBO BETTERMANN
Halogen free: Yes
Depth [mm]: 40
Color: Gray
Price:
2,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A-series junction box with membrane glands.

Classic and updated: the well-known A-series boxes have been given a facelift. Halogen-free, thermoplastic material is the hallmark of the A-series - as well as the clamping cover and flexible cable entries. IP55 degree of protection and stable mounting brackets are a classic solution.

  • 10 entries for cables with a diameter of 5 - 14 mm.
  • 8 entries for cables with a diameter of 5 - 11 mm.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PE
  • Rated voltage [V]
    400
  • Type
    Wall-mounted
  • Level of security
    IP55
  • Type
    branching
  • Operating temperature range [°C]
    -5 to +45
  • Maximum conductor cross-section [mm²]
    2.5
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    18
  • Groove diameter [mm]
    5-11 5-14
  • Depth [mm]
    40
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Family
    A-SERIES

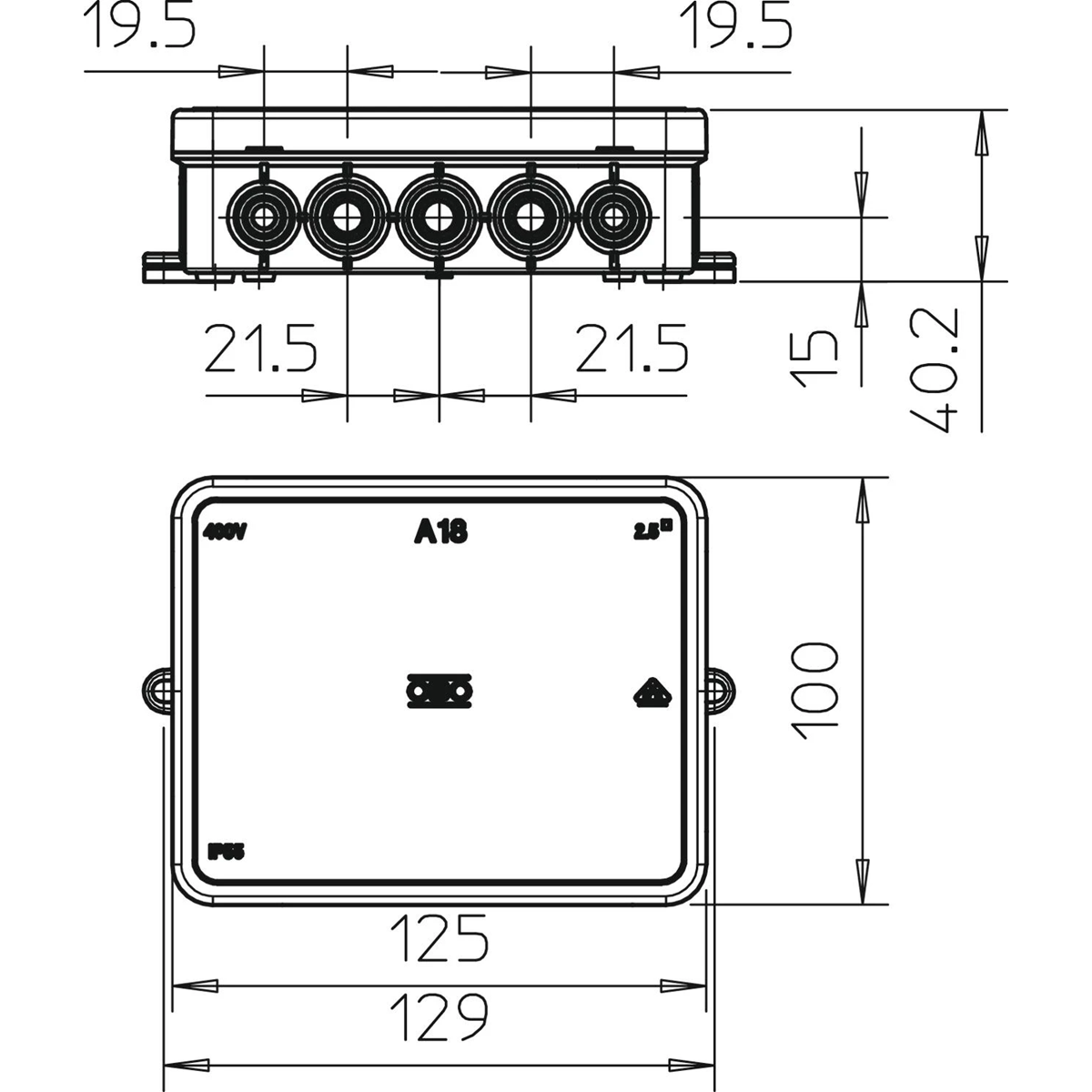

  • Width [mm]
    125
  • Height [mm]
    100
  • Degree of mechanical protection
    IK07
  • Accurate color
    light gray
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • Stuffing box type
    Membrane
  • PKWIU
    22.29.29.0

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 10 pcs. 90 pcs. 900 pcs.
Weight (kg) 0,697 7,107 93,570
Volume (m3) 0,005 0,056 0,912
Width (m) 0,110 0,355 0,800
Length (m) 0,625 0,425 1,200
Depth (m) 0,080 0,372 0,950
