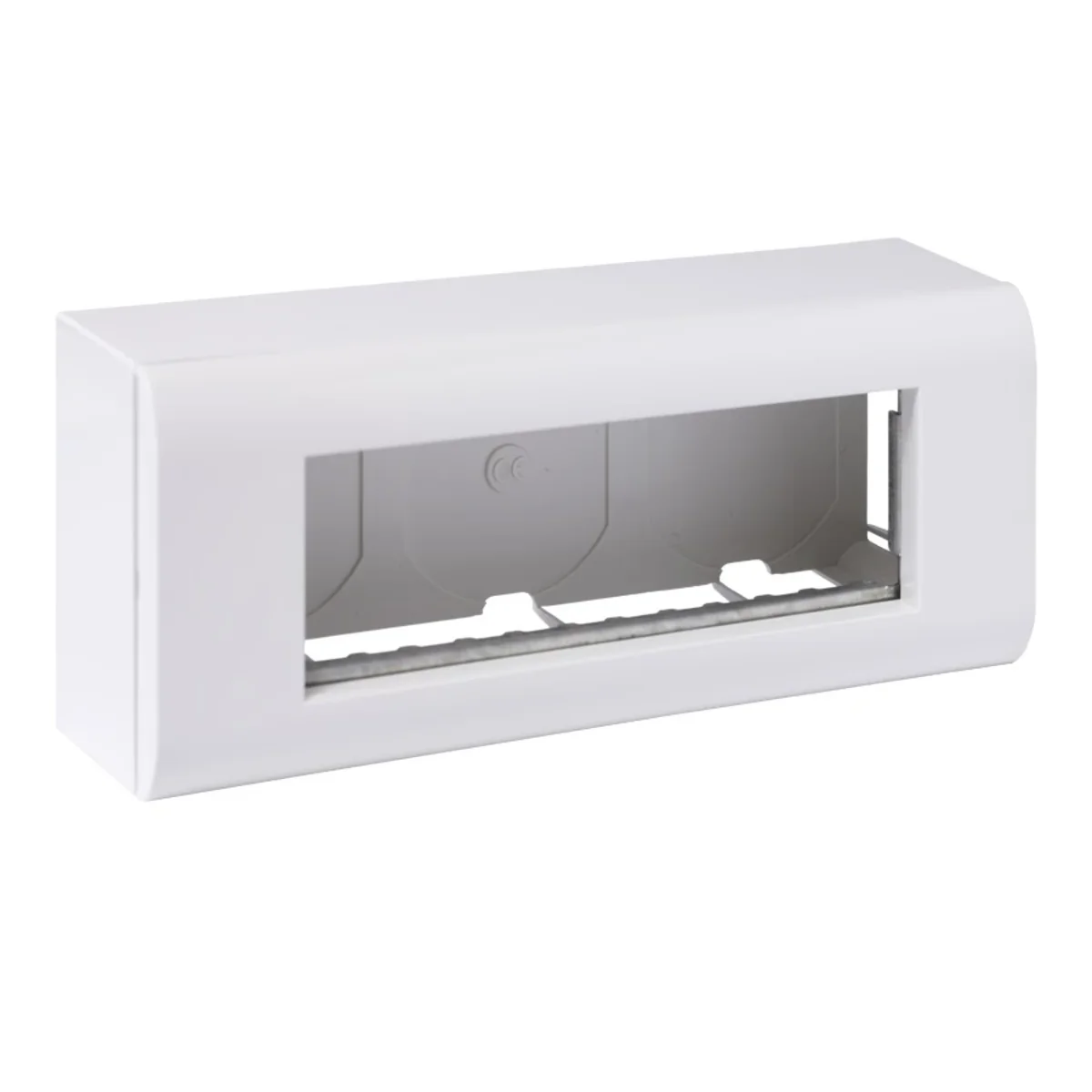

6-module surface-mounted housing OBUK-6/M

local index:
MVN002EMSO
Catalog No:
OBUK-6/M
EAN code:
5906764101463
Manufacturer: EMITER
Depth [mm]: 40
Color: White
Shape: Square
Price:
6,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

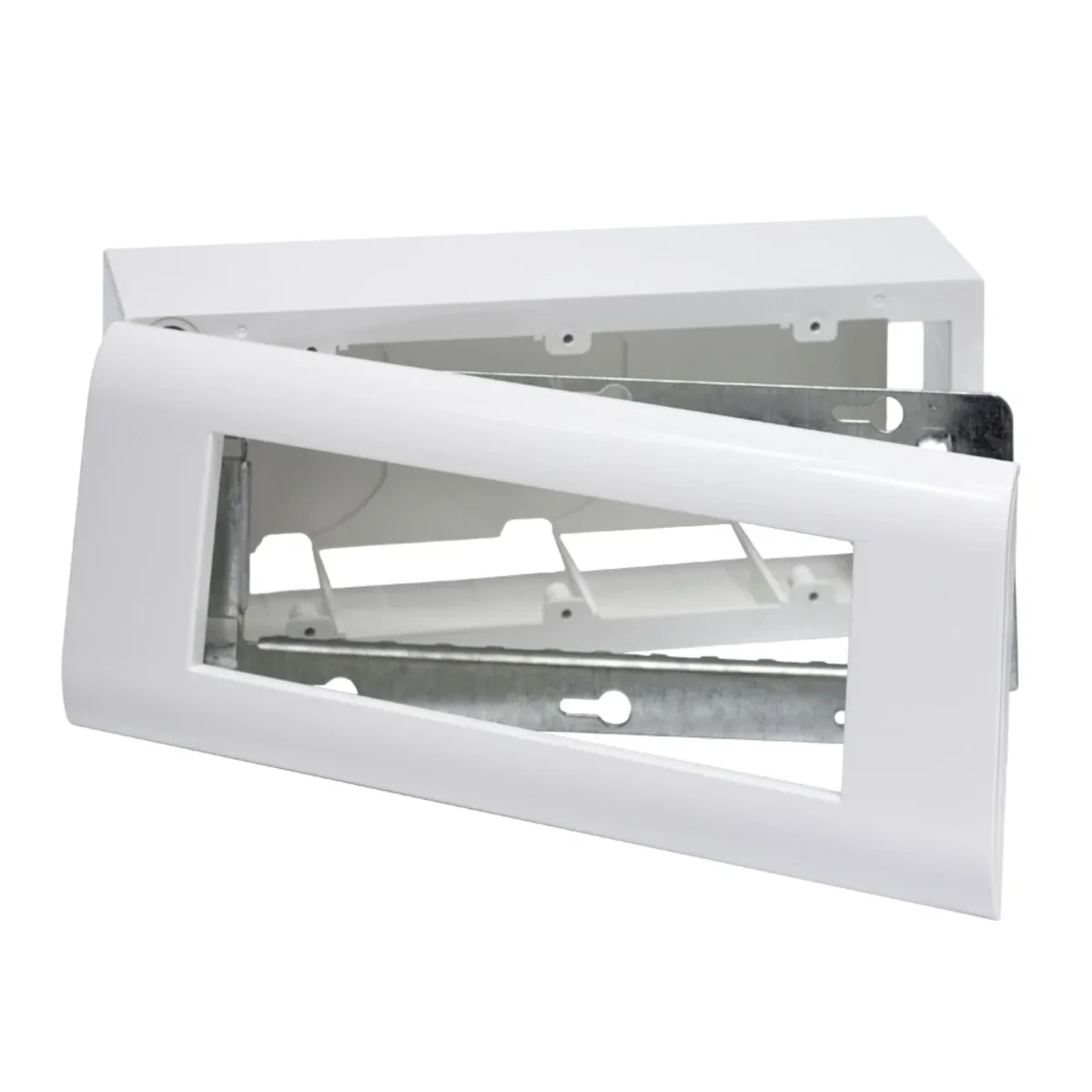

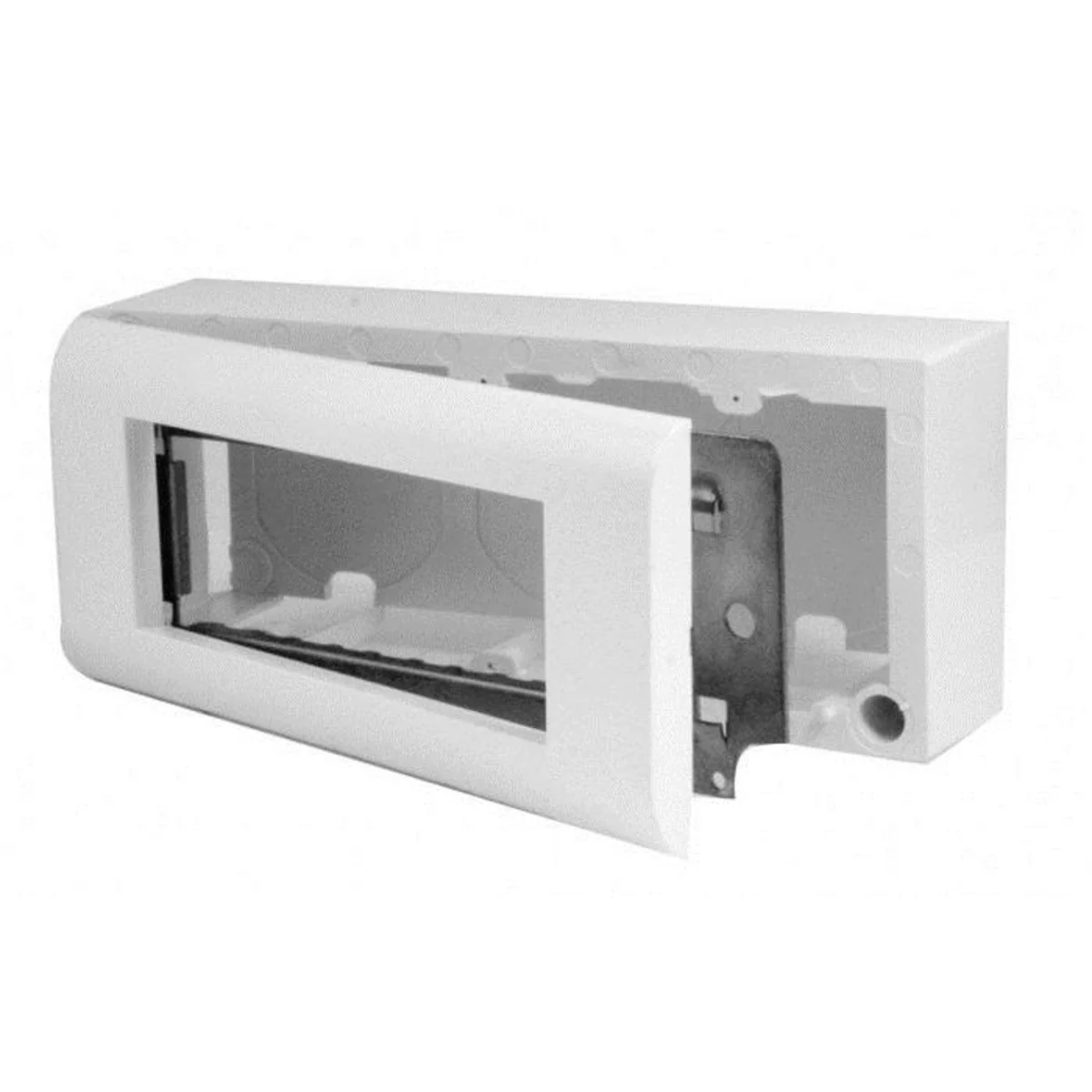

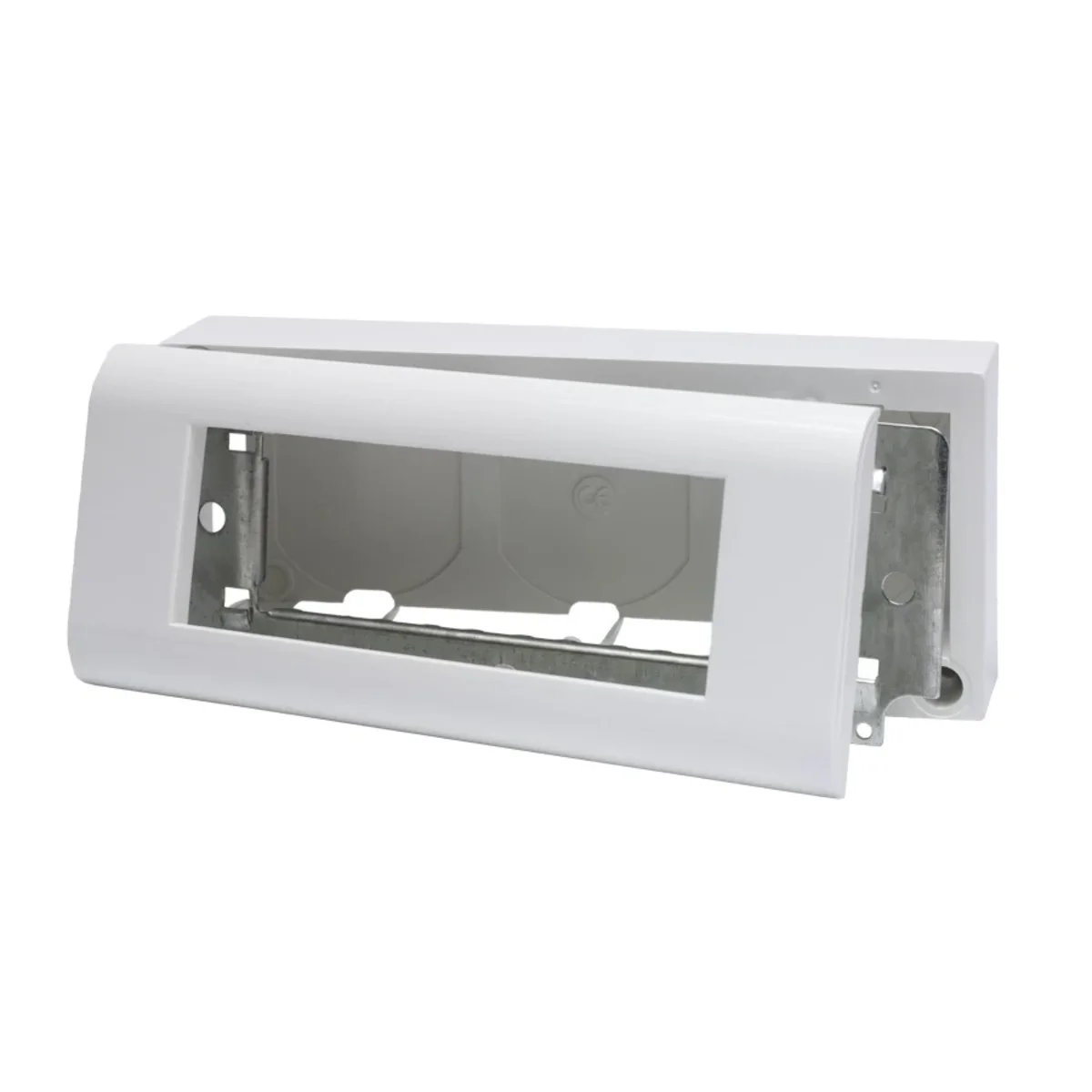

Surface-mounted enclosures are designed for mounting electrical and ICT equipment in the mosaic 45x45 standard. Sockets in the 60mm standard can be mounted only in a 2-module enclosure (OBUK-2/M), after replacing the screws with screws with flat heads, however, attention should be paid to matching the frame from the accessories to the wall-mounted housing. The set includes: surface-mounted housing (OBU), mounting bracket (SUP), masking frame (RAM). It allows you to create an electrical-logic point (PEL).

In the selected place, using the guides, cut a hole in the side wall of the box. If necessary, install a connector (E K/PU) connecting the box with the duct. Then screw the mounting bracket (SUP), press the 230V network socket or RJ45 computer socket and close the RAM masking frame.

Technical data

  • Depth [mm]
    40
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • For modular equipment
    MOSAIC
  • Color
    White
  • Material
    ABS Metal
  • Cover
    NO
  • Width [mm]
    195
  • Height [mm]
    82
  • Number of segments
    6
  • With terminal strip
    NO

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    6
  • Material
    Plastic
  • Halogen free
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9003
  • With cover frame
    Yes
  • With cable entry
    Yes
  • Device width
    82 mm
  • Device depth
    40 mm
  • Suitable for modular domestic switching devices
    Yes
  • Mounting direction
    Horizontal and vertical
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With duct entry
    No
  • With screw gland entry
    No
  • Device height
    195 mm
