4-inlet surface-mounted box with knockouts 88x88x40mm IP44 cover for 4 screws with terminals black 074-55

local index:
MVN087VIPL
Catalog No:
074-55
EAN code:
5906365203948
Manufacturer: VIPLAST
Depth [mm]: 40
Color: Black
Shape: Square
Price:
2,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

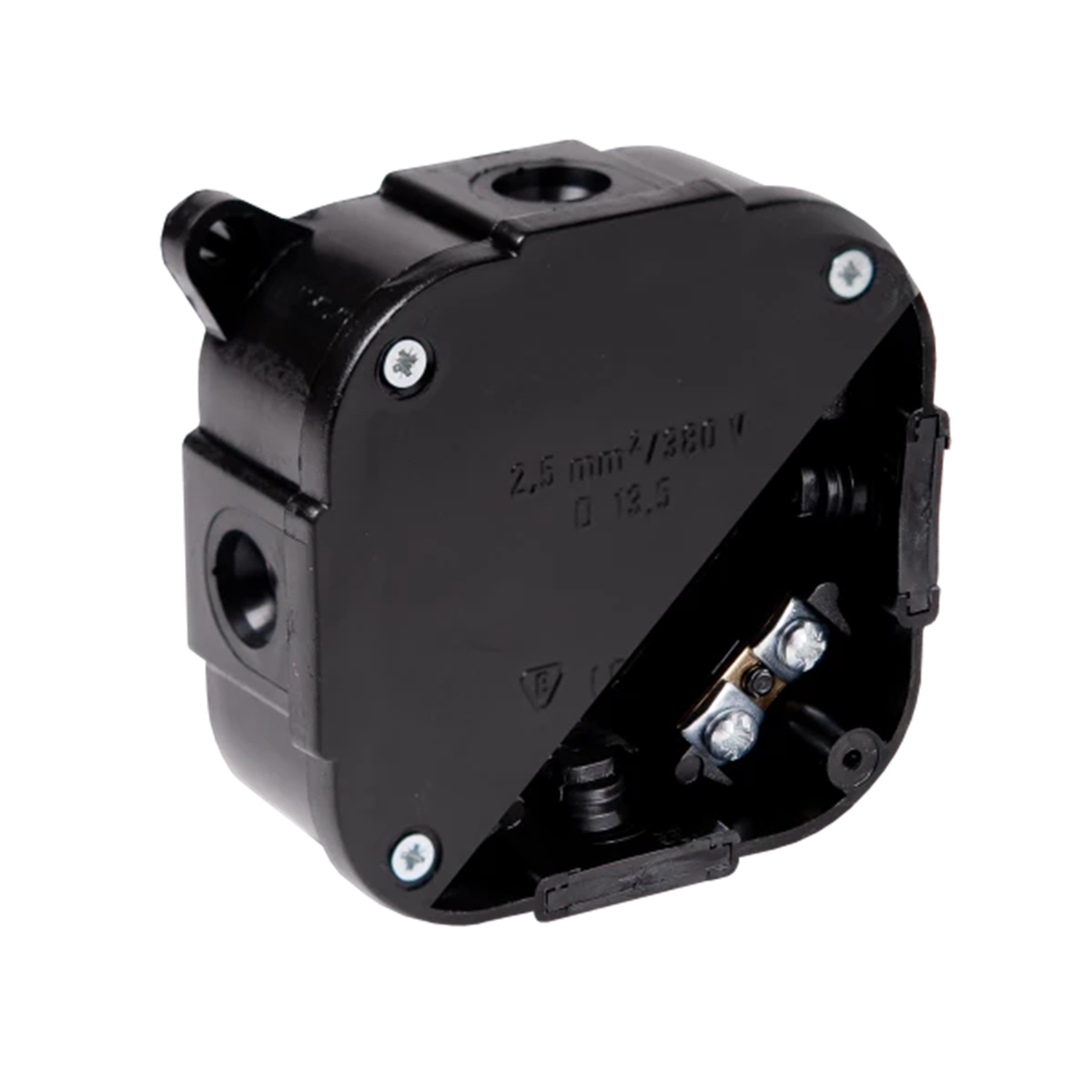

Surface-mounted box, size 88x88x40mm, with IP44 protection, 4-inlet with knockouts; threaded glands can be used. It is equipped with a cover for 4 screws and 1-4mm² terminals. In black.

Technical data

  • Depth [mm]
    40
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Level of security
    IP44
  • Type
    branching
  • Degree of mechanical protection
    IK07
  • For modular equipment
    Not applicable
  • Number of slots
    4
  • Color
    Black
  • Material
    PP PVC
  • Rated voltage [V]
    400
  • Type
    Wall-mounted
  • Width [mm]
    88
  • Height [mm]
    88
  • Fire resistance
    Not applicable
  • With terminal strip
    Yes
  • Terminals [mm²]
    1-4
