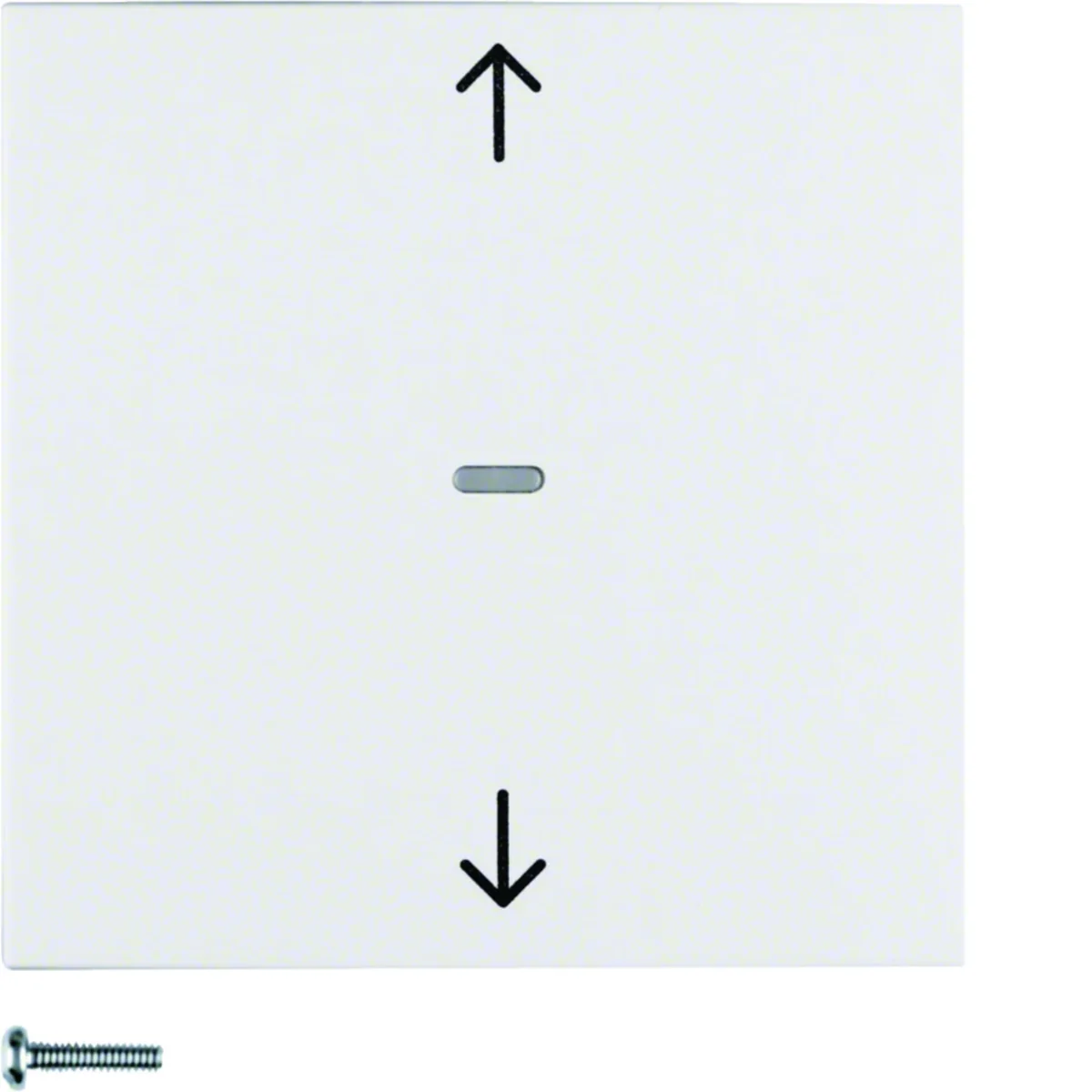

KNX RF QUICKLINK S.1/B.3/B.7 Blind button for blind controller and power supply mechanism white 85245288

Blind button for blind controller and Berker.Net power supply mechanism, KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.

Features:

• "party" function, automatic commands , radio and extension commands are not executed (block)
• transmitter and/or receiver functions can be configured
• memory function for automatic execution of stored lifting and lowering times with position
< li> reset function (to factory settings) ;
• ability to save the position of the slats for a given scene
• recalling scenes using KNX radio devices
• quicklink functions: blinds, 2 scenes, memory, forced control, push button up/down

Controls and indicators:

• activation of "party function" ” by pressing the scroll button up and down > 20 s
• with configuration and function button

Detection

• sun protection and twilight function in combination with a radio illuminance sensor

LED control:

• with red/ amber status LED for memory and party functions
• with configuration and function LED
• with status LED for door lock protection
• indicator Cap and mechanism compatibility LED

Connection:

• integration with KNX-TP system via KNX radio network/TP surface-mounted gateway< /li>

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
