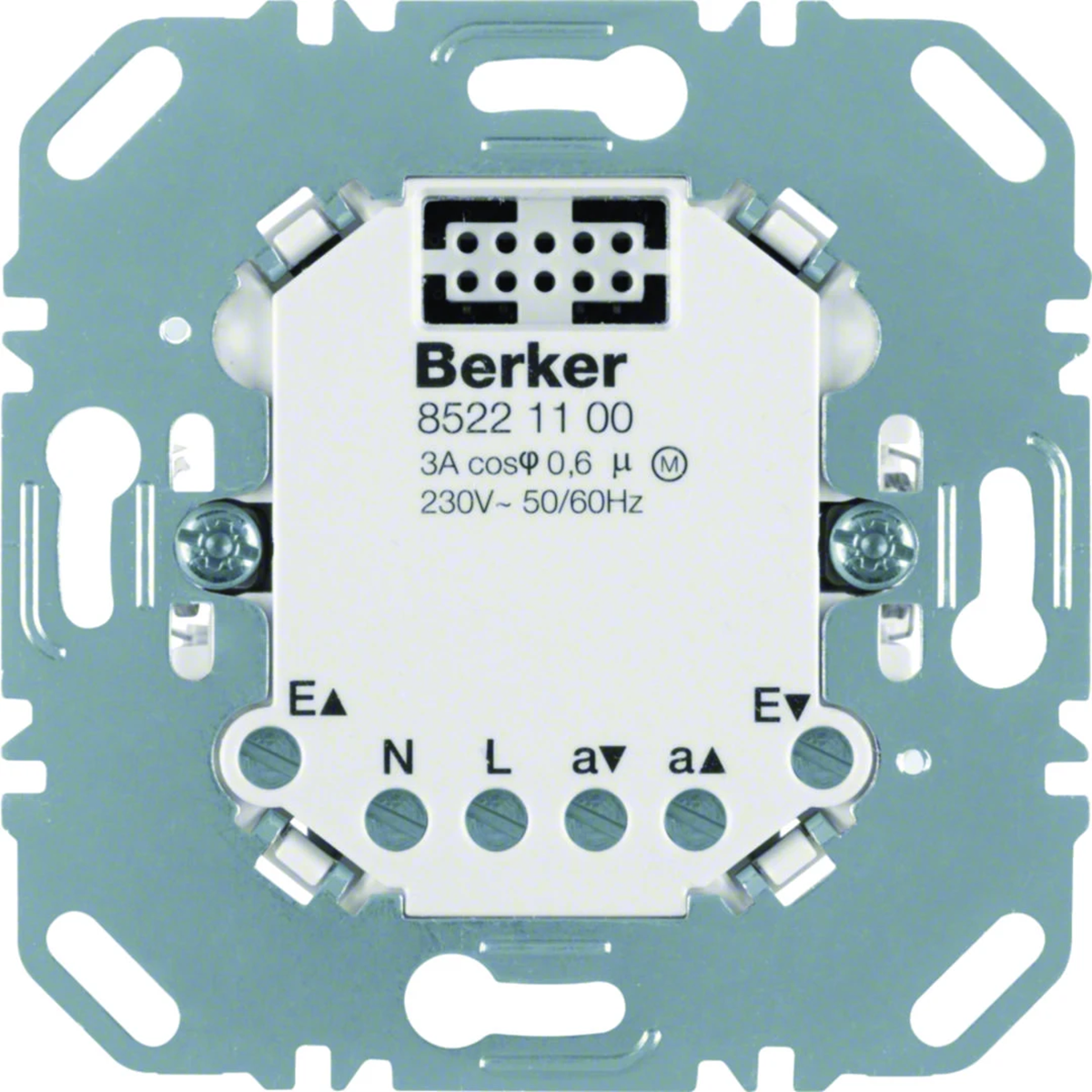

Comfort shutter controller 85221100

local index:
MWW010BERK
Catalog No:
85221100
EAN code:
4011334375906
Manufacturer: BERKER
Rated voltage [V]: 230
Price:
81,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Comfort shutter controller

Product features:

  • low power consumption ;renegrii
  • with 2 mechanically interlocking normally open contacts
  • with 230V extension inputs for up/down control
  • for individual control , group or central
  • no conductive connection between expansion lugs and support ring
  • with screw terminals



Technical parameters:

operating voltage 230V; 50/60 Hz

power consumption (standby) < 0.1W

time of switching the direction of travel < 0.6sec

switching current for cos fi = 0.6 max. 3A

operating temperature -5 - +45°C

unlimited number of control extensions

Length of extension cables 50m

Length of load cables max. 100m

Installation depth 22mm

Installation depth for expansion lugs 32mm

Neutral cable required!

Technical data

  • Rated voltage [V]
    230
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element
  • Suitable for wind sensor
    Yes
  • With glass breaking detector connection
    No
  • Substation input
    Yes
  • Twilight value adjustable
    0 ... 0 lx
  • Switch-off protection
    No
  • Halogen free
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Autonomy
    0 h
  • Frequency
    50 ... 60 Hz
  • Integrated timer
    No
  • Suitable for rain sensor
    Yes
  • With Astro program
    No
  • With memory function
    Yes
  • Random generator
    No
  • Mounting method
    Flush-mounted
  • Transparent
    No
  • Max. switching power
    2300 W
  • Nominal voltage
    230 V
  • Type of fastening
    Mounting with claw

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,070 0,110 4,350 164,200
Width (m) 0,071 0,085 0,300 0,800
Length (m) 0,034 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
