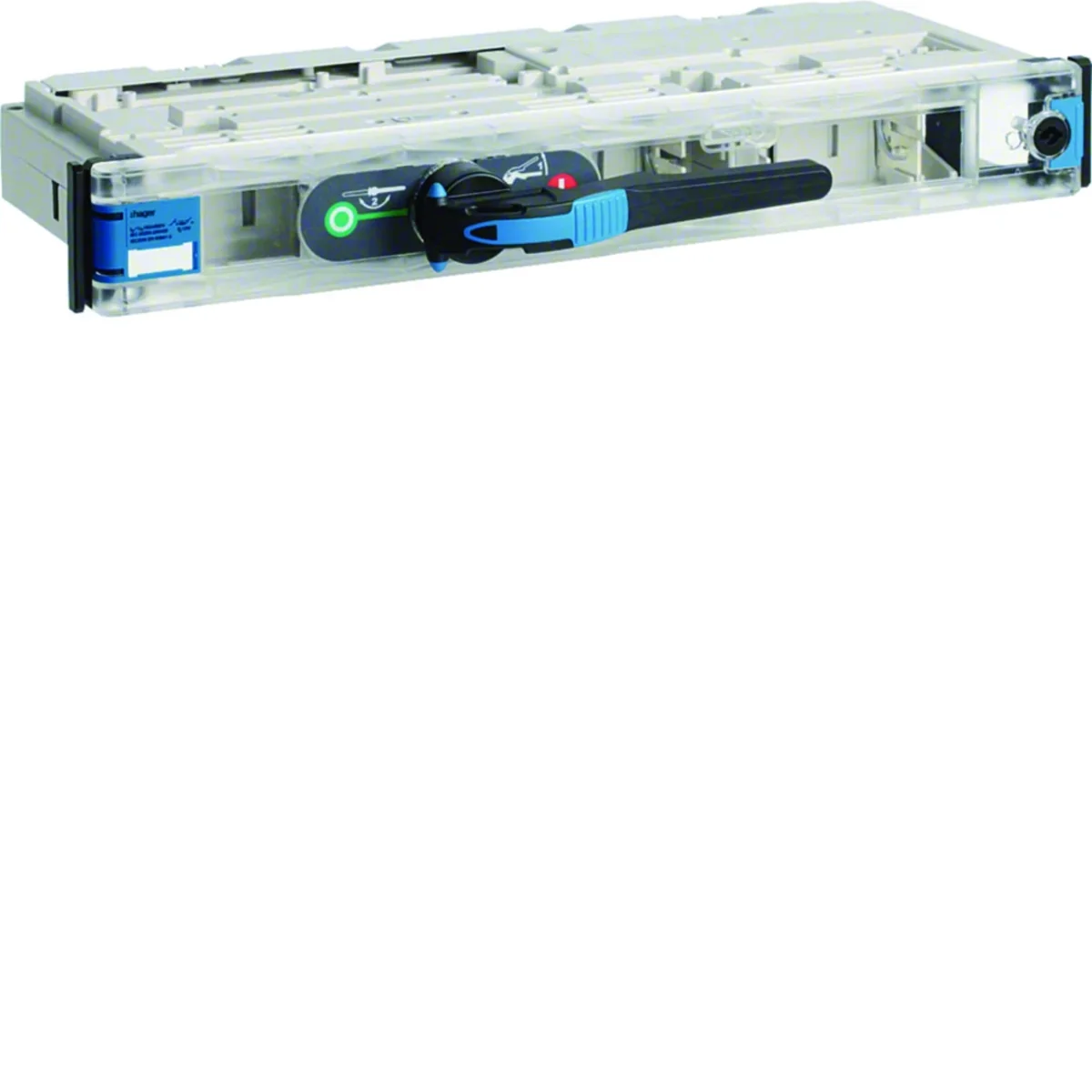

LLD-1 Horizontal 3-phase switch disconnector with fuses 250/5A NO/NC SKL right 3-pole AC22B LLD120
local index:
ALB069HAGE
Catalog No:
LLD120
EAN code:
4049857141197
Price:
935,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch disconnector with LL series fuses:
- horizontal
- group 1,
- NO/NC,
- SKL strip,
- 3-phase,
- right outflow,
- AC22B.
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]15
-
FamilyLL
-
Connection typeVice
-
Height [mm]74.5
-
Mechanical durability (number of cycles)1400
-
Fuse link rated current [A]0/250
-
storage temperature [°C]from -25 to 55
-
Wire cross-section (cord) [mm²]95
-
PKWIU27.12.23.0
-
Number of poles3
-
Rated insulation voltage [V]1000
-
power loss [W]82
-
Fuse link sizeNH1
-
Electrical endurance (number of cycles)200
-
Rated switching voltage [V]0/400
-
Conventional short-circuit current [kA]55
-
Rated surge voltage [V]8000
-
Conductor cross-section (wire) [mm²]95
Other technical data
-
Version as main switchNo
-
Max. rated operation voltage Ue AC400 V
-
Rated operation power at AC-23, 400 V0.082 kW
-
Rated short-time withstand current lcw55 kA
-
Number of poles3
-
Type of electrical connection of main circuitCable clamp
-
Equipped with connectorsYes
-
Suitable for front mountingNo
-
Type of control elementLong turning handle
-
Motor drive optionalNo
-
Version as emergency stop installationNo
-
Version as safety switchNo
-
Rated permanent current Iu250 A
-
Conditioned rated short-circuit current Iq55 kA
-
Suitable for fusesNH1
-
With error protectionNo
-
Cable entrySide
-
Suitable for floor mountingNo
-
Suitable for busbar mountingYes
-
Position control elementFront side
-
Motor drive integratedYes
-
Degree of protection (IP), front sideIP40
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 26 pcs. |
| Weight (kg) | 7,520 | 7,520 | 220,520 |
| Width (m) | 0,280 | 0,400 | 0,800 |
| Length (m) | 0,075 | 0,090 | 1,320 |
| Depth (m) | 0,590 | 0,680 | 1,200 |
