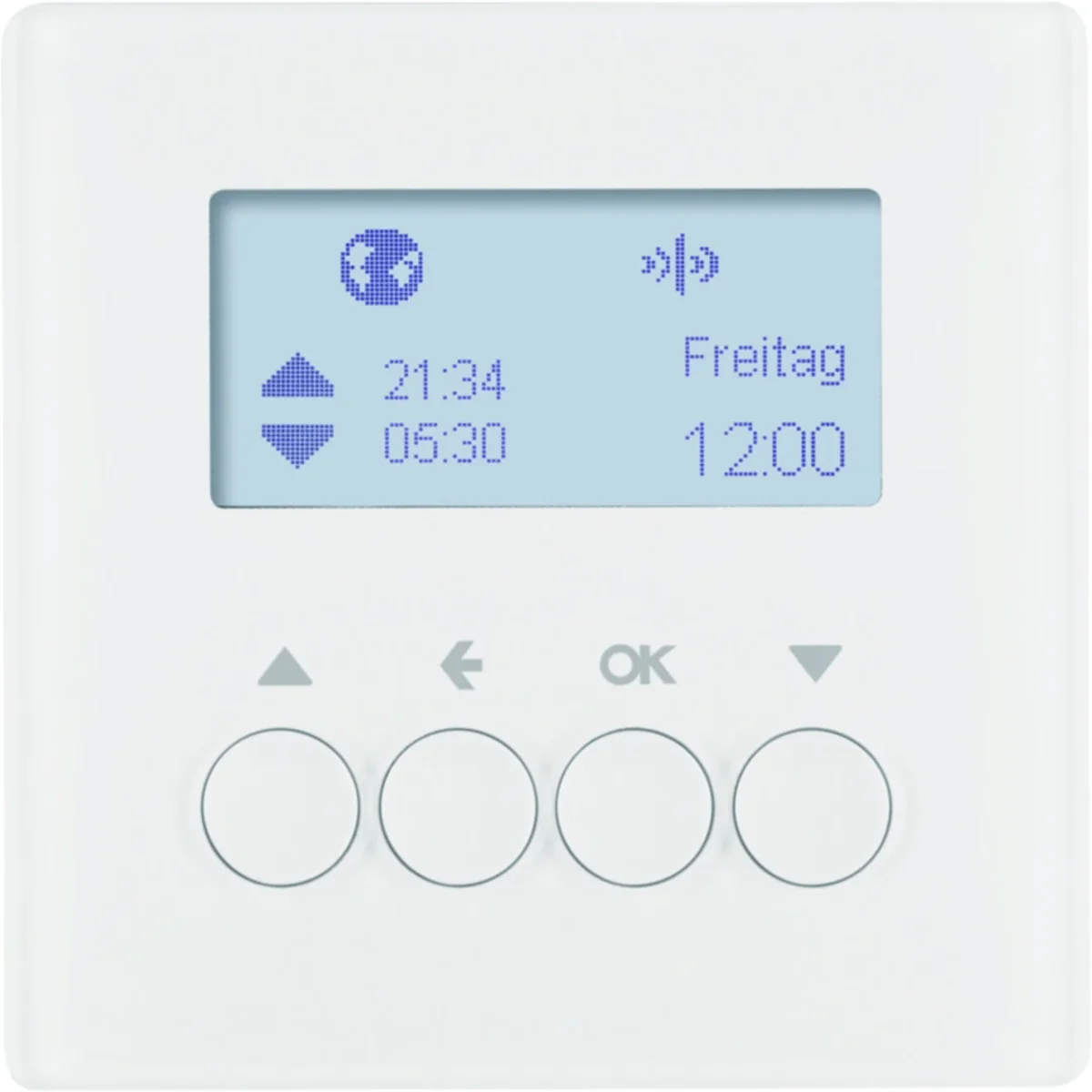

KNX RF QUICKLINK Q.1/Q.3 Blind time switch, white 85745129

Louver time switch from the KNX RF quicklink series. Main design line: Berker Q.1/Q.3.

Functions:

• additional ETS functions: +6 scenes, work mode, status indicator, 2x alarm
• reset function (factory settings)
• with button lock
• party function, automatic commands, radio commands and extension commands no are executed (blocked)
• option to configure the functions of the transmitter and/or receiver;
• option to remember the position of the slats for a given scene
• recalling scenes using KNX radio devices< /li>
• quicklink functions for including single, group and central control of blinds/roller shutters into the system
• quicklink functions: blinds, 2 scenes, forced control, up/down button switch
• manual/auto switching

Controls and indicators:

• indicate cap/mechanism compatibility on display
• adjustable LCD contrast
• backlit LCD display

Detection:

• protection sun protection and twilight function in combination with a radio illuminance sensor

Connection:

• integration with the KNX-TP system via the network KNX radio / TP surface-mounted gateway

Settings:

• with automatic winter/summer time changeover (can be disconnected)
• astronomical program for switching at sunrise/sunset with the possibility of entering the city/country and individual adjustment
• commands of standalone programs sent via radio and from extensions are not implemented
• program causing accidental selection of travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
