el12 Automation Relays and drivers KNX/EIB controllers and relays
el12 sale El12 and HAGER

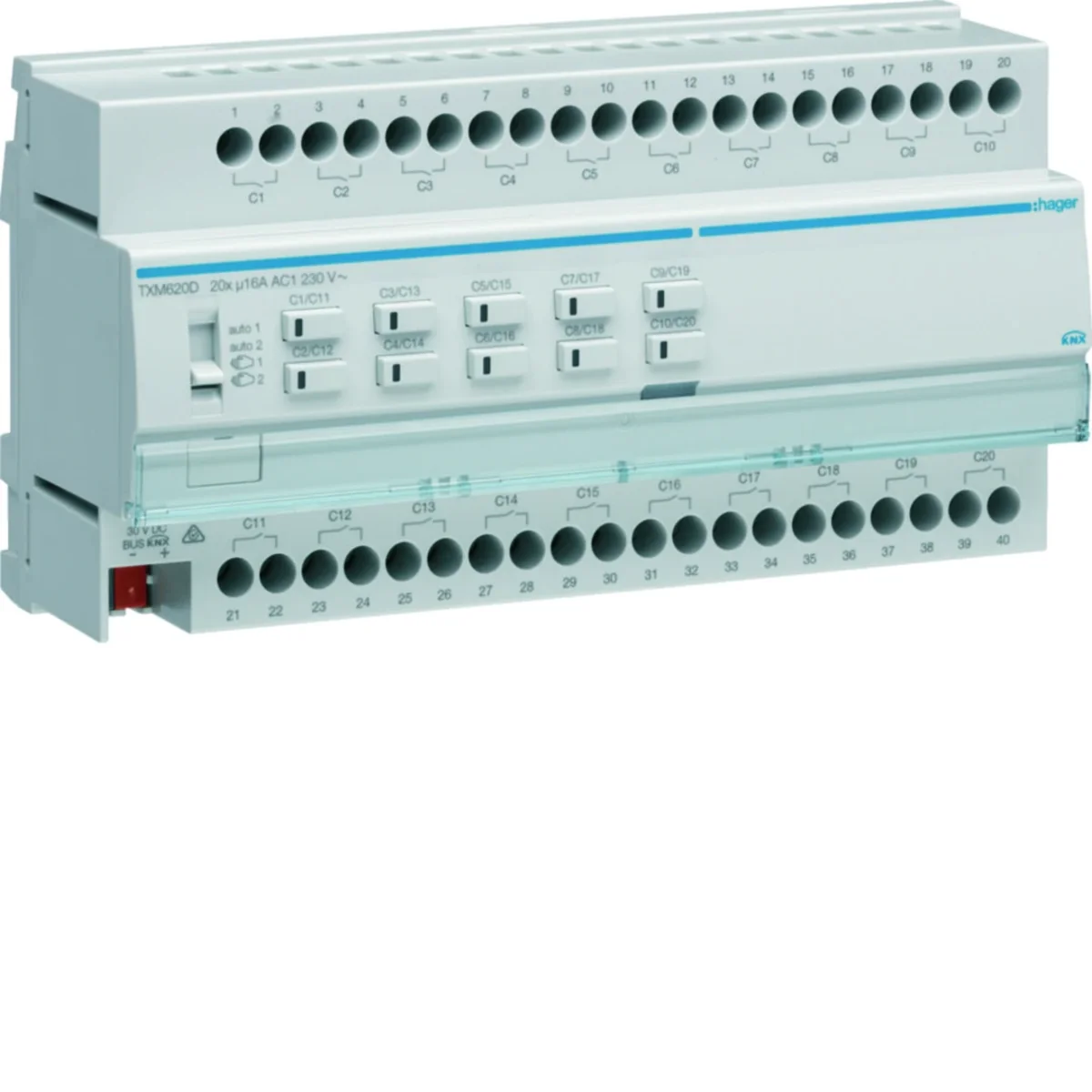

Switch/blind controller 20/10-gang 16A C-load, 8 mod, KNX easy TXM620D

local index:
AIK090HAGE
Catalog No:
TXM620D
EAN code:
3250616048782
Switch/blind controller 20/10-gang 16A C-load, 8 mod, KNX easy
Switch/blind controller 20/10-gang 16A C-load, 8 mod, KNX easy

Click on the photo to enlarge

Manufacturer: HAGER
Color: Gray
Rated current [A]: 16
Contact type: 20F
See full description
Price:
821,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Switch/blind controller 20/10-gang 16A C-load, 8 mod, KNX easy

Technical data

  • Color
    Gray
  • Contact type
    20F
  • power loss [W]
    1.3
  • Operating temperature range [°C]
    from -5 to 45
  • Rated output voltage [V]
    230
  • Accurate color
    light gray
  • Maximum bulb power [W]
    2300
  • Operating voltage via DC bus [V]
    21 - 32
  • Connection type
    With screw terminals
  • Beacon
    Yes
  • Electronic transformers [W]
    1500
  • Number of outputs
    20
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Rated current [A]
    16
  • Level of security
    IP20
  • Connection type
    With a screw
  • Rated switching voltage [V]
    230
  • Number of modules
    10
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    16
  • Bus current consumption (data transmission) [mA]
    5
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Conventional transformers [VA]
    1500
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    10
  • With LED indication
    Yes
  • Output power
    2300 W
  • Max. number of switching contacts
    20
  • Rated current
    16 A
  • Different phases connectable
    Yes
  • Bus module detachable
    No
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    DRA (DIN-rail adapter)
  • Local operation/hand operation
    Yes
  • Max. switching power
    28750 W
  • Suitable for C-load
    Yes
  • Max. switching current
    16 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    Yes
  • Modular expandability
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,616 0,700 8,400 226,600
Width (m) 0,097 0,100 0,315 0,800
Length (m) 0,082 0,080 0,235 1,050
Depth (m) 0,226 0,225 0,365 1,200
