el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic
el12 Electrical equipment Sockets Electric sockets
el12 sale El12 and HAGER

SYSTO Through-socket with grounding 2P+E self-locking 3 modules 16A/230V red WS121R

local index:
MGE104TEHA
Catalog No:
WS121R
EAN code:
3250617110921

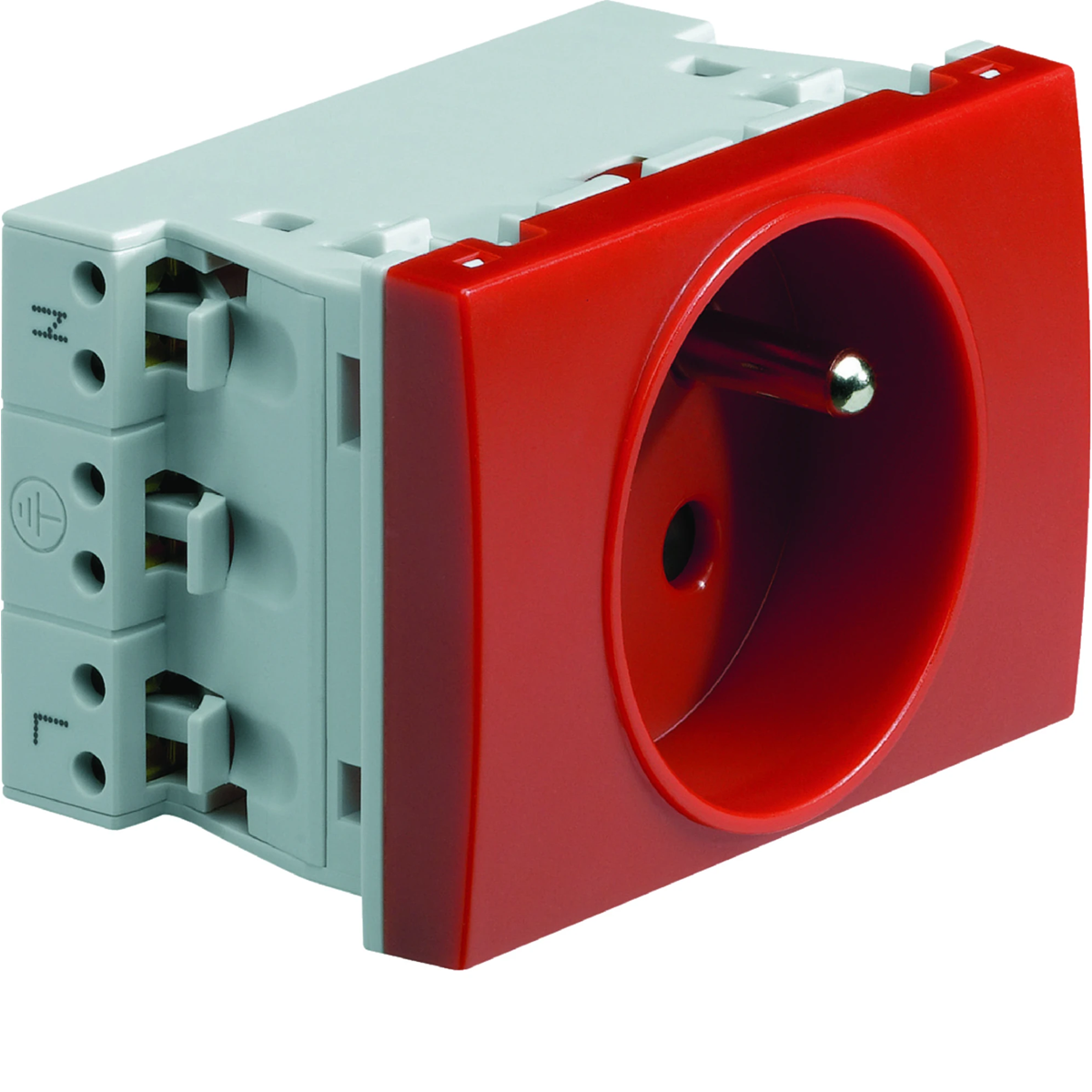

SYSTO Through-socket with grounding 2P+E self-locking 3 modules 16A/230V red
SYSTO Through-socket with grounding 2P+E self-locking 3 modules 16A/230V red

Click on the photo to enlarge

Manufacturer: TEHALIT
Depth [mm]: 43.5
Number of sockets: 1
Number of modules: 3
See full description
Price:
21,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electric socket of the systo series. The product part number is WS121R.



FEATURES

  • 2P+Z.
  • Through-hole.
  • Grounded ; ground pin.
  • Self clamps.
  • 3 modules.
  • Color red< /strong>.
  • Rated current 16A.
  • Rated voltage 230V.
  • Phase branch:  L1.



SERIES DESCRIPTION

systo is a series of electrical installation equipment that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    43.5
  • Number of modules
    3
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP2X
  • Type
    45x45
  • Ground
    Hurt
  • Surface finish
    matte
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Color
    Red
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    67.5
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    3
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Red
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    67.5 mm
  • Device depth
    43.5 mm
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    3020
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 20 pcs. 120 pcs. 2880 pcs. 20 pcs. 120 pcs. 2880 pcs.
Weight (kg) 1,312 8,308 222,392 1,312 8,308 222,392
Width (m) 0,240 0,321 0,800 0,240 0,321 0,800
Length (m) 0,054 0,252 1,158 0,054 0,252 1,158
Depth (m) 0,287 0,369 1,200 0,287 0,369 1,200

Files to download

WS121R.pdf
