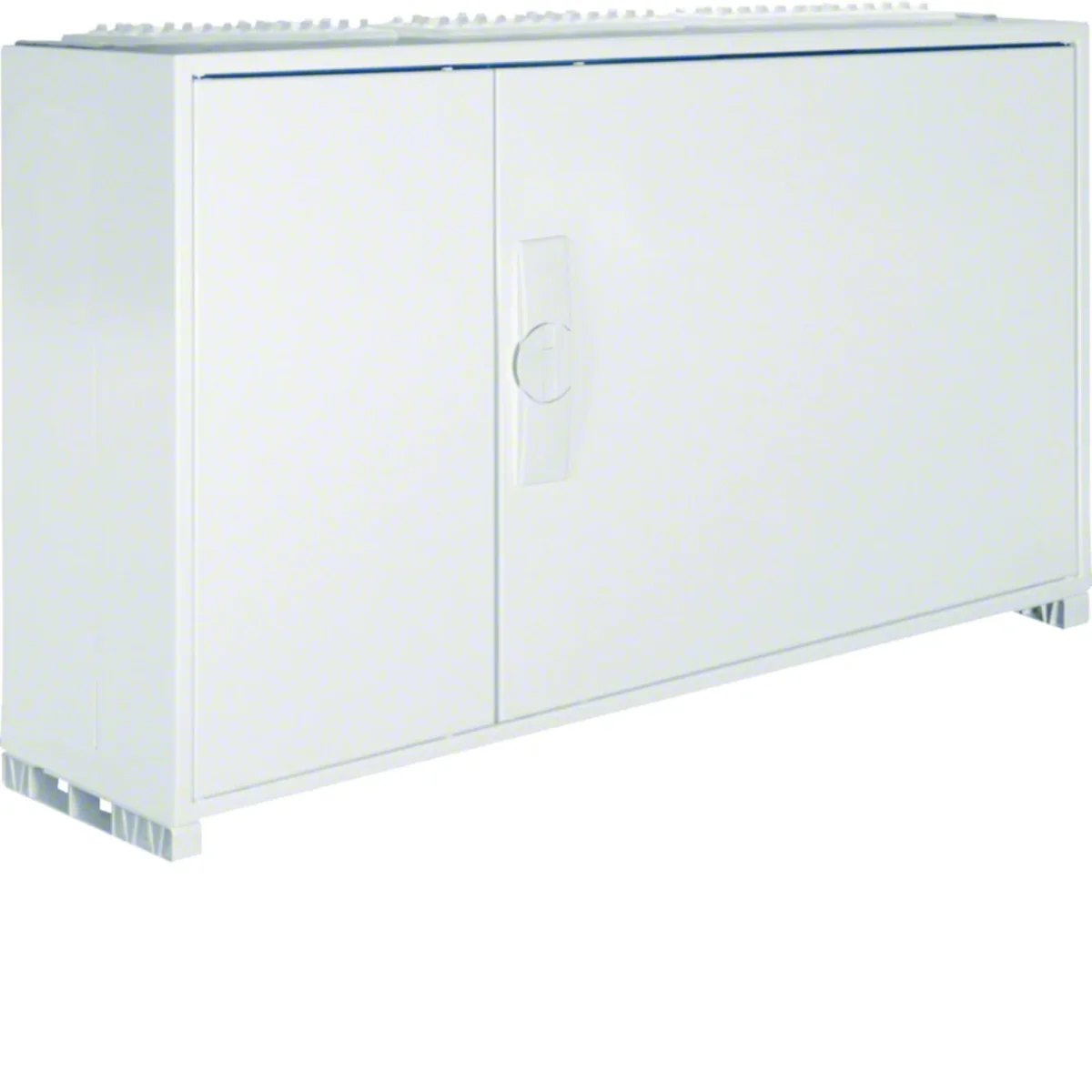

UNIVERS Wall-mounted enclosure IP44/I 500x800x205 FP33TN2

Índice local:
RMN028HAGE
Número de catálogo:
FP33TN2
Código EAN:
3250612667451
Fabricante: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 2
Precio:
1 850,81 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Wall-mounted housing from univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

Cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Datos técnicos

  • Depth [mm]
    205
  • Number of doors
    2
  • Protection class
    AND
  • Material
    steel
  • Family
    UNIVERS
  • Width [mm]
    750
  • Surface finish
    Powder coated
  • Number of rows for cameras
    3
  • Lock type
    T-Handle
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    500
  • Number of sections
    3
  • Number of cable entries
    6
  • PKWIU
    27.12.40.0

Otros datos técnicos

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    800 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    108
  • Width in number of modular spacings
    36
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    500 mm
  • Depth
    205 mm
  • Inner depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    3
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09
  • Cover with overpressure release
    No

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Paleta Karton Paleta
Cantidad 1 uds. 8 uds. 1 uds. 8 uds.
Peso (kg) 16,250 155,000 16,250 155,000
Ancho (m) 0,810 0,800 0,810 0,800
Longitud (m) 0,210 1,080 0,210 1,080
Profundidad (m) 0,540 1,200 0,540 1,200
