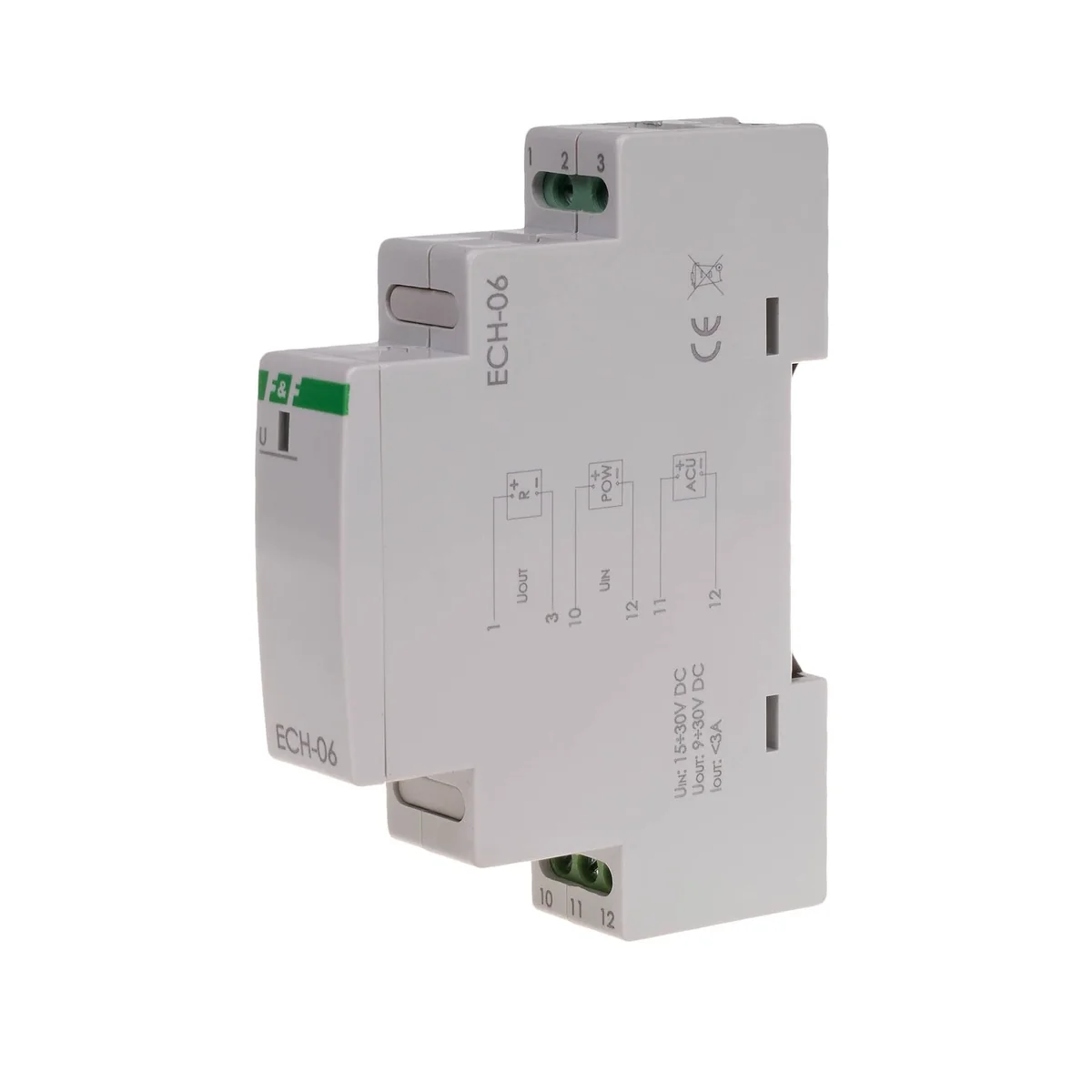

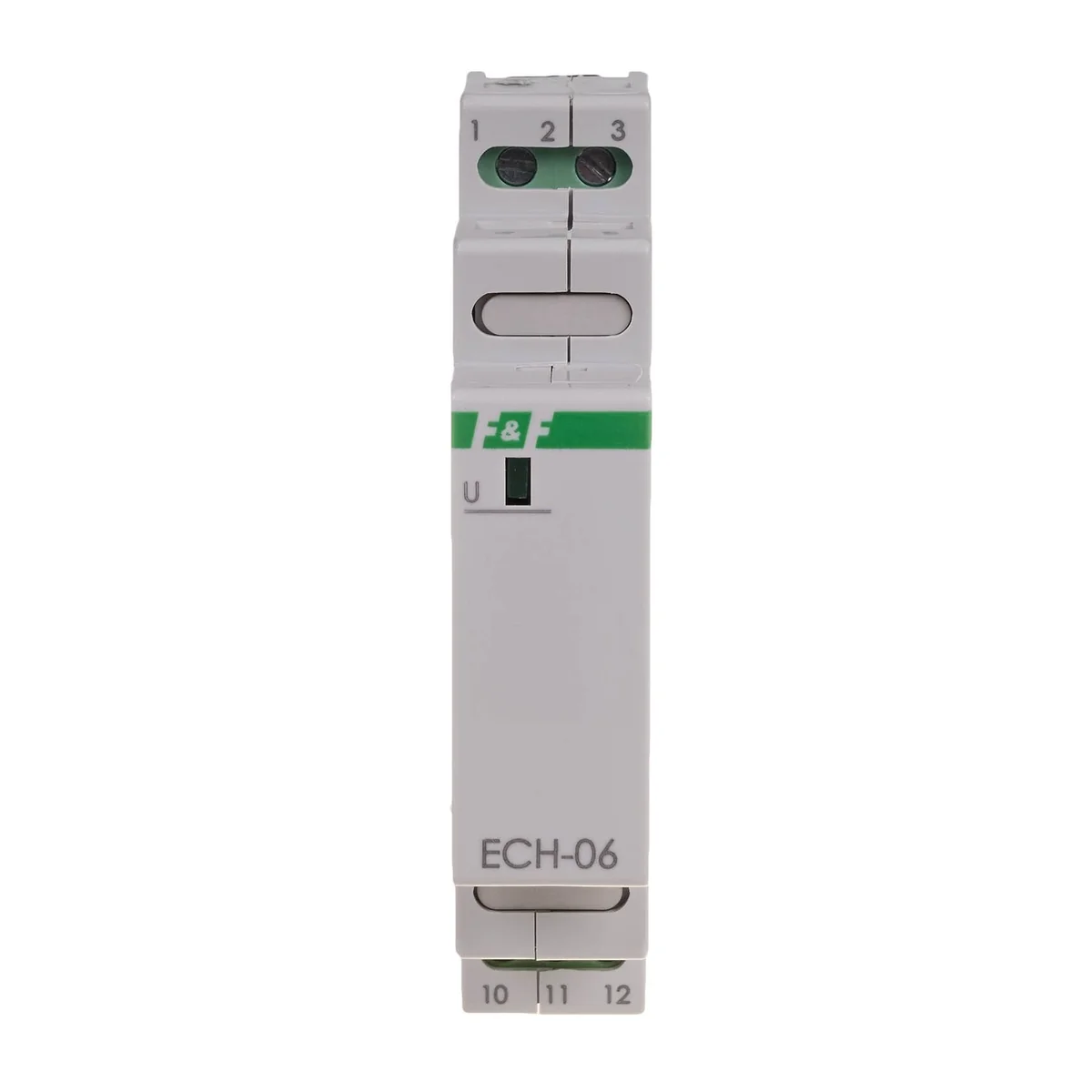

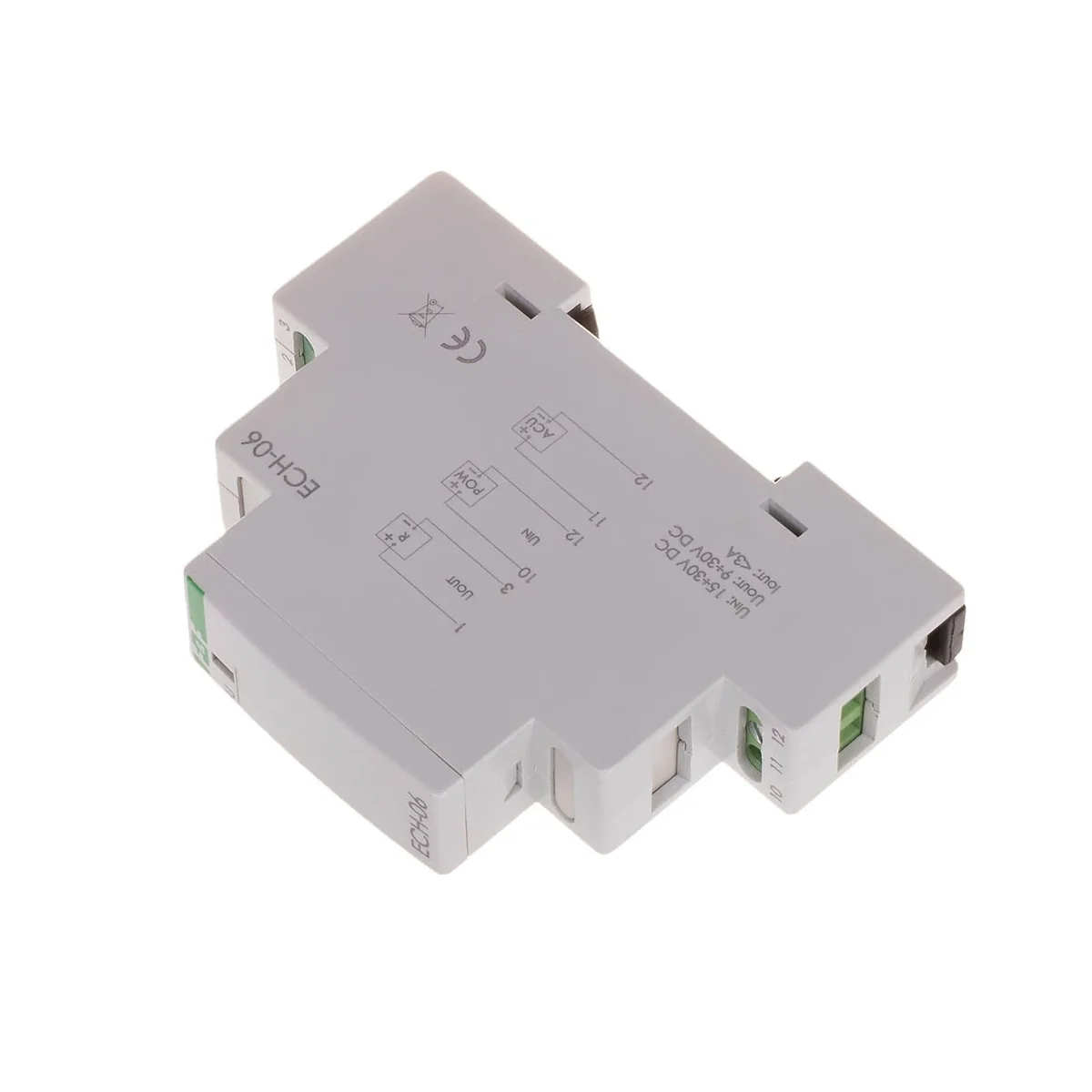

DC power reserve module (with battery charger 1 3-7 2Ah)

The ECH power supply and battery charging module allows you to implement a flexible power supply scheme for the device ensuring continuity of operation after a power failure of the main power supply. Together with an external acid (gel) battery with a nominal voltage of 12V, it constitutes a reserve power supply system. The module constantly monitors the state of charge of the battery and recharges it automatically when the main supply voltage is present. If the main voltage fails or its value drops below the battery voltage, the receiver is powered from the battery.

Power [W]

1
Charging current [A]

0.5
connection

2.5mm screw terminals
Dimensions

1 module (18mm)
Package width [mm]

20
Operating voltage range [V]

15-30

Installation

On the TH-35 rail
contact gap [kV]

3
Working temperature [°C]

-25-50
Package height [mm]

150
Package weight [kg]

0.1
PKWIU

27.12.24.0

Pozostałe dane techniczne

Input voltage AC 50 Hz

18 ... 30 V
Type of output voltage

DC
Redundancy

No

Type of voltage (input voltage)

DC
Max. output current DC

3 A
Suitable for safety functions

No

Producent

F&F Filipowski S.K.
Adres

95-200 Pabianice Konstantynowska 79/81 Polska
Email

biuro@fif.com.pl

Rodzaj opakowania	Sztuka
Ilość	1 szt.
Waga (kg)	0,054
Szerokość (m)	0,019
Długość (m)	0,095
Głębokość (m)	0,070
