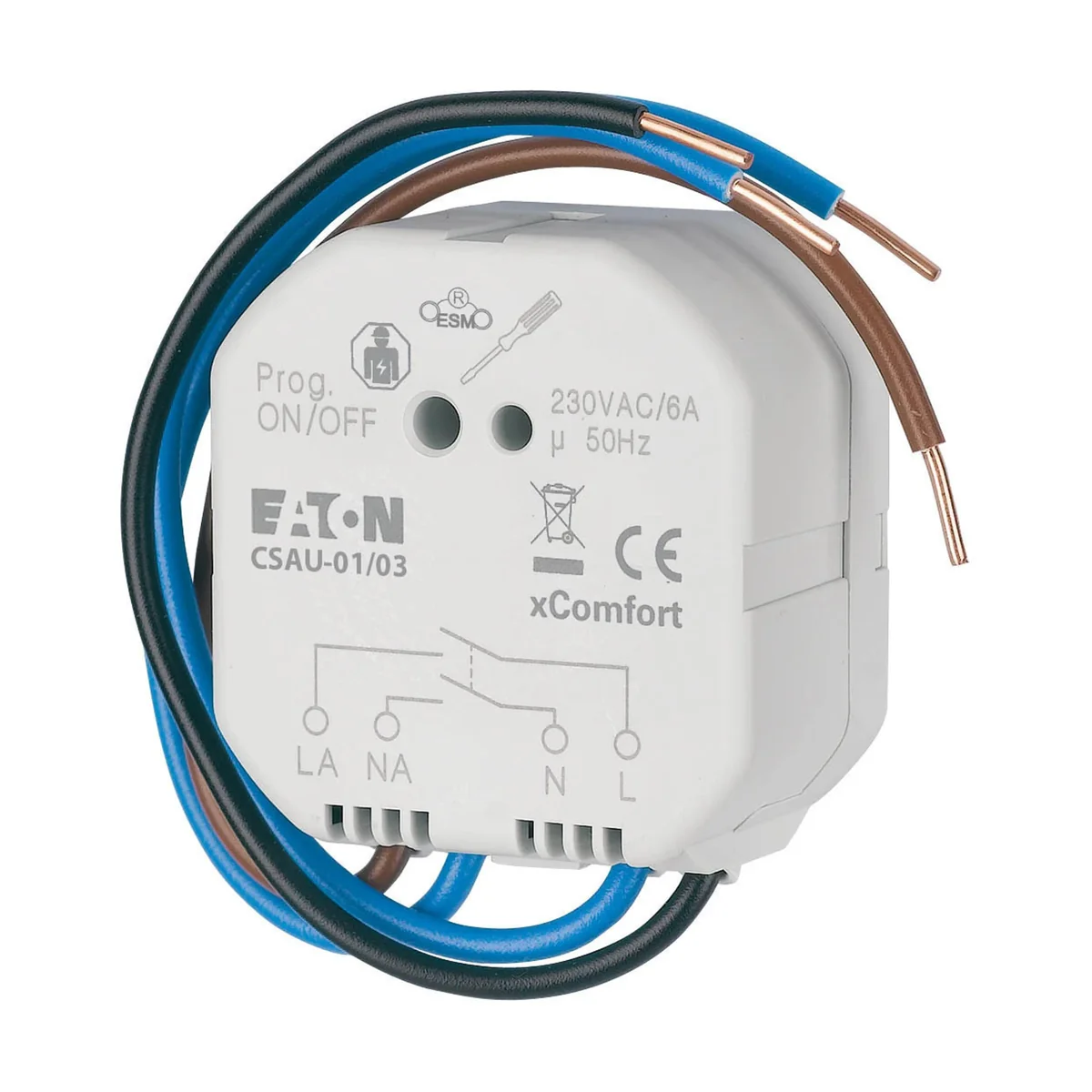

Control receiver (disconnects L and N), 6A, CSAU-01/03 240695

local index:
API066MOEL
Catalog No:
240695
EAN code:
4015082406950
Manufacturer: EATON
Rated current [A]: 6
Price:
225,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Control receiver (disconnects L and N), 6A, CSAU-01/03

Technical data

  • Rated current [A]
    6

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    Yes
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Width in number of modular spacings
    3
  • With LED indication
    No
  • Output power
    1380 W
  • Max. number of switching contacts
    2
  • Rated current
    8 A
  • Different phases connectable
    No
  • Bus module detachable
    Yes
  • Modular expandability
    No
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    xComfort
  • Mounting method
    Flush-mounted
  • Local operation/hand operation
    No
  • Max. switching power
    1380 W
  • Suitable for C-load
    No
  • Max. switching current
    6 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    No
  • Min. depth of built-in installation box
    26 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,084 5,040
Volume (m3) 0,000 0,016
Width (m) 0,085 0,180
Length (m) 0,035 0,385
Depth (m) 0,075 0,230
