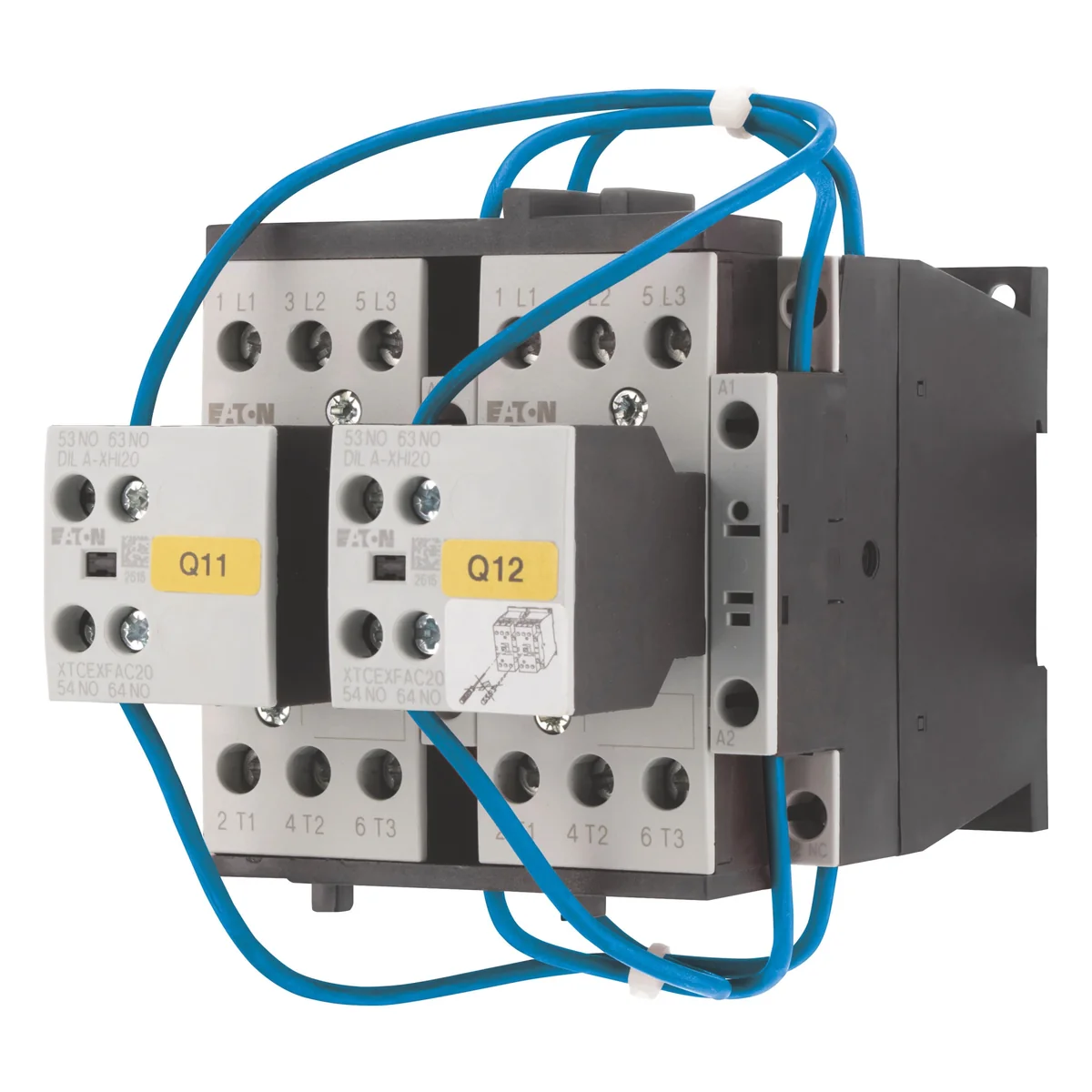

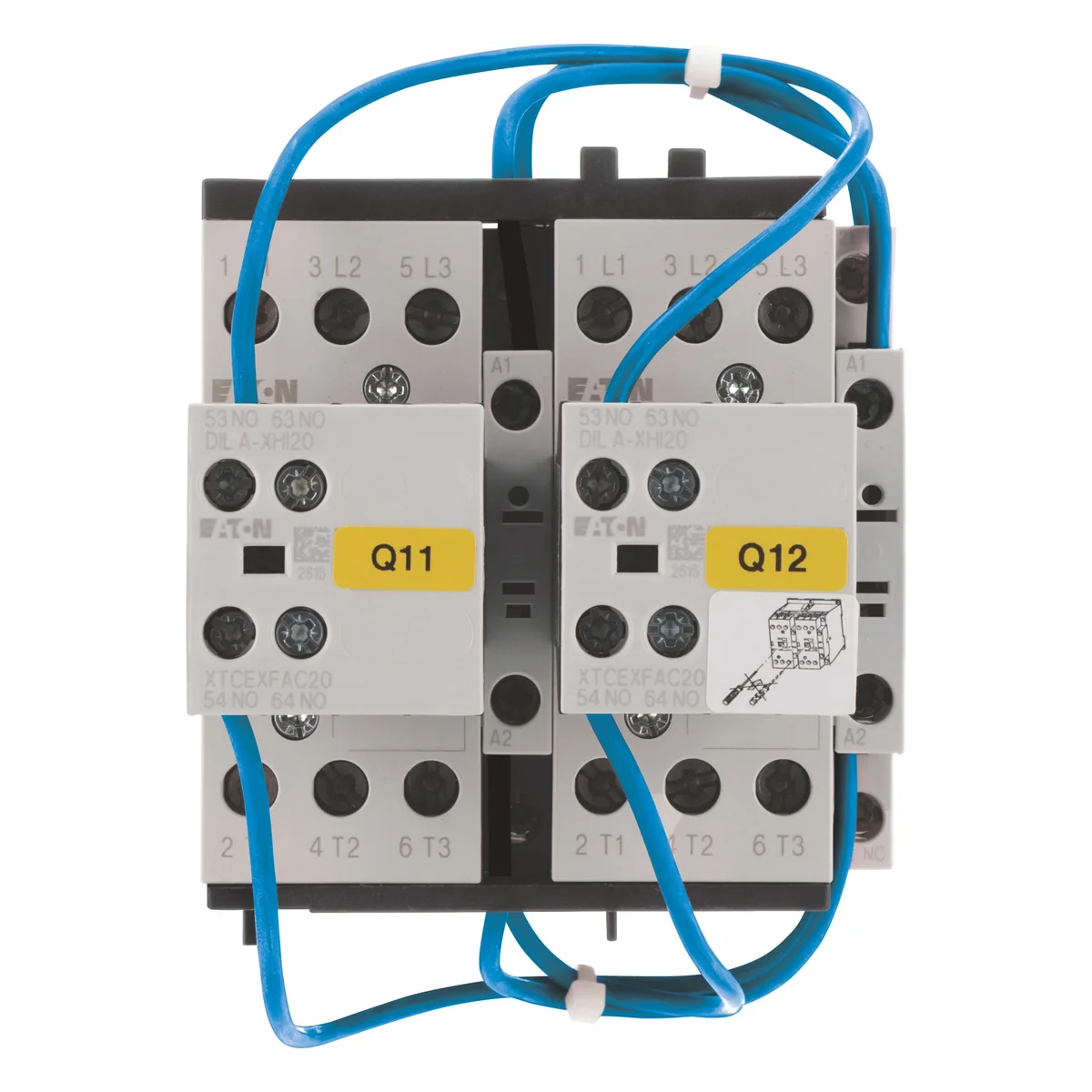

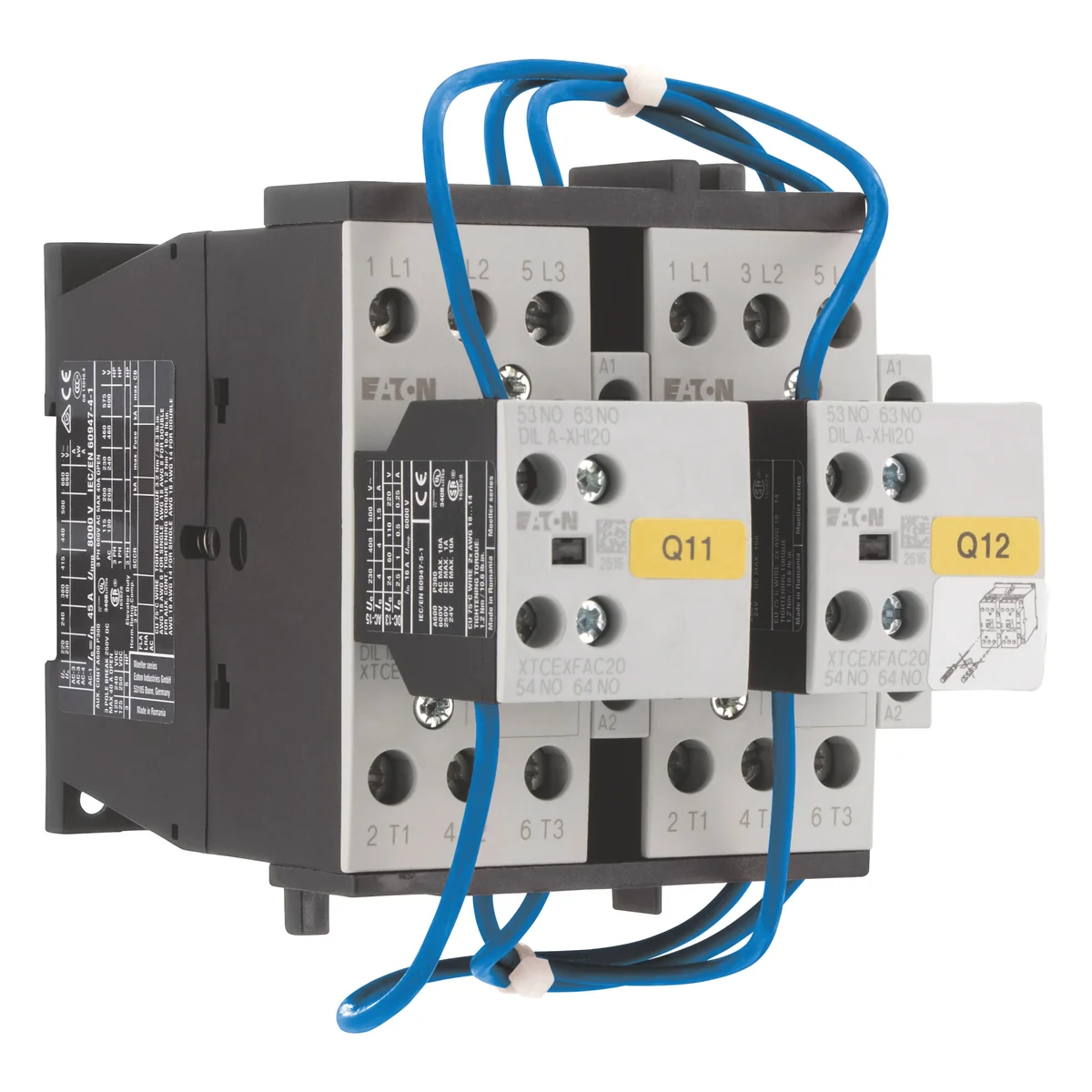

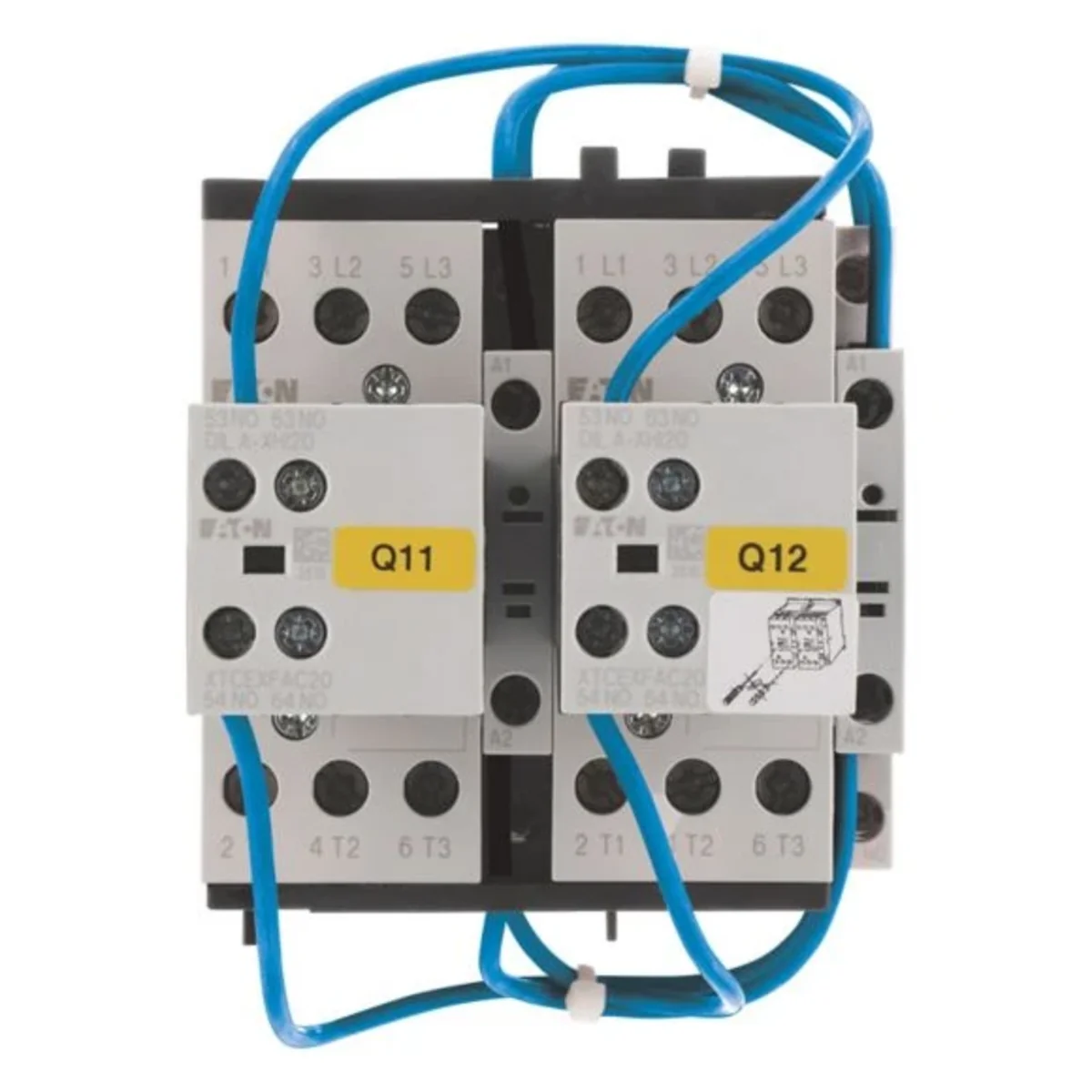

Combination of reversing contactors 7.5kW [AC-3] 400V 107024

local index:
API251MOEL
Catalog No:
107024
EAN code:
4015081067923
Manufacturer: EATON
Operating voltage [V]: 400
Switching capacity [kA]: 7.5
Price:
317,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Reversing contactor combination, Application: Contactor combinations for bidirectional motor starting, Accessories: DIUL reversing assemblies, Utilization category: AC-3: Squirrel-cage motors: starting, running-off, AC-4: Squirrel-cage motors: starting , counter-current brakes, reversing mode, impulse mode, Rated operational current AC-3 380 V 400 V: Ie= 18 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 5 kW, 380 V 400 V: P= 7.5 kW, 660 V 690 V: P= 11 kW, Starting voltage: 24 V DC, Type of current AC/DC: DC operation, Note: Also suitable for motors of energy efficiency class IE3., Devices compatible with IE3 are marked with the appropriate logo on the packaging.

Technical data

  • Operating voltage [V]
    400
  • Switching capacity [kA]
    7.5

Other technical data

  • Function
    Reversing contactor
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    18 A
  • Rated operation power NEMA
    7.4 kW
  • Number of normally open contacts as main contact
    6
  • Degree of protection (IP)
    IP00
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    18 A
  • Rated operation power at AC-3, 400 V
    7.5 kW
  • Number of normally closed contacts as main contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Rail mounting possible
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,424
Volume (m3) 0,004
Width (m) 0,170
Length (m) 0,184
Depth (m) 0,135
