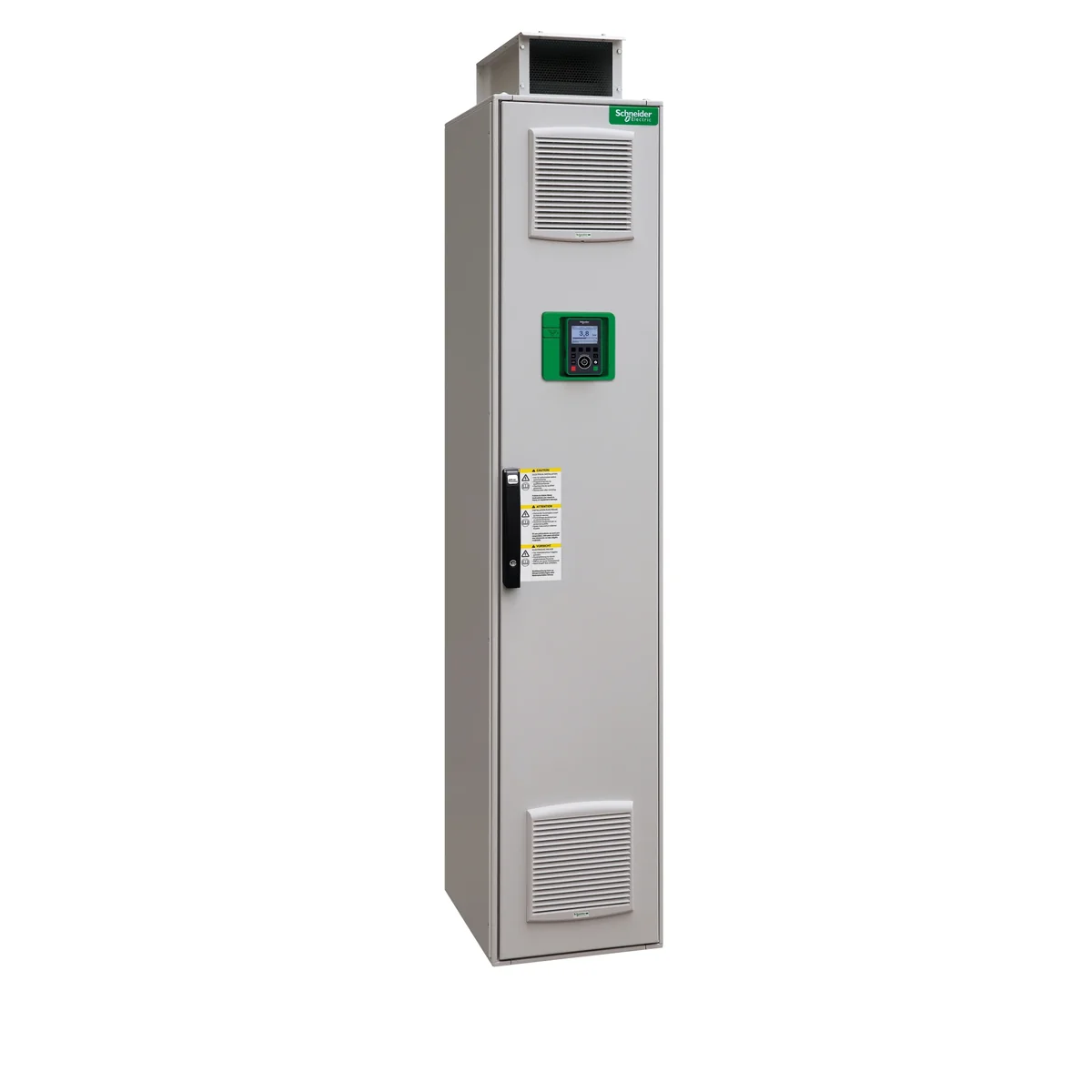

Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 160kW 302A IP21 ATV630C16N4F
local index:
API527SCHN
Catalog No:
ATV630C16N4F
EAN code:
3606485410388
Manufacturer:
SCHNEIDER ELECTRIC
Level of security: IP21
Price:
18057,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Frequency converter ATV630 3 phase 380/480VAC 50/60Hz 160kW 302A IP21
Technical data
-
Level of securityIP21
-
PKWIU27.90.41.0
Other technical data
-
Mains voltage380 ... 440 V
-
Number of phases input3
-
Max. output frequency500 Hz
-
Nominal output current I2N302 A
-
Max. output at linear load at rated output voltage160 kW
-
Relative symmetric net voltage tolerance10 %
-
Number of analogue inputs3
-
Number of digital inputs6
-
Application in industrial area permittedYes
-
Supporting protocol for TCP/IPYes
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusYes
-
Supporting protocol for DeviceNetYes
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Supporting protocol for other bus systemsNo
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces parallel0
-
With optical interfaceNo
-
Integrated breaking resistanceNo
-
Type of converterU converter
-
Height2150 mm
-
Depth605 mm
-
Mains frequency50/60 Hz
-
Number of phases output3
-
Max. output voltage440 V
-
Max. output at quadratic load at rated output voltage160 kW
-
Relative symmetric net frequency tolerance5 %
-
Number of analogue outputs2
-
Number of digital outputs0
-
With control elementYes
-
Application in domestic- and commercial area permittedYes
-
Supporting protocol for PROFIBUSYes
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IOYes
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPYes
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for BACnetNo
-
Number of HW-interfaces industrial Ethernet1
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4851
-
Number of HW-interfaces USB0
-
Number of HW-interfaces other0
-
With PC connectionNo
-
4-quadrant operation possibleYes
-
Degree of protection (IP)IP21
-
Width400 mm
Manufacturer details
-
Manufacturer"SCHNEIDER ELECTRIC POLSKA" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
-
Address02-673 UL. KONSTRUKTORSKA 12
-
Tax identification number5220011965
