16DI 24V DC 3.0ms module with CAGE CLAMPS terminal 750-1405

local index:
API004WAGO
Catalog No:
750-1405
EAN code:
4045454905590

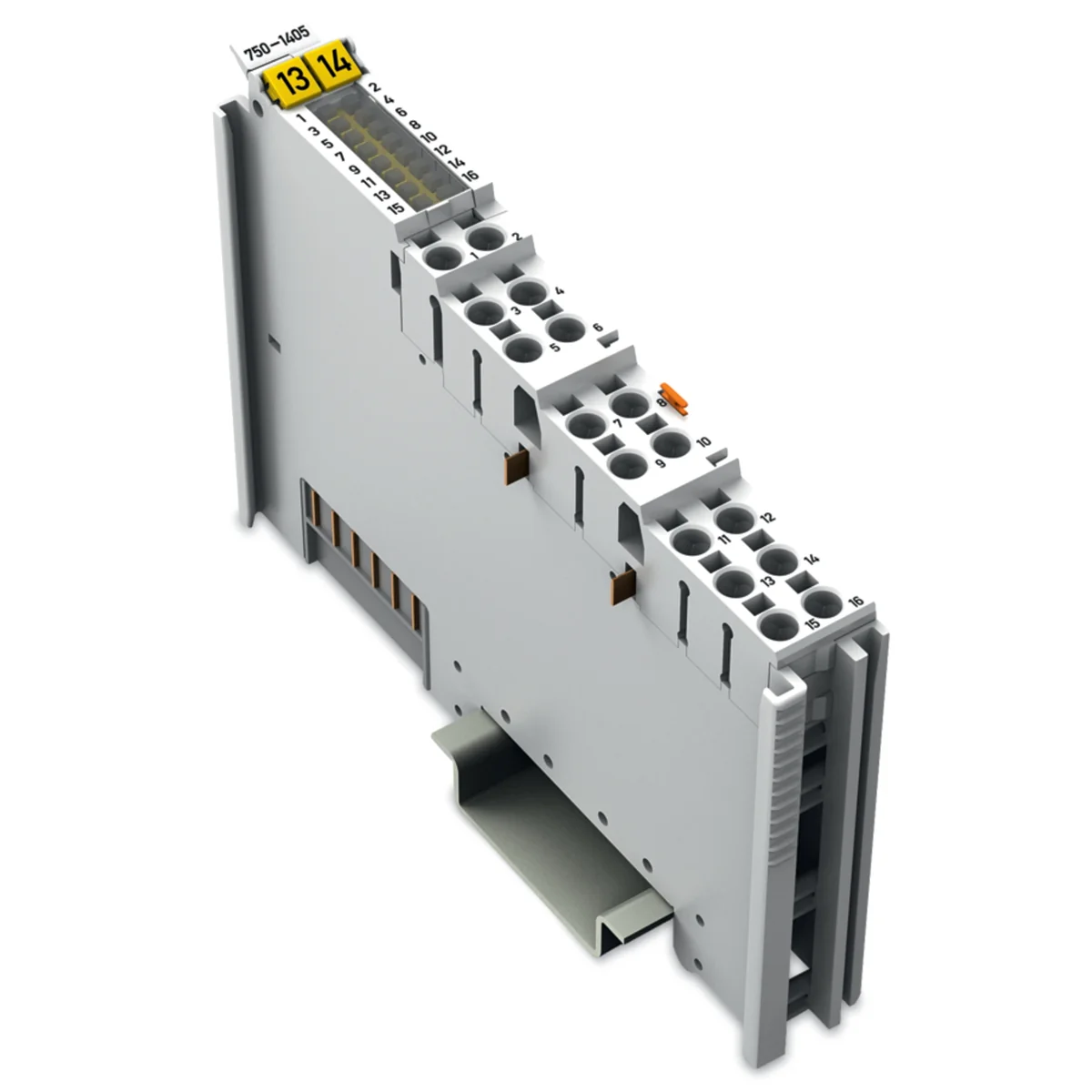

16DI 24V DC 3.0ms module with CAGE CLAMPS terminal
16DI 24V DC 3.0ms module with CAGE CLAMPS terminal

Click on the photo to enlarge

Manufacturer: WAGO ELWAG
Number of inputs: 16
Insulation [V]: 500
Signal voltage [V]: -3 - 5DC
See full description
Price:
152,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

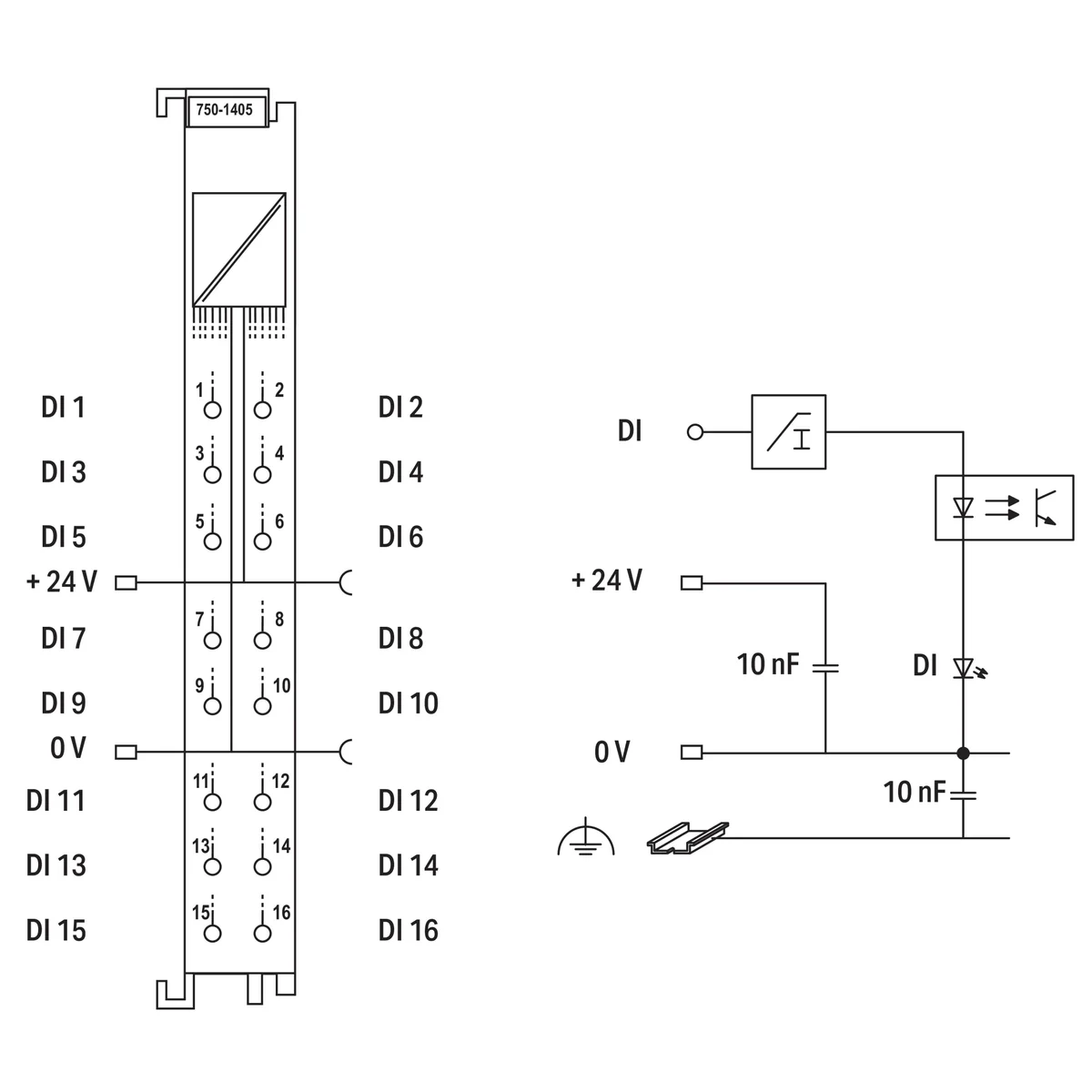

16-channel digital input module 24 V DC positive control

Technical data

  • Number of inputs
    16
  • Signal voltage [V]
    -3 - 5DC
  • Cable type
    link
  • Series
    750
  • Power [V]
    DC 24
  • Insulation [V]
    500
  • Gauge [AWG]
    22 - 16
  • Clamp type
    CAGE CLAMP S
  • Internal current consumption [mA]
    25

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of digital inputs
    16
  • Digital inputs configurable
    No
  • Input current at signal 1
    0.6 mA
  • Type of voltage (input voltage)
    DC
  • Short-circuit protection, outputs available
    No
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces serial TTY
    0
  • Number of HW-interfaces wireless
    0
  • Number of HW-interfaces other
    0
  • Supporting protocol for TCP/IP
    No
  • Supporting protocol for CAN
    No
  • Supporting protocol for ASI
    No
  • Supporting protocol for Modbus
    No
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    Yes
  • Type of electric connection
    Spring clamp connection
  • Fieldbus connection over separate bus coupler possible
    Yes
  • Wall mounting/direct mounting
    No
  • Rack-assembly possible
    No
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    12 mm
  • Depth
    100 mm
  • Voltage type (supply voltage)
    DC
  • Number of digital outputs
    0
  • Digital outputs configurable
    No
  • Permitted voltage at input
    -3 ... 30 V
  • Type of digital output
    Other
  • Number of HW-interfaces industrial Ethernet
    0
  • Number of HW-interfaces RS-232
    0
  • Number of HW-interfaces RS-485
    0
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces USB
    0
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    No
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    Yes
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Degree of protection (IP)
    IP20
  • Time delay at signal change
    3 ... 3 ms
  • Rail mounting possible
    Yes
  • Front built-in possible
    No
  • Suitable for safety functions
    No
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    64 mm

Manufacturer details

Bulk packaging

A kind of package Karton
Quantity 1 pcs.
Weight (kg) 0,061
Volume (m3) 0,000
Width (m) 0,020
Length (m) 0,104
Depth (m) 0,074
