2AO 0-10VDC module 750-550
local index:
API052WAGO
Catalog No:
750-550
EAN code:
4045454393557
Price:
326,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

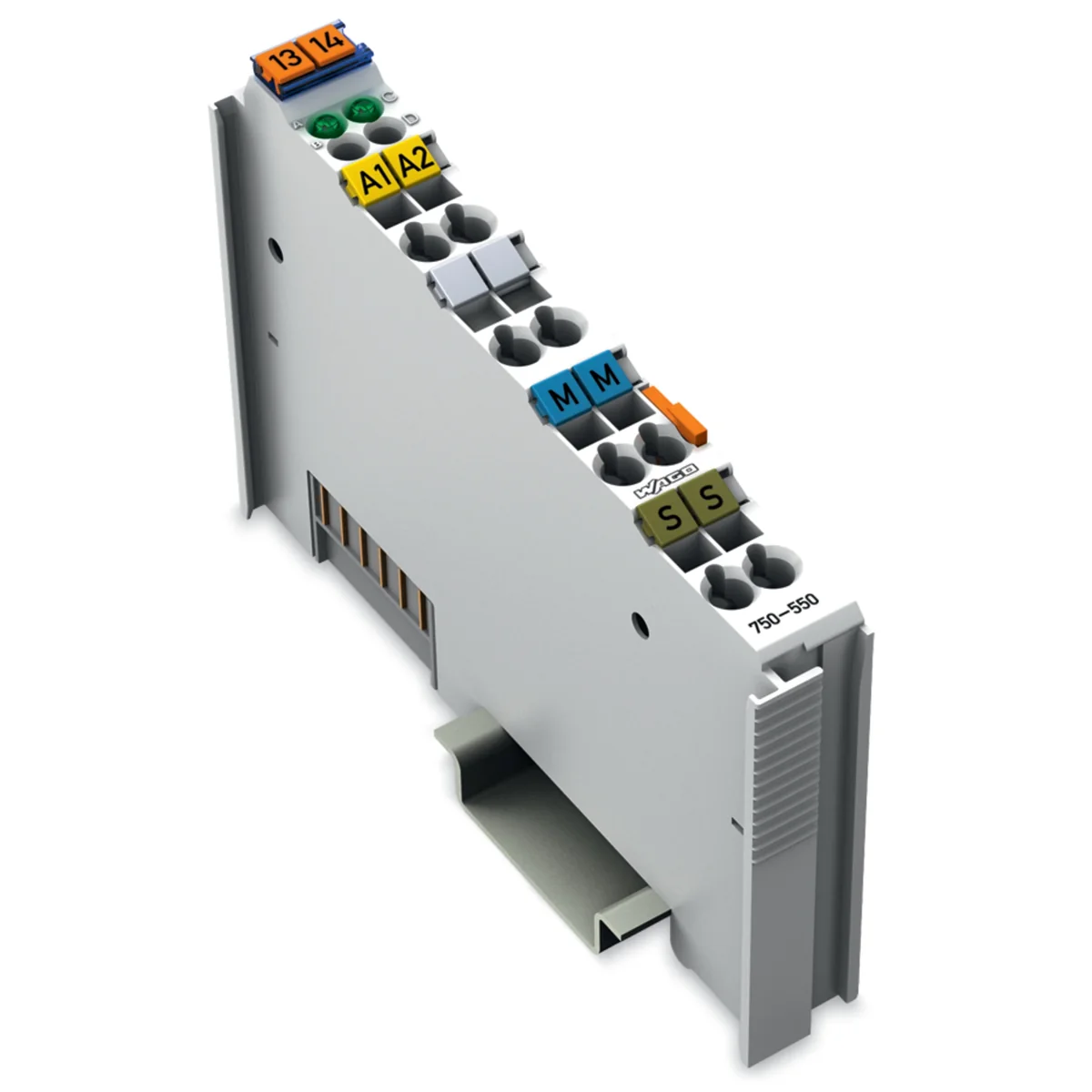

2-channel analog output module 0 - 10 V
Technical data
-
Number of outputs2
-
ColorGray
-
Vibration resistanceAccording to IEC 60068-2-6
-
Series750
-
PowerBy DC/DC system power supply
-
Insulation [V]500
-
Signal voltage [V]0 - 10
-
Shock resistanceAccording to IEC 60068-2-27
-
Internal current consumption [mA]65
-
Accurate colorlight gray
Other technical data
-
Supply voltage DC24 ... 24 V
-
Input, currentNo
-
Input, resistorNo
-
Input, thermocoupleNo
-
Output, currentNo
-
Output signal configurableNo
-
Number of analogue inputs0
-
Analogue inputs configurableNo
-
Number of HW-interfaces industrial Ethernet0
-
Number of HW-interfaces RS-2320
-
Number of HW-interfaces RS-4850
-
Number of HW-interfaces parallel0
-
Number of HW-interfaces USB0
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Radio standard BluetoothNo
-
Radio standard GPRSNo
-
Radio standard UMTSNo
-
System accessoryYes
-
Type of electric connectionSpring clamp connection
-
Rail mounting possibleYes
-
Front built-in possibleNo
-
Suitable for safety functionsNo
-
Appendant operation agent (Ex ib)No
-
Explosion safety category for dustATEX dust-ex-protection, Cat. 3D
-
Height64 mm
-
Voltage type (supply voltage)DC
-
Input, voltageNo
-
Input, resistance thermometerNo
-
Input signal, configurableNo
-
Output, voltageYes
-
Resolution of the analogue outputs12 b
-
Number of analogue outputs2
-
Analogue outputs configurableNo
-
Number of interfaces PROFINET0
-
Number of HW-interfaces RS-4220
-
Number of HW-interfaces serial TTY0
-
Number of HW-interfaces wireless0
-
Number of HW-interfaces other0
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for KNXNo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Radio standard WLAN 802.11No
-
Radio standard GSMNo
-
IO link masterNo
-
Degree of protection (IP)IP20
-
Fieldbus connection over separate bus coupler possibleYes
-
Wall mounting/direct mountingNo
-
Rack-assembly possibleNo
-
Appendant operation agent (Ex ia)No
-
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
-
Width12 mm
-
Depth100 mm
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pcs. |
| Weight (kg) | 0,076 |
| Volume (m3) | 0,000 |
| Width (m) | 0,020 |
| Length (m) | 0,104 |
| Depth (m) | 0,074 |
