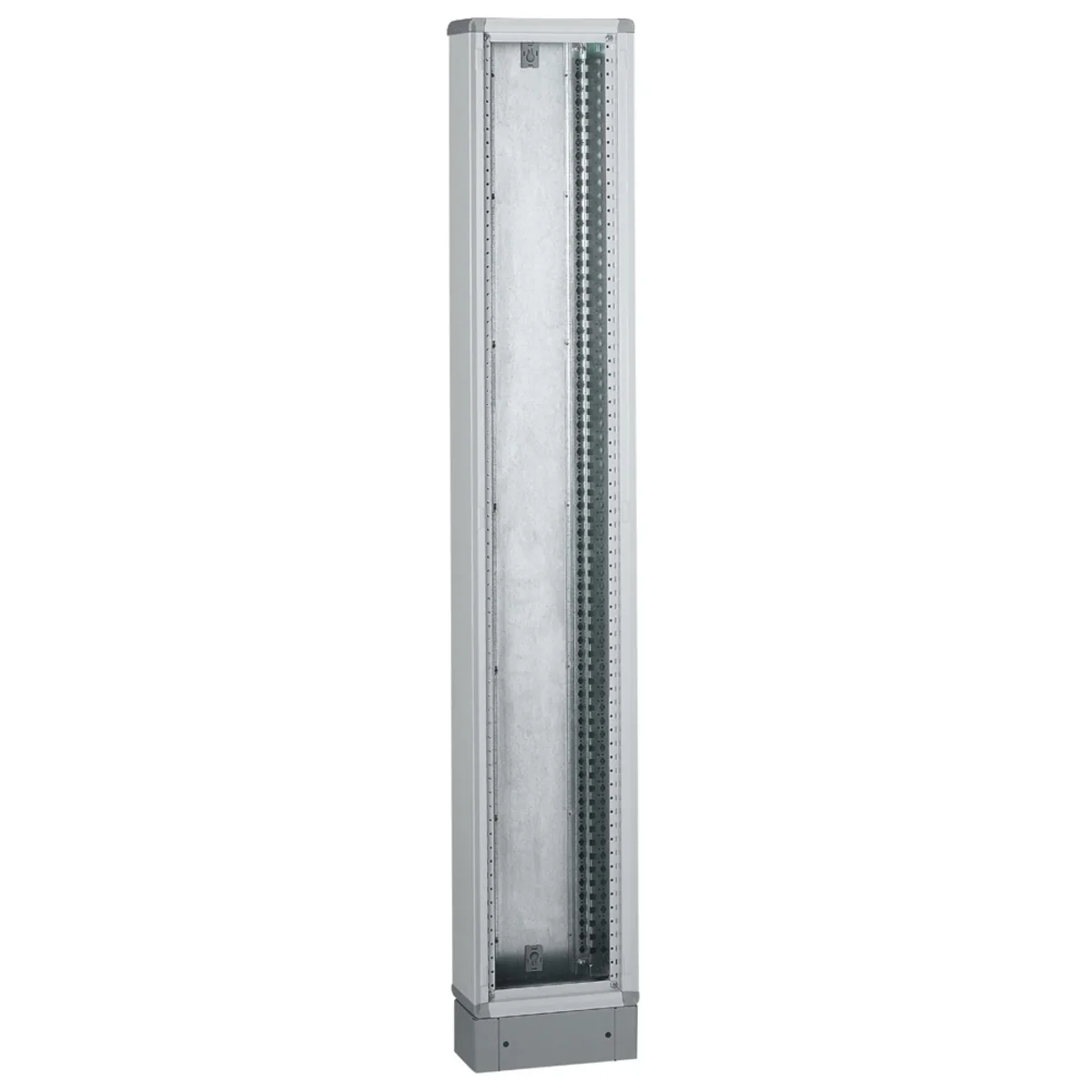

XL3 400/1900 metal cable compartment 020139

Possibility to mount devices with In up to 400 A
Fire resistance up to 750 °C/5 s in accordance with IEC 60 695-2. Intended for installation in public utility buildings (up to 100 kVA for Class II switchboards)
Capacity: 24 modules in a row
Switchboard color RAL 7035, plinth color RAL 7004
Doors to be ordered separately
Supplied with mounting profiles , cable gland plate, with the possibility of cutting and accessories for connecting the switchboards vertically and horizontally


Product parameters

Metal switchgear
IP 43 - IK 08 with gasket and door
IP 40 - IK 08 with door
IP 30 - IK 07 without door

Cable compartments for metal switchboards with plinth
Supplied with plinth height 100 mm
Dimensions:
height : 1900 (mm)
Useable height: 1750 (mm)
Total width: 310 (mm)
Useable width: 250 (mm)
Depth: 175 (mm)
