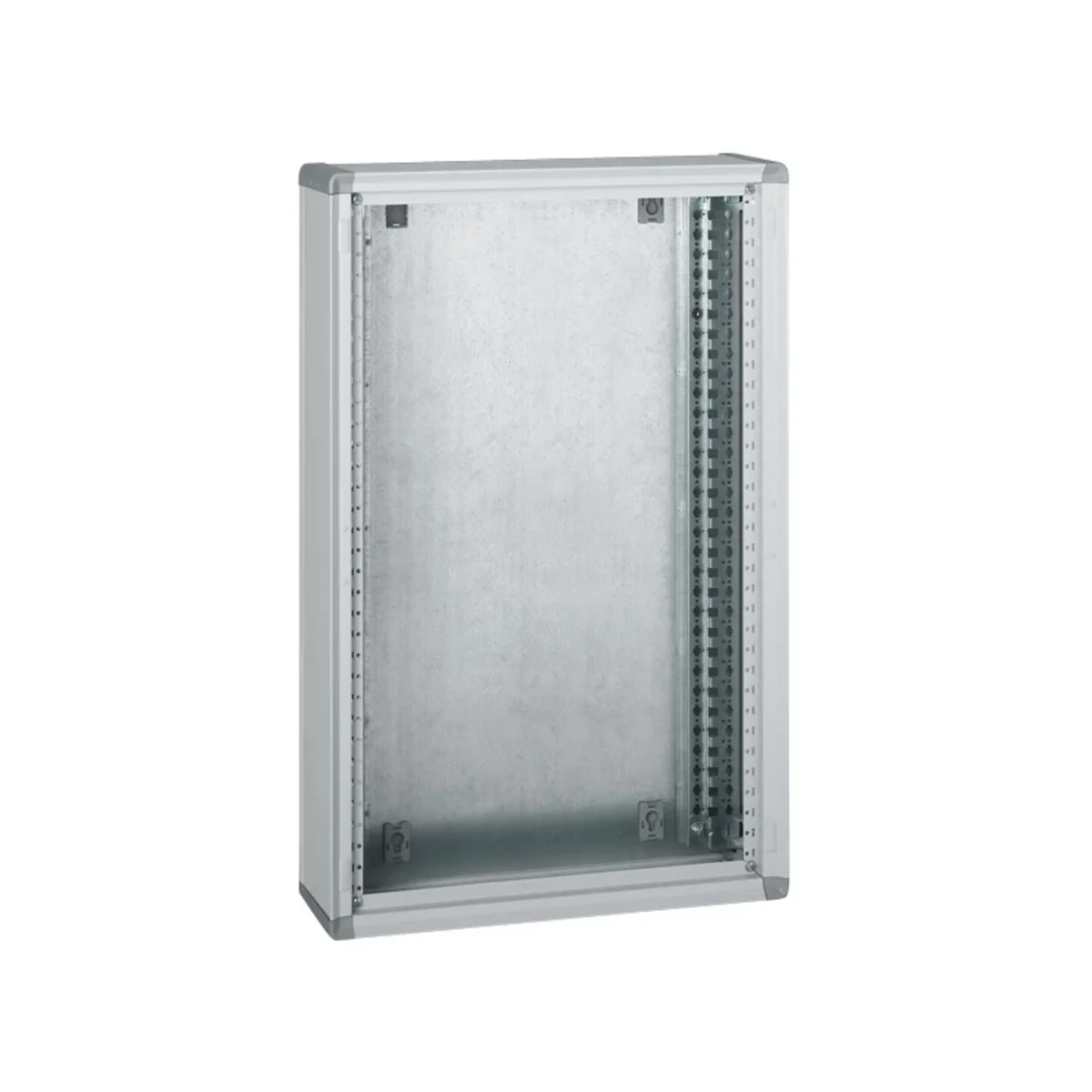

XL3 400 Metal switchgear, height 900 020105

Possibility of mounting devices with In up to 400 A
Fire resistance up to 750 °C/5 s according to IEC 60 695-2. Intended for installation in public utility buildings (up to 100 kVA for Class II switchboards)
Capacity: 24 modules per row
Switchboard color RAL 7035, plinth color RAL 7004
Doors ordered separately
Supplied with mounting profiles, cable gland plate, with the possibility of cutting and accessories for connecting the switchboards vertically and horizontally


Product Parameters

Metal switchgear
IP 43 - IK 08 with gasket and door
IP 40 - IK 08 with door
IP 30 - IK 07 without door

Dimensions
height: 900 (mm)
Usable height: 850 (mm)
Overall width: 575 (mm)
Usable width: 515 (mm)
depth: 175 (mm)
