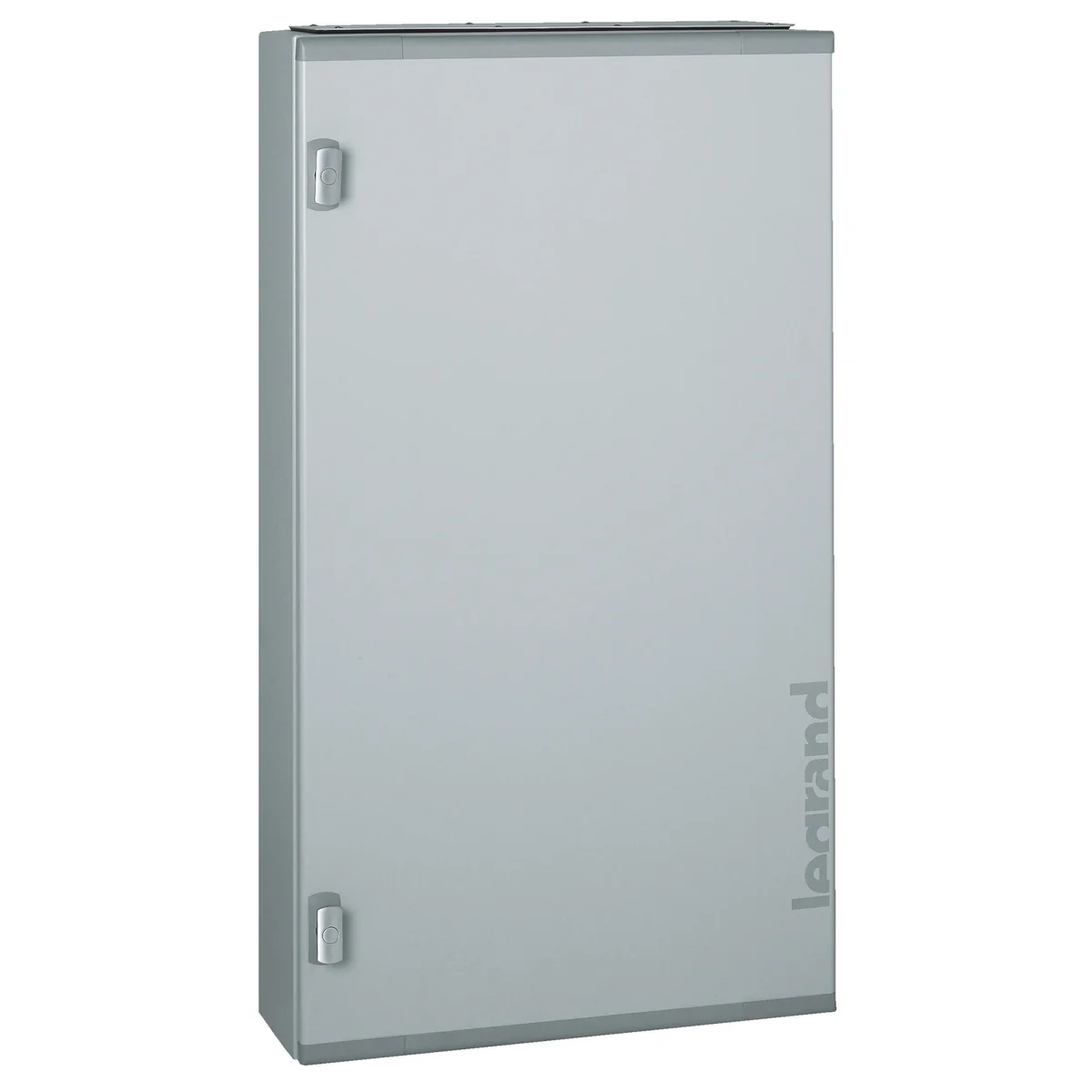

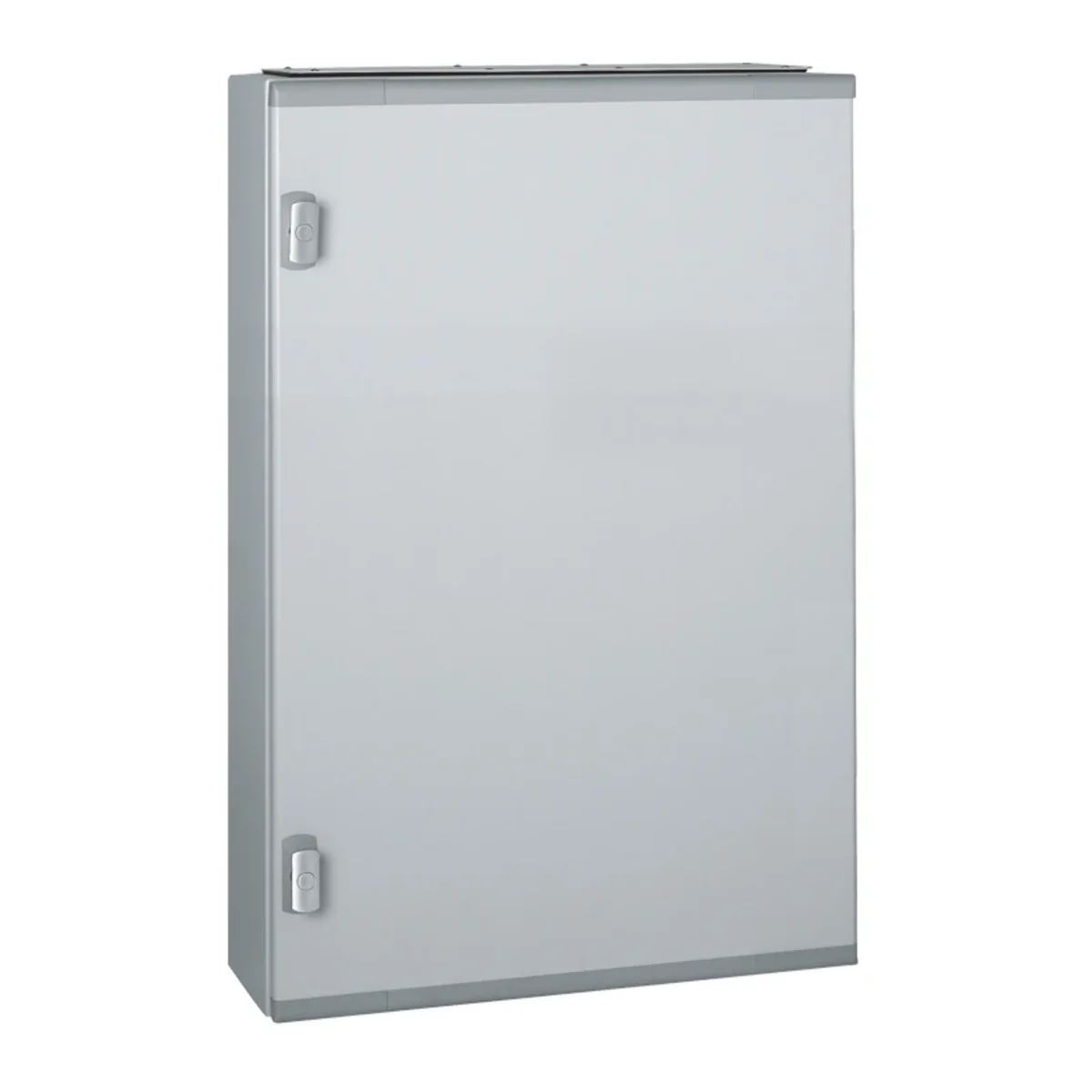

XL3 400 Metal enclosure IP55 W. 800 020184

Metal monobloc enclosures
The possibility of mounting devices with In up to 250 A
Fire resistance up to 750 °C/ 5s, in accordance with IEC 60695-2-1
Capacity: 24 modules in a row. Switchgear color: RAL 7035
Supplied with solid reversible door equipped with opening handle and lock inserts
Brackets for wall mounting must be ordered separately


Product parameters

Distribution boxes IP55 monoblock
Dimensions:
height: 915 mm
Useful height: 800 mm
Total width: 655 mm
Useable width: 515 mm
depth: 215 mm
