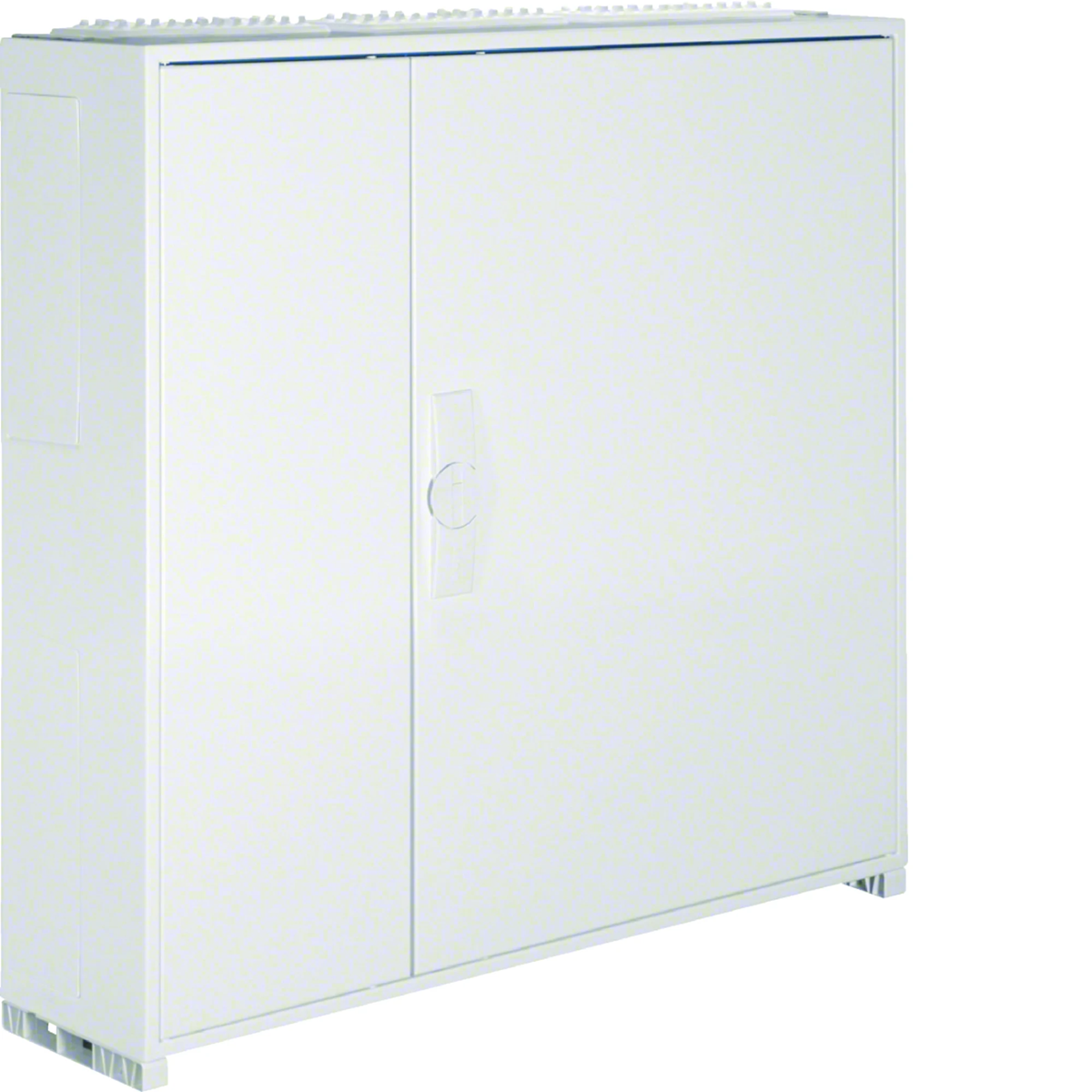

Wall-mounted enclosure UNIVERS IP44/II 800x800x205 FP53SN2

local index:
RMN010HAGE
Catalog No:
FP53SN2
EAN code:
3250612669097
Manufacturer: HAGER
Depth [mm]: 205
Number of doors: 2
Color: White
Price:
488,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall cabinets, IP44, insulation class II, depth 205 mm.

Technical data

  • Depth [mm]
    205
  • Color
    White
  • Width [mm]
    800
  • Accurate color
    White
  • Number of doors
    2
  • Level of security
    IP44
  • Height [mm]
    800
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    800 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    180
  • Width in number of modular spacings
    36
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    800 mm
  • Depth
    205 mm
  • Inner depth
    130 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    5
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 5 pcs.
Weight (kg) 18,999 19,000 118,500
Width (m) 0,800 0,215 0,860
Length (m) 0,800 0,850 0,995
Depth (m) 0,205 0,820 1,200
