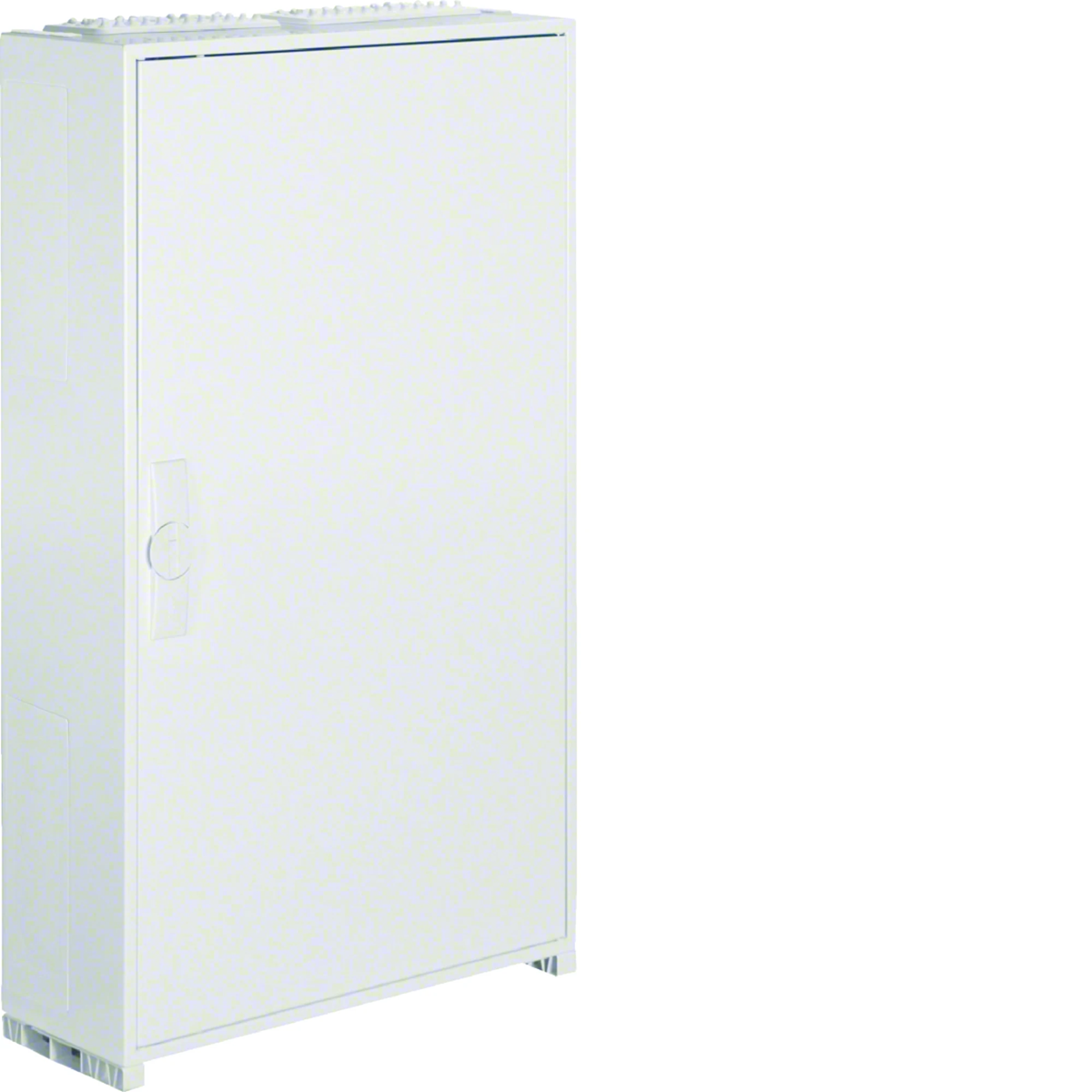

Wall-mounted enclosure UNIVERS IP44/I 950x550x205 FP62TN2

local index:
RMN007HAGE
Catalog No:
FP62TN2
EAN code:
3250612667789
Manufacturer: HAGER
Installation: Surface-mounted, flush-mounted or semi-recessed
Level of security: IP44
Width [cm]: 550
Price:
334,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hager cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Installation
    Surface-mounted, flush-mounted or semi-recessed
  • Width [cm]
    550
  • Depth [cm]
    205
  • Level of security
    IP44
  • Height [cm]
    950
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    550 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    144
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    950 mm
  • Depth
    205 mm
  • Inner depth
    130 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    6
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 15,919 15,920 152,360
Width (m) 0,550 0,565 0,860
Length (m) 0,950 0,215 1,150
Depth (m) 0,205 1,010 1,200
