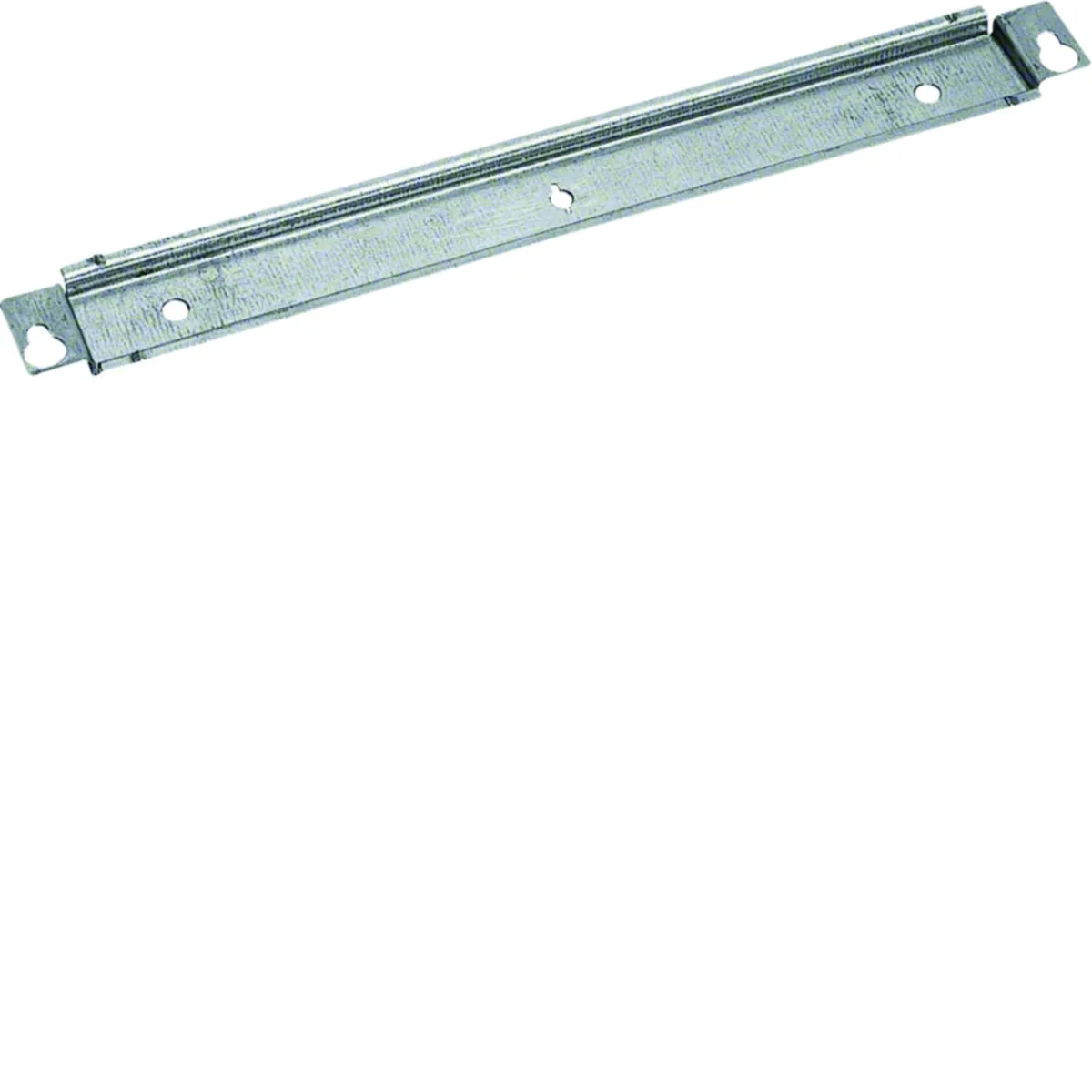

VOLTA Support rail TS35 lowered construction to a depth of 84 mm VZ406

local index:
RPA086HAGE
Catalog No:
VZ406
EAN code:
3250616664067
Manufacturer: HAGER
Material: steel
Family: VOLTA
Width [mm]: 268
Price:
3,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TS35 lowered support rail, volta series.


  • enables increasing the installation depth to 84 mm.

Technical data

  • Material
    steel
  • Width [mm]
    268
  • PKWIU
    25.72.14.0
  • Family
    VOLTA
  • Surface finish
    Galvanized

Other technical data

  • Model
    DIN rail (top hat rail) 35/7.5 mm
  • Punch shape
    Round hole
  • Material thickness
    1 mm
  • Height
    35 mm
  • Material
    Steel
  • Drill hole distance centrically
    255 mm
  • Length
    10 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 800 pcs.
Weight (kg) 0,093 0,940 100,200
Width (m) 0,083 0,100 0,800
Length (m) 0,054 0,030 1,775
Depth (m) 0,284 0,150 1,200
