VEGA Surface-mounted telecommunication switchgear 1R IP40 with white door VB118MP

local index:
RMN069HAGE
Catalog No:
VB118MP
EAN code:
3250611019312
Manufacturer: HAGER
Depth [mm]: 146
Thickness [mm]: 2.5
Number of doors: 1
Price:
52,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 6 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

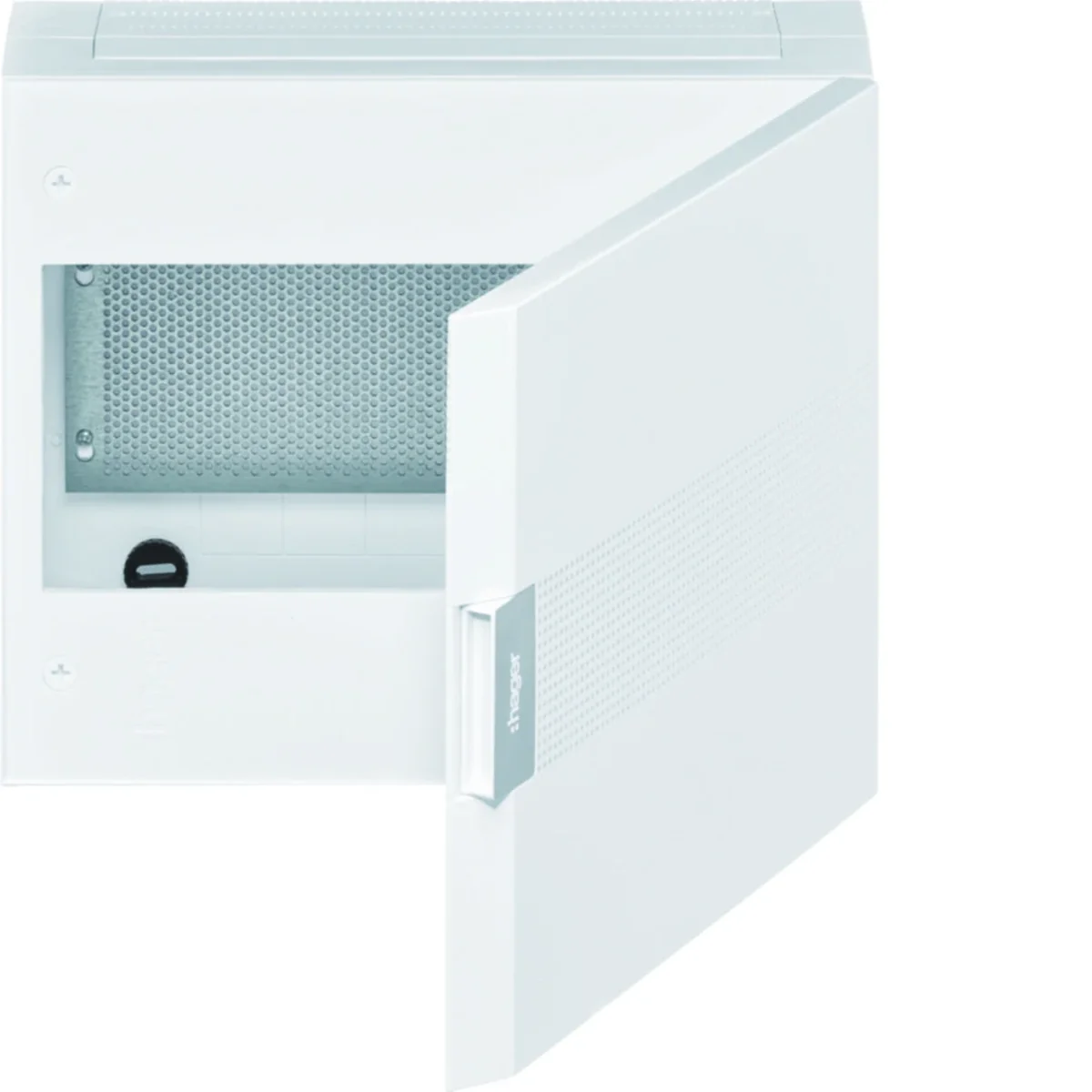

Surface-mounted telecommunication switchgear, 1 row, white door, vega series.

Technical data

  • Depth [mm]
    146
  • Number of doors
    1
  • Number of locks
    1
  • Material
    PC ABS
  • Installation
    Surface-mounted
  • Level of security
    IP00
  • Height [mm]
    325
  • Number of rows for cameras
    1
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2.5
  • Number of rows
    1
  • Color
    White
  • Housing material
    Polystyrene
  • Family
    VEGA
  • Width [mm]
    400
  • Glow wire test [°C]
    650
  • Lock type
    Latch

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    400 mm
  • Inner depth
    140 mm
  • With mounting plate
    Yes
  • Colour
    White
  • Degree of protection (IP)
    Other
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    325 mm
  • Depth
    146 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 36 pcs.
Weight (kg) 2,176 2,340 86,465
Width (m) 0,150 0,345 0,800
Length (m) 0,325 0,160 1,080
Depth (m) 0,400 0,410 1,200
