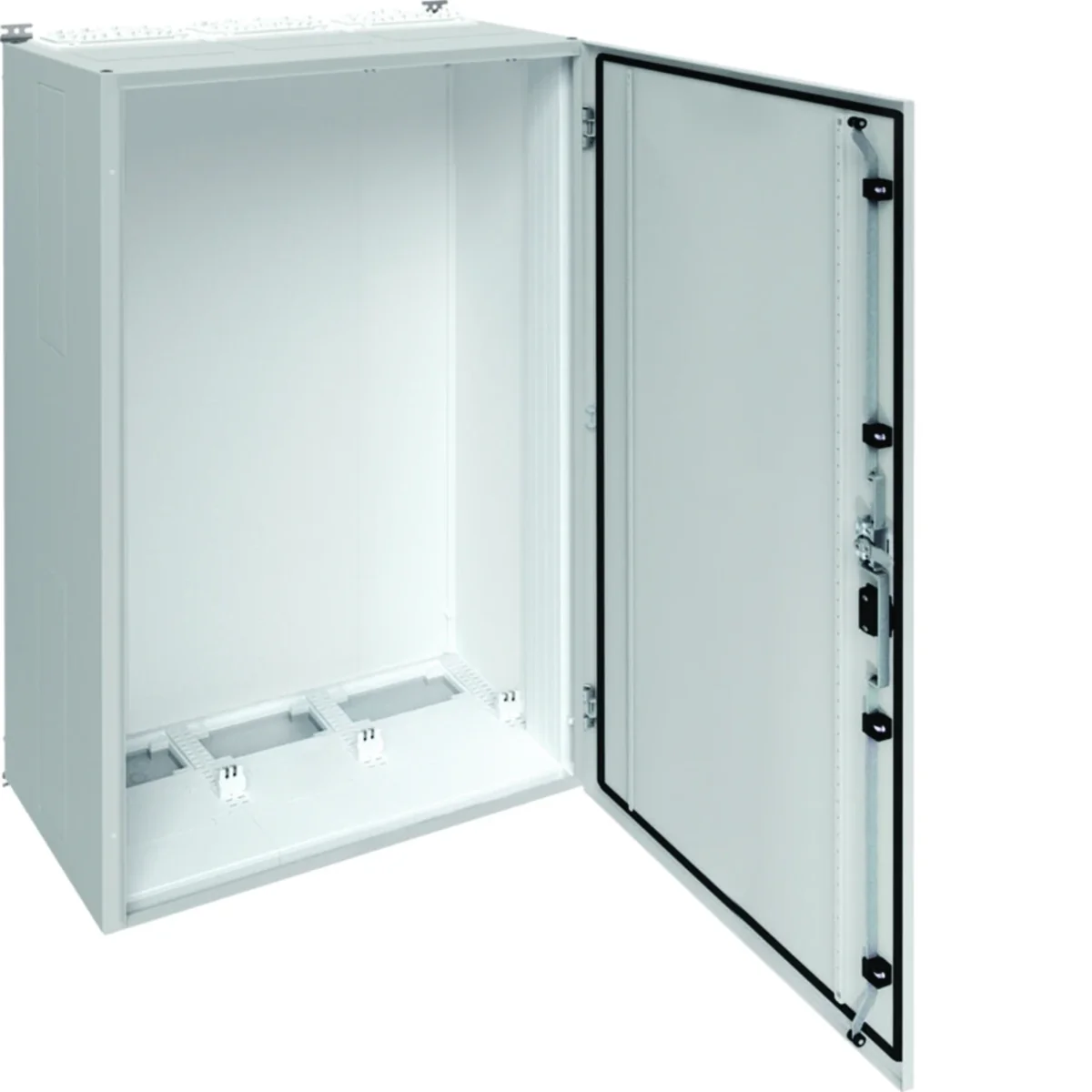

UNIVERS Wall-mounted switchgear IP55/II 800x1400x400 FR93H

local index:
RMN176HAGE
Catalog No:
FR93H
EAN code:
3250610702994
Manufacturer: HAGER
Halogen free: NO
Depth [mm]: 400
Thickness [mm]: 1.5
Large-size product
Price:
798,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 6 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    800
  • Surface finish
    Powder coated
  • Number of rows for cameras
    9
  • PKWIU
    27.12.40.0
  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    1400
  • Accurate color
    light gray
  • Number of cable entries
    6

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    800 A
  • Width
    800 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    9
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    1400 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    324
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 3 pcs.
Weight (kg) 64,900 65,000 220,000
Width (m) 0,830 0,830 0,800
Length (m) 1,465 1,465 1,615
Depth (m) 0,420 0,420 1,200
