UNIVERS Wall-mounted switchgear IP55/II 800x1250x275 FR83S

Name: UNIVERS Wall-mounted switchgear IP55/II 800x1250x275
Brand: HAGER
SKU: RMN163HAGE
Price: 2953.03 PLN
Availability: BackOrder

Índice local:

RMN163HAGE

Número de catálogo:

FR83S

Código EAN:

3250610702864

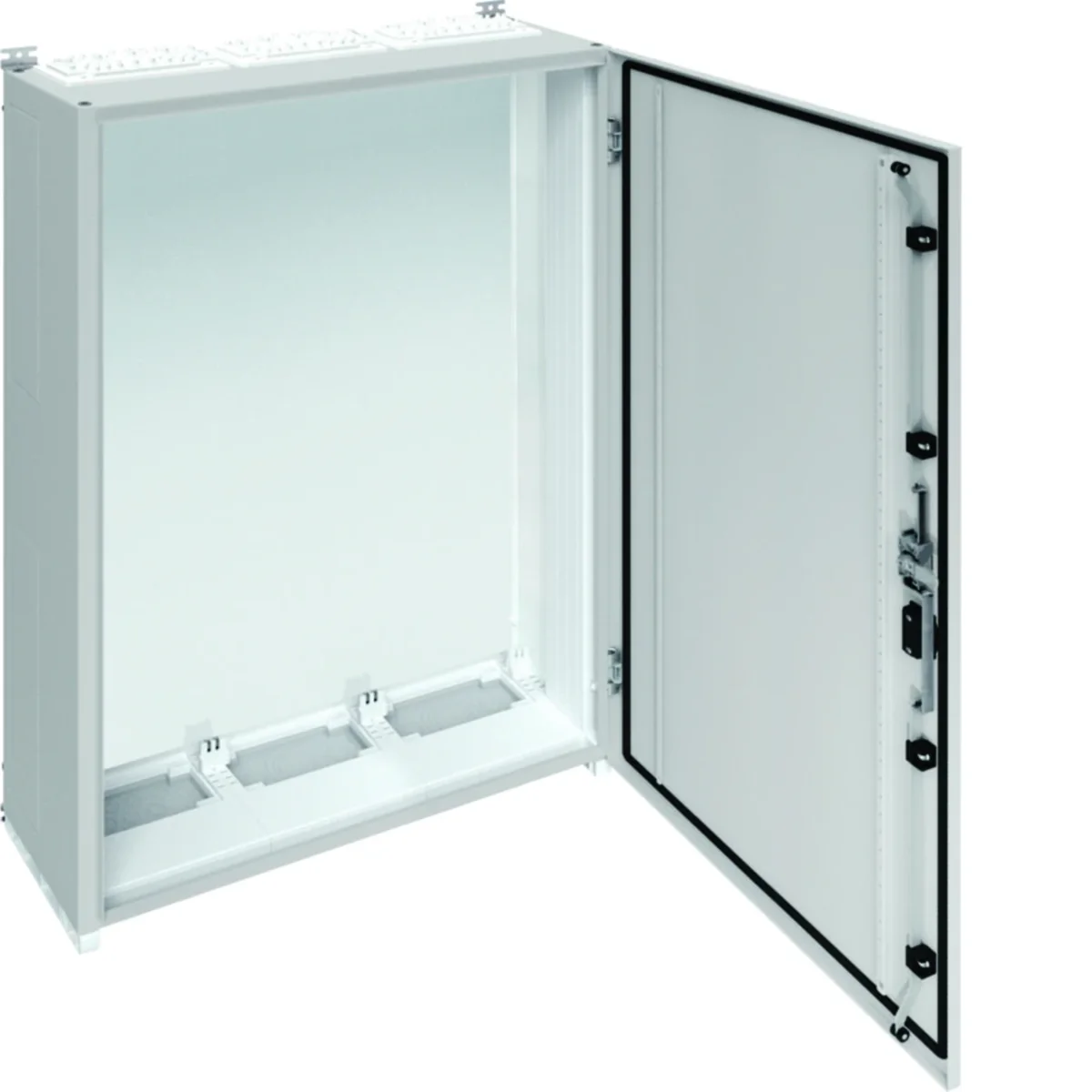

UNIVERS Wall-mounted switchgear IP55/II 800x1250x275

Haga clic en la foto para ampliar

Fabricante: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Ver descripción completa

Producto grande

Precio:

2 953,03 zł

gross / uds.

(IVA incluido 23%)

hasta 4 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Datos técnicos

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

800
Surface finish

Powder coated
Number of rows for cameras

8
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

II
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1250
Accurate color

light gray
Number of cable entries

6

Otros datos técnicos

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

800 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

8
Number of openings for flange plates

6
Number of conduit inlets

6
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

1250 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

288
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	4 uds.	1 uds.	4 uds.
Peso (kg)	49,000	221,000	49,000	221,000
Ancho (m)	0,830	0,830	0,830	0,830
Longitud (m)	1,340	1,500	1,340	1,500
Profundidad (m)	0,300	1,200	0,300	1,200
