UNIVERS Wall-mounted switchgear IP55/II 550x1250x275 FR82S

Name: UNIVERS Wall-mounted switchgear IP55/II 550x1250x275
Brand: HAGER
SKU: RMN161HAGE
Price: 528.21 PLN

local index:

RMN161HAGE

Catalog No:

FR82S

EAN code:

3250610702840

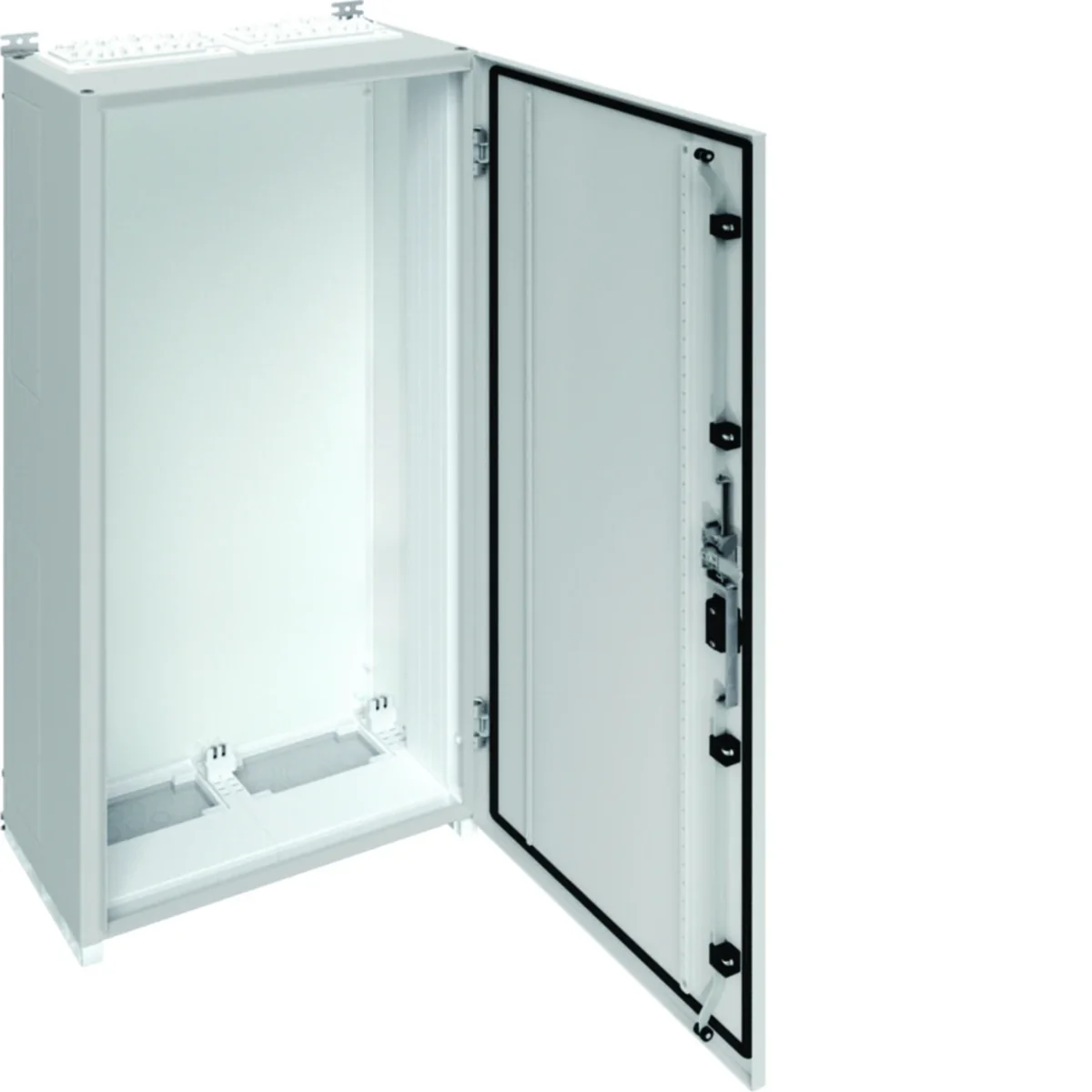

UNIVERS Wall-mounted switchgear IP55/II 550x1250x275

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

See full description

Large-size product

Price:

528,21 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

550
Surface finish

Powder coated
Number of rows for cameras

8
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

II
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1250
Accurate color

light gray
Number of cable entries

4

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

550 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

8
Number of openings for flange plates

4
Number of conduit inlets

4
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10

Type of covering

Door
Type of door

Single
With lock

No
Height

1250 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

192
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.
Weight (kg)	39,000	40,000	185,000
Width (m)	0,300	0,300	0,800
Length (m)	1,350	1,350	1,500
Depth (m)	0,590	0,590	1,200
