UNIVERS Wall-mounted switchgear IP55/II 1300x800x275 FR55S

Name: UNIVERS Wall-mounted switchgear IP55/II 1300x800x275
Brand: HAGER
SKU: RMN137HAGE
Price: 3694.65 PLN
Availability: BackOrder

Indice locale:

RMN137HAGE

Numero di catalogo:

FR55S

Codice EAN:

3250610702604

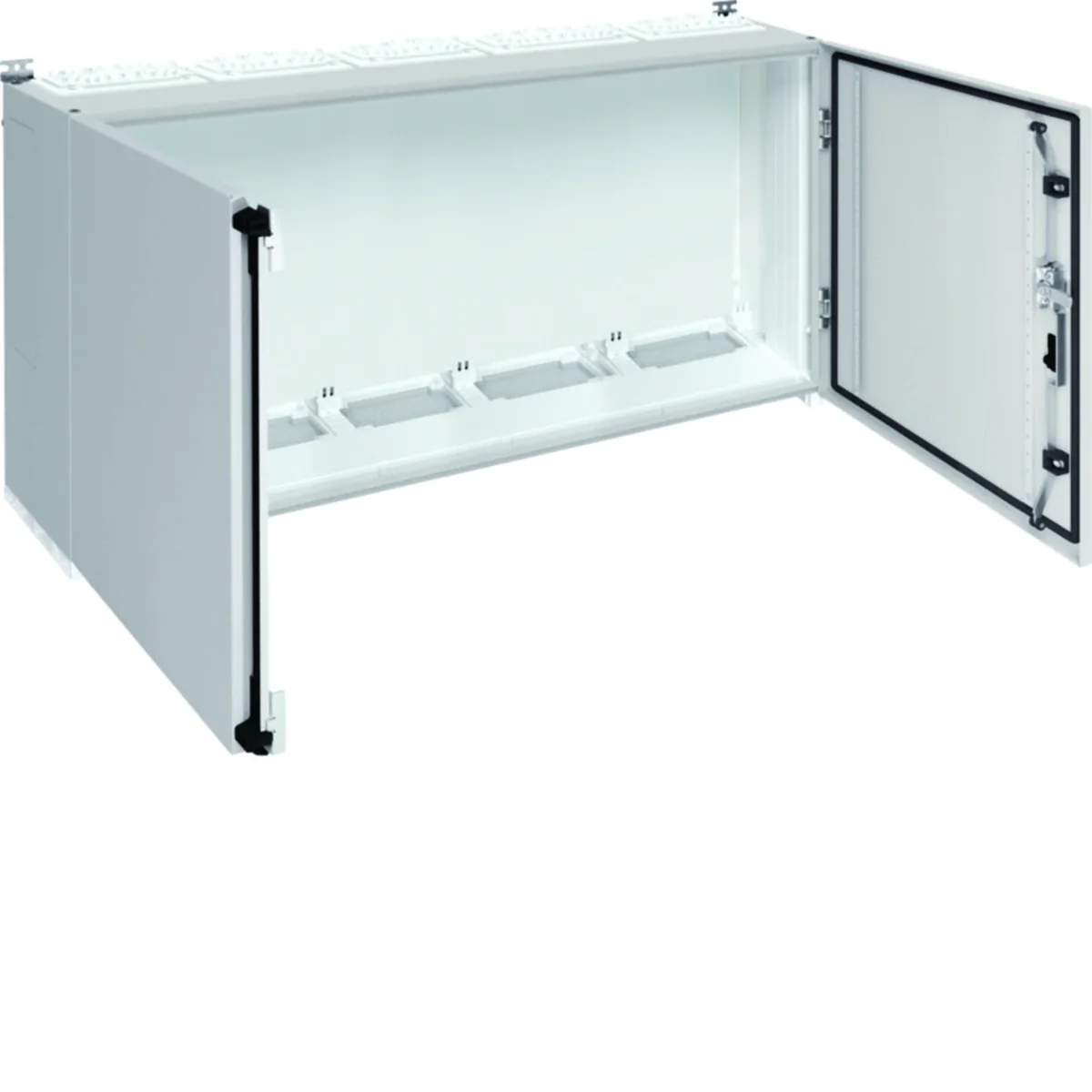

UNIVERS Wall-mounted switchgear IP55/II 1300x800x275

Clicca sulla foto per ingrandire

Produttore: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Vedi la descrizione completa

Prodotto di grandi dimensioni

Prezzo:

3 694,65 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1300
Surface finish

Powder coated
Number of rows for cameras

5
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

2
Protection class

II
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

800
Accurate color

light gray
Number of cable entries

10

Altri dati tecnici

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

1300 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

5
Number of openings for flange plates

10
Number of conduit inlets

10
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

800 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

300
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Dettagli del produttore

Produttore

Hager Electro GmbH & Co KG
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	1 pezzi	4 pezzi	1 pezzi	4 pezzi
Peso (kg)	54,000	220,000	54,000	220,000
Larghezza (m)	0,300	0,880	0,300	0,880
Lunghezza (m)	1,320	1,470	1,320	1,470
Profondità (m)	0,900	1,200	0,900	1,200
