UNIVERS Wall-mounted switchgear IP55/II 1050x800x275 FR54S

Name: UNIVERS Wall-mounted switchgear IP55/II 1050x800x275
Brand: HAGER
SKU: RMN135HAGE
Price: 3250.45 PLN
Availability: BackOrder

Indeks lokalny:

RMN135HAGE

Numer katalogowy:

FR54S

Kod EAN:

3250610702581

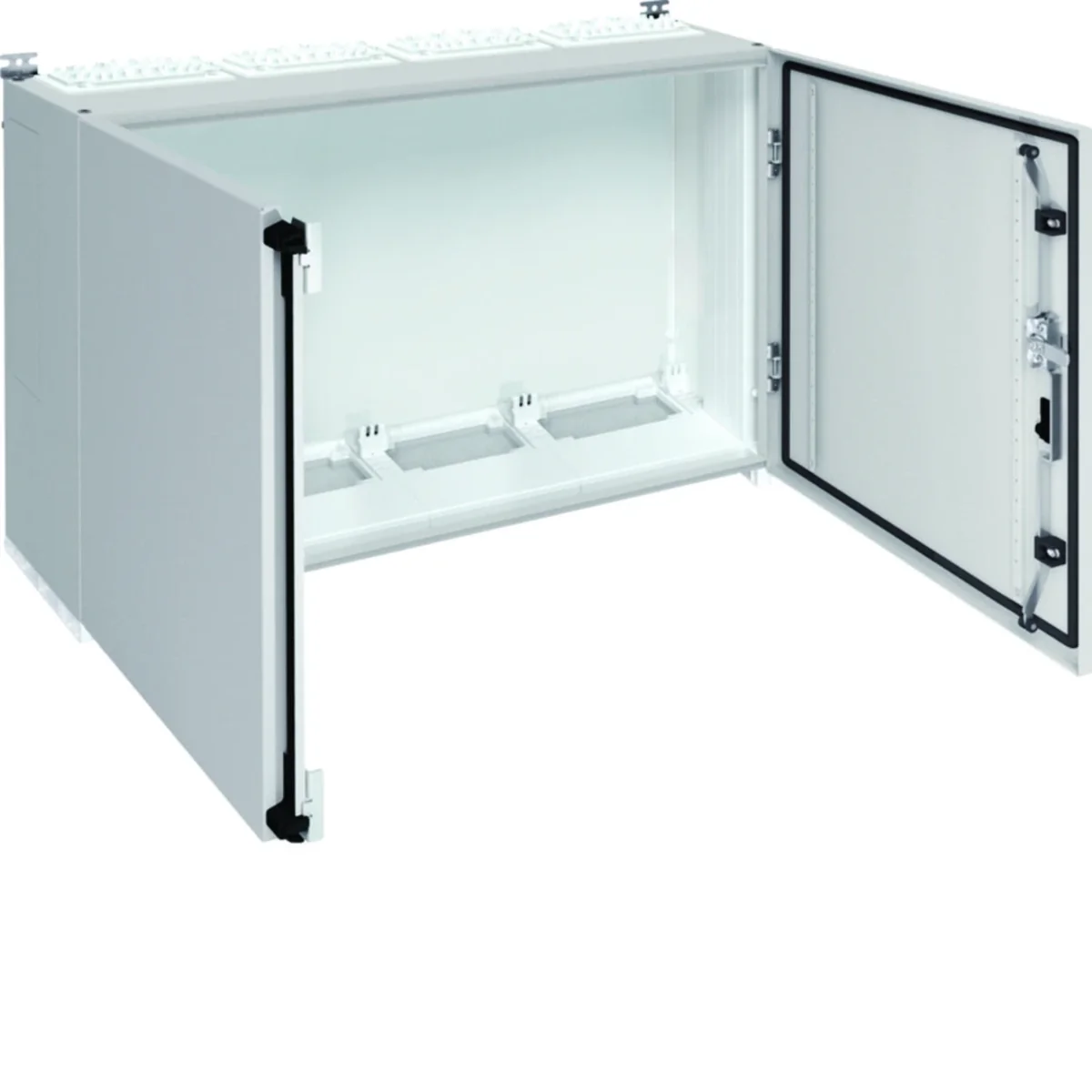

UNIVERS Wall-mounted switchgear IP55/II 1050x800x275

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Zobacz cały opis

Cena:

3 250,45 zł

gross / szt.

(w tym VAT 23%)

do 10 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dane techniczne

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1050
Surface finish

Powder coated
Number of rows for cameras

5
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

2
Protection class

II
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

800
Accurate color

light gray
Number of cable entries

8

Pozostałe dane techniczne

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

1050 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

5
Number of openings for flange plates

8
Number of conduit inlets

8
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

800 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

240
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta	Karton	Paleta
Ilość	1 szt.	4 szt.	1 szt.	4 szt.
Waga (kg)	40,000	185,000	40,000	185,000
Szerokość (m)	0,890	0,890	0,890	0,890
Długość (m)	1,090	1,250	1,090	1,250
Głębokość (m)	0,300	1,200	0,300	1,200
