UNIVERS Wall-mounted switchgear IP55/I 800x500x275 FR33E

Name: UNIVERS Wall-mounted switchgear IP55/I 800x500x275
Brand: HAGER
SKU: RMN112HAGE
Price: 2214.30 PLN
Availability: BackOrder

Índice local:

RMN112HAGE

Número de catálogo:

FR33E

Código EAN:

3250610702352

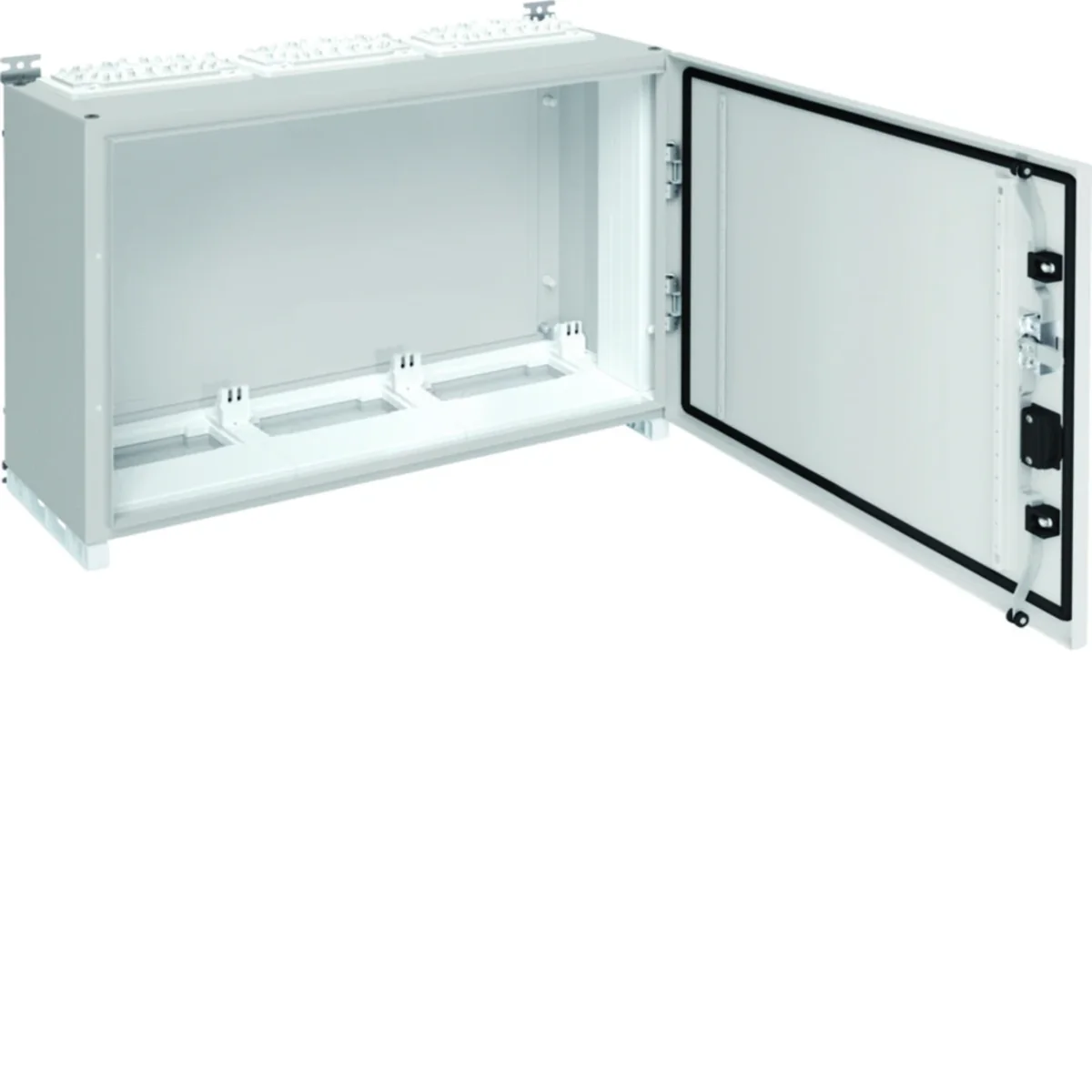

UNIVERS Wall-mounted switchgear IP55/I 800x500x275

Haga clic en la foto para ampliar

Fabricante: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Ver descripción completa

Precio:

2 214,30 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Datos técnicos

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

800
Surface finish

Powder coated
Number of rows for cameras

3
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

500
Accurate color

light gray
Number of cable entries

6

Otros datos técnicos

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

800 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

3
Number of openings for flange plates

6
Number of conduit inlets

6
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

500 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

108
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	8 uds.	1 uds.	8 uds.
Peso (kg)	30,000	265,000	30,000	265,000
Ancho (m)	0,600	0,840	0,600	0,840
Longitud (m)	0,320	1,310	0,320	1,310
Profundidad (m)	0,850	1,200	0,850	1,200
