UNIVERS Wall-mounted switchgear IP55/I 800x1250x275 FR83E

Name: UNIVERS Wall-mounted switchgear IP55/I 800x1250x275
Brand: HAGER
SKU: RMN162HAGE
Price: 632.26 PLN

Index local:

RMN162HAGE

Numéro de catalogue:

FR83E

Code EAN:

3250610702857

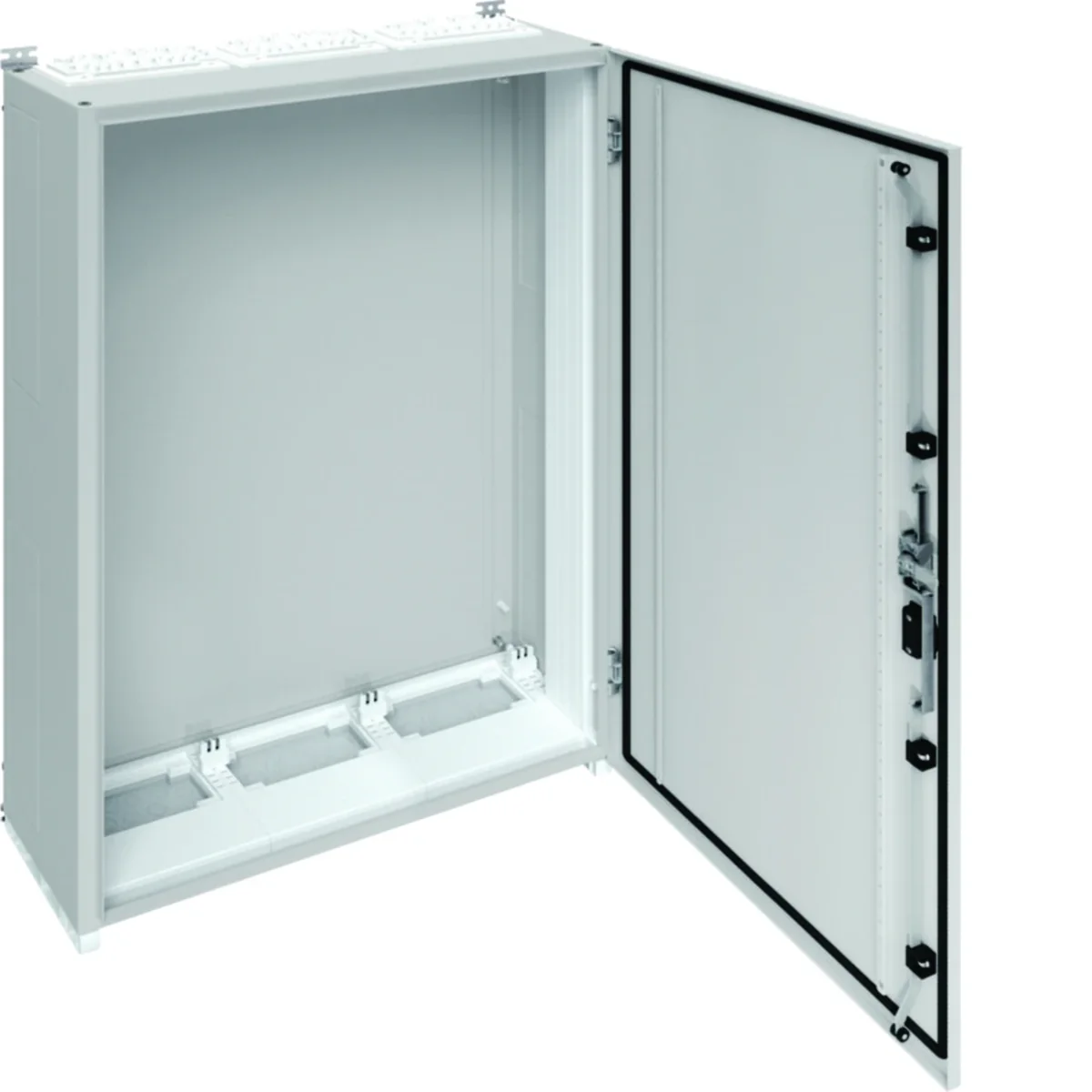

UNIVERS Wall-mounted switchgear IP55/I 800x1250x275

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Voir la description complète

Produit de grande taille

Prix:

632,26 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 4 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Emballage en vrac

Description du produit

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

800
Surface finish

Powder coated
Number of rows for cameras

8
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1250
Accurate color

light gray
Number of cable entries

6

Autres données techniques

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

800 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

8
Number of openings for flange plates

6
Number of conduit inlets

6
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10

Type of covering

Door
Type of door

Single
With lock

No
Height

1250 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

288
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Emballage en vrac

Une sorte de paquet		Karton	Paleta
Quantité	1 pcs.	1 pcs.	4 pcs.
poids (kg)	46,910	49,000	221,000
Largeur (m)	0,840	0,840	0,840
Longueur (m)	1,370	1,370	1,520
Profondeur (m)	0,300	0,300	1,200
