UNIVERS Wall-mounted switchgear IP55/I 550x1400x400 FR92G

Lokaler Index:
RMN171HAGE
Katalognummer:
FR92G
EAN-Code:
3250610702949
Hersteller: HAGER
Halogen free: NO
Depth [mm]: 400
Thickness [mm]: 1.5
Großformatiges Produkt
Preis:
592,76 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

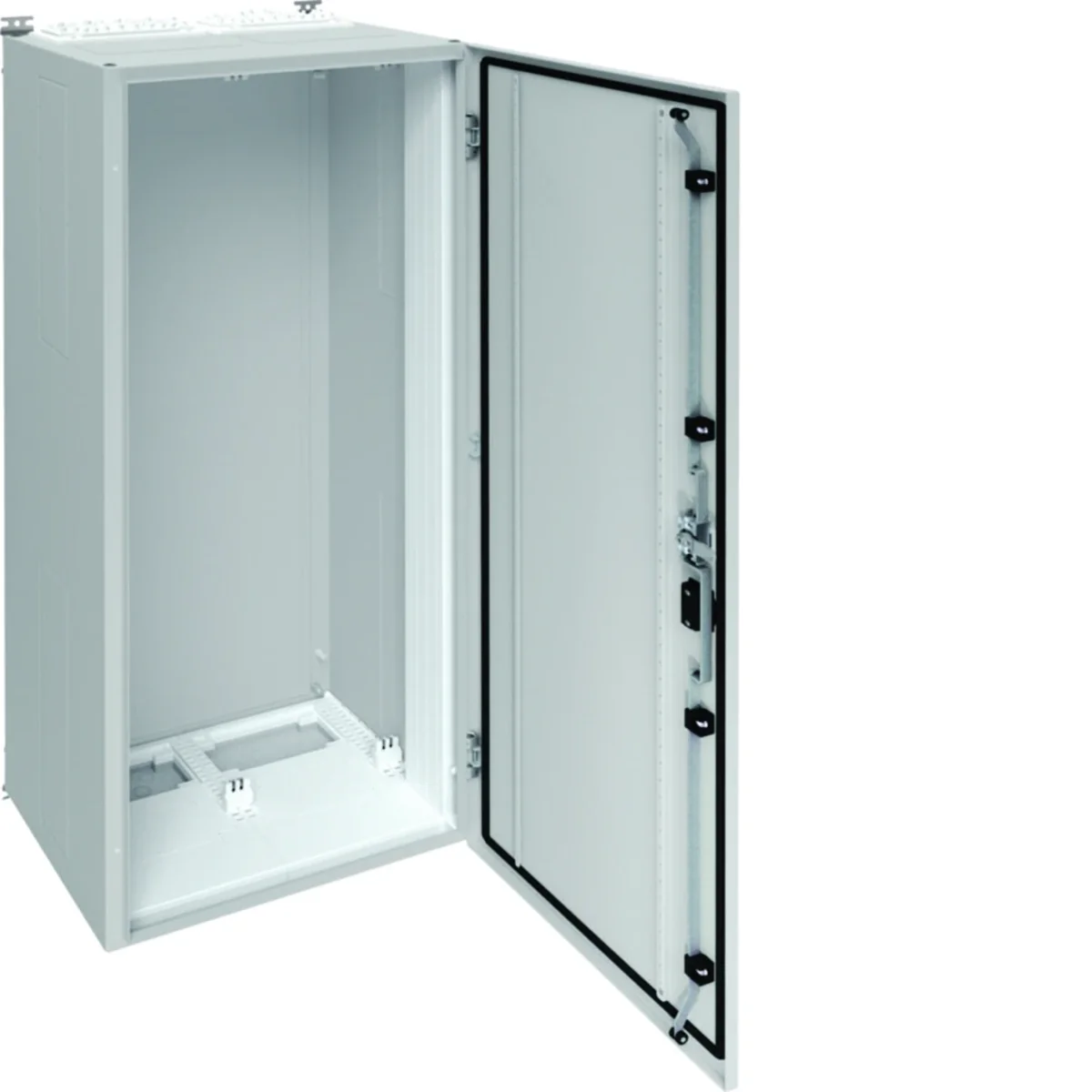

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylinder insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technische Daten

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    550
  • Surface finish
    Powder coated
  • Number of rows for cameras
    9
  • PKWIU
    27.12.40.0
  • Depth [mm]
    400
  • Number of doors
    1
  • Protection class
    AND
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    1400
  • Accurate color
    light gray
  • Number of cable entries
    4

Weitere technische Daten

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    800 A
  • Width
    550 mm
  • Inner depth
    400 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    9
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    1400 mm
  • Depth
    400 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    216
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None

Großpackungen

Eine Art Paket Karton Paleta
Menge 1 stk. 1 stk. 4 stk.
Gewicht (kg) 49,900 50,000 225,000
Breite (m) 0,425 0,425 0,860
Länge (m) 1,500 1,500 1,650
Tiefe (m) 0,580 0,580 1,200
