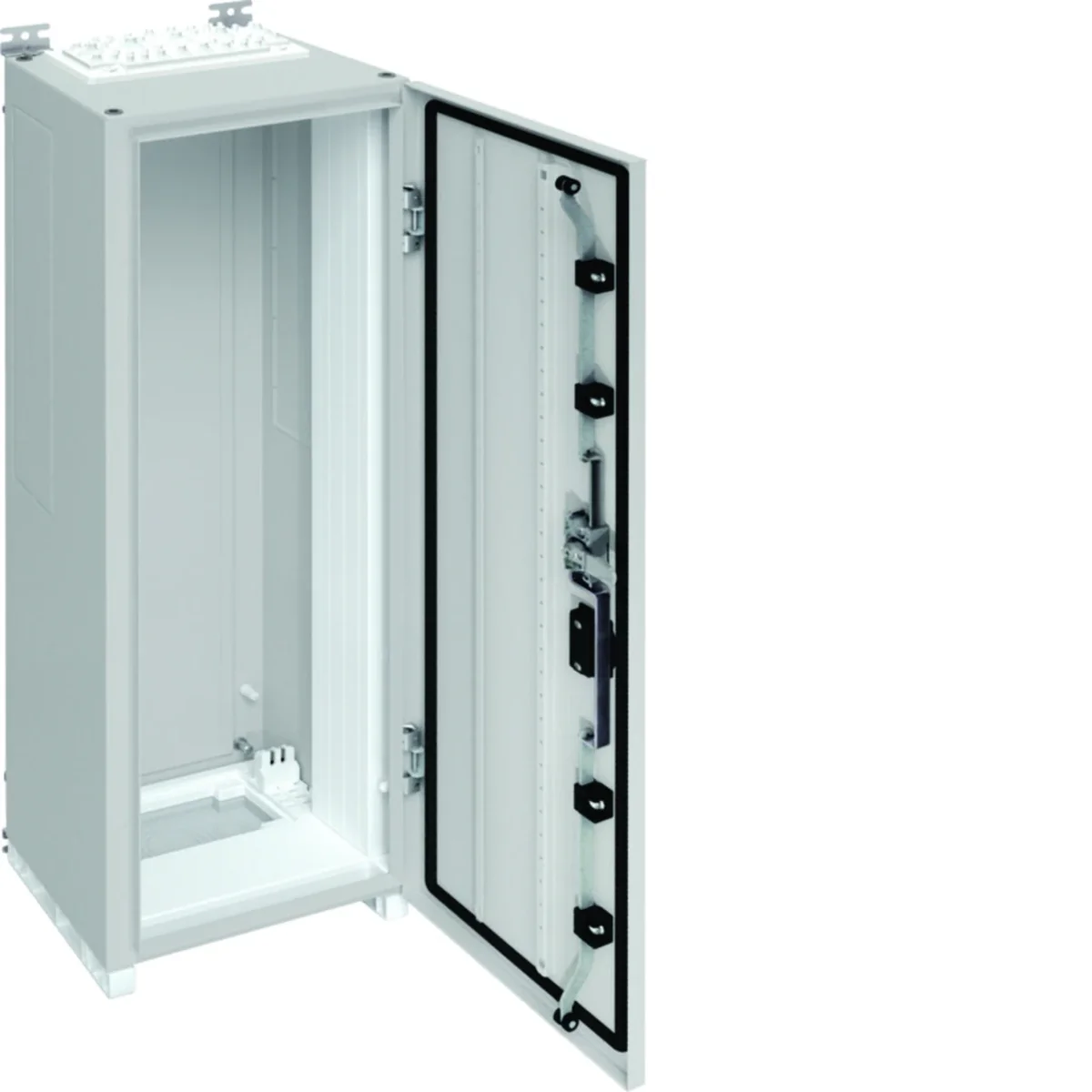

UNIVERS Wall-mounted switchgear IP55/I 300x950x275 FR61E

Внутрішній артикул:
RMN138HAGE
№ каталоговий:
FR61E
Код EAN:
3250610702611
Виробник: HAGER
Halogen free: NO
Depth [mm]: 275
Thickness [mm]: 1.5
Ціна:
1 898,65 zł
gross / шт.
(з ПДВ 23%)
до 10 тижнів
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Технічні дані

  • Halogen free
    NO
  • Thickness [mm]
    1.5
  • Number of locks
    1
  • Color
    Gray
  • Installation
    Surface-mounted
  • Family
    UNIVERS
  • Width [mm]
    300
  • Surface finish
    Powder coated
  • Number of rows for cameras
    6
  • PKWIU
    27.12.40.0
  • Depth [mm]
    275
  • Number of doors
    1
  • Protection class
    AND
  • Housing material
    Steel plate
  • Surface
    Matt
  • Level of security
    IP55
  • Height [mm]
    950
  • Accurate color
    light gray
  • Number of cable entries
    2

Інші технічні дані

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    800 A
  • Width
    300 mm
  • Inner depth
    275 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    6
  • Number of openings for flange plates
    2
  • Number of conduit inlets
    2
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP55
  • Impact strength
    IK10
  • Cover with overpressure release
    No
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    950 mm
  • Depth
    275 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    72
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None

Інформація про виробника

  • Виробник
    Hager Electro GmbH & Co KG
  • Адреса
    DE 66440 Blieskastel Zum Gunterstal Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Karton Paleta Karton Paleta
Кількість 1 шт. 6 шт. 1 шт. 6 шт.
Вага (кг) 23,140 138,978 23,140 138,978
Ширина (м) 0,300 0,800 0,300 0,800
Довжина (м) 0,330 1,170 0,330 1,170
Глибина (м) 1,040 1,200 1,040 1,200
