UNIVERS Wall-mounted switchgear IP55/I 300x1100x275 FR71E

Name: UNIVERS Wall-mounted switchgear IP55/I 300x1100x275
Brand: HAGER
SKU: RMN148HAGE
Price: 2103.96 PLN
Availability: BackOrder

Index local:

RMN148HAGE

Numéro de catalogue:

FR71E

Code EAN:

3250610702710

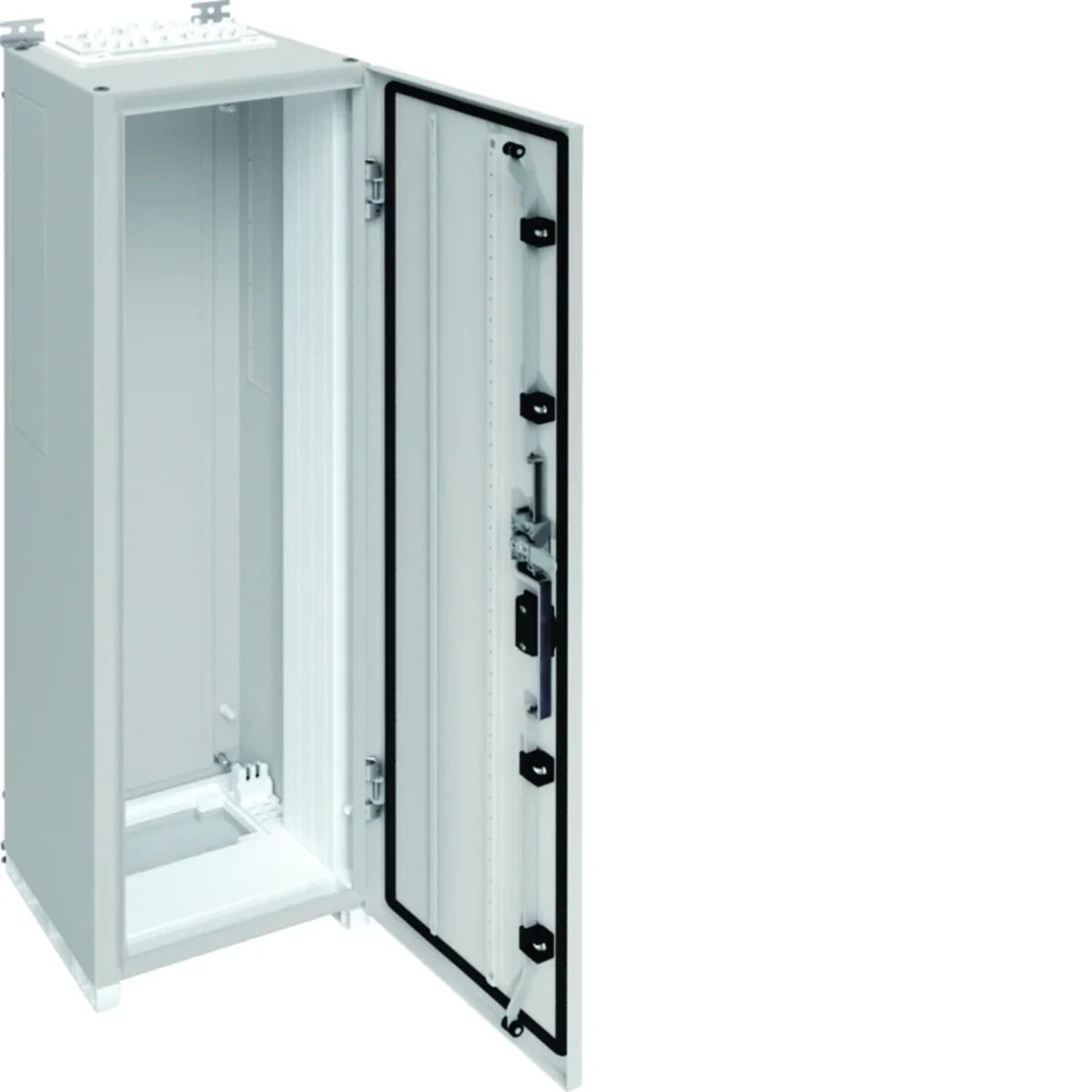

UNIVERS Wall-mounted switchgear IP55/I 300x1100x275

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

Voir la description complète

Prix:

2 103,96 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 10 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

300
Surface finish

Powder coated
Number of rows for cameras

7
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

1
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

1100
Accurate color

light gray
Number of cable entries

2

Autres données techniques

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

300 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

7
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Single
With lock

No
Height

1100 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

84
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Détails du fabricant

Producteur

Hager Electro GmbH & Co KG
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta	Karton	Paleta
Quantité	1 pcs.	6 pcs.	1 pcs.	6 pcs.
poids (kg)	20,000	145,000	20,000	145,000
Largeur (m)	0,300	0,800	0,300	0,800
Longueur (m)	0,340	1,500	0,340	1,500
Profondeur (m)	1,180	1,200	1,180	1,200
