UNIVERS Wall-mounted switchgear IP55/I 1050x950x275 FR64E

Name: UNIVERS Wall-mounted switchgear IP55/I 1050x950x275
Brand: HAGER
SKU: RMN144HAGE
Price: 3450.96 PLN
Availability: BackOrder

local index:

RMN144HAGE

Catalog number:

FR64E

EAN code:

3250610702673

UNIVERS Wall-mounted switchgear IP55/I 1050x950x275

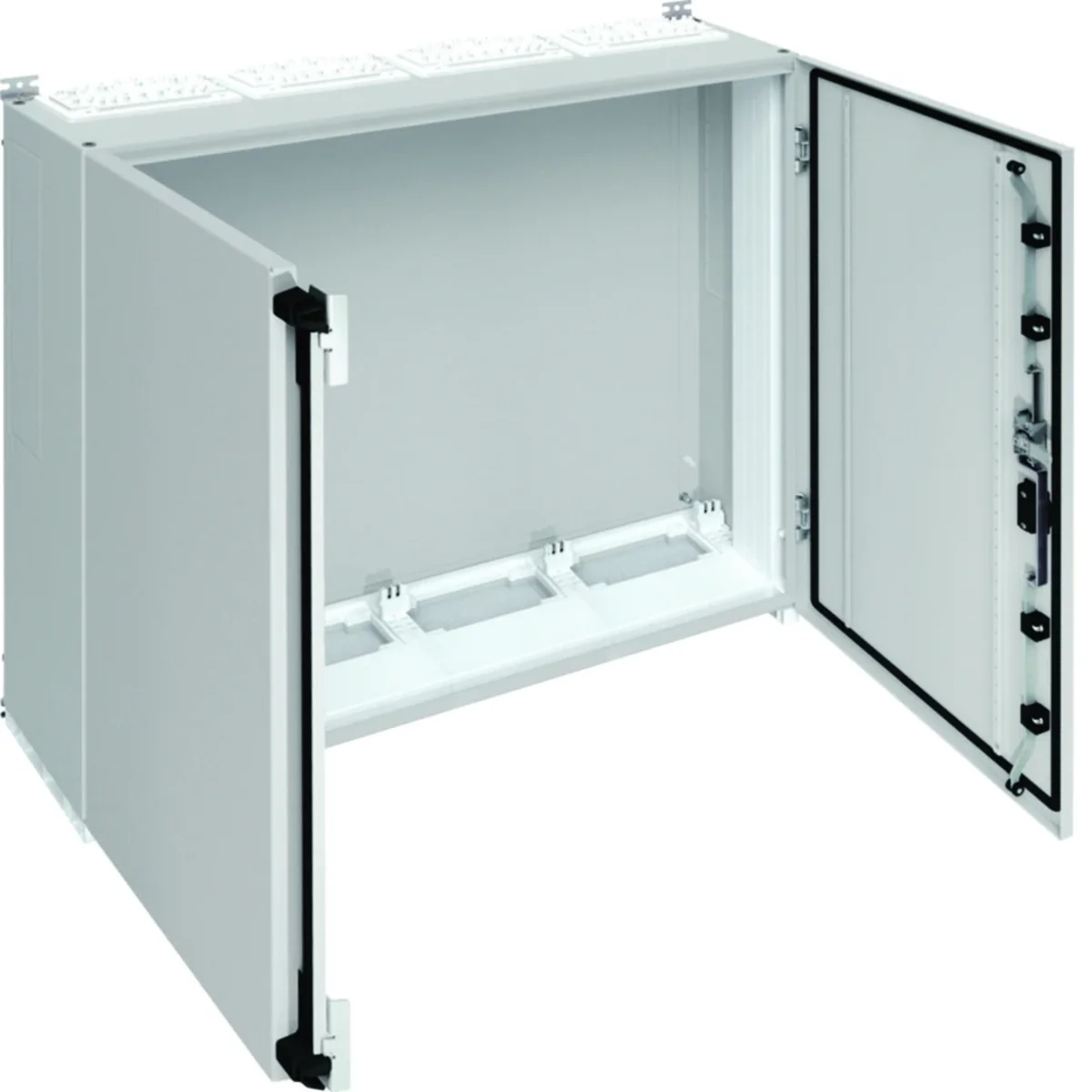

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Depth [mm]: 275

Thickness [mm]: 1.5

See full description

Price:

3 450,96 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Hanging switchgear from the univers series. The type of lock is a rotary lever of a semi-cylindrical insert.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Halogen free

NO
Thickness [mm]

1.5
Number of locks

1
Color

Gray
Installation

Surface-mounted
Family

UNIVERS
Width [mm]

1050
Surface finish

Powder coated
Number of rows for cameras

6
PKWIU

27.12.40.0

Depth [mm]

275
Number of doors

2
Protection class

AND
Housing material

Steel plate
Surface

Matt
Level of security

IP55
Height [mm]

950
Accurate color

light gray
Number of cable entries

8

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

800 A
Width

1050 mm
Inner depth

275 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

6
Number of openings for flange plates

8
Number of conduit inlets

8
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP55
Impact strength

IK10
Cover with overpressure release

No

Type of covering

Door
Type of door

Double
With lock

No
Height

950 mm
Depth

275 mm
Material plate thickness cabinet

1.5 mm
Colour

Grey
Number of modules

288
Width in number of modular spacings

24
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	2 pcs.	1 pcs.	2 pcs.
Weight (kg)	49,000	123,000	49,000	123,000
Width (m)	0,300	0,800	0,300	0,800
Length (m)	1,030	1,180	1,030	1,180
Depth (m)	1,090	1,200	1,090	1,200
