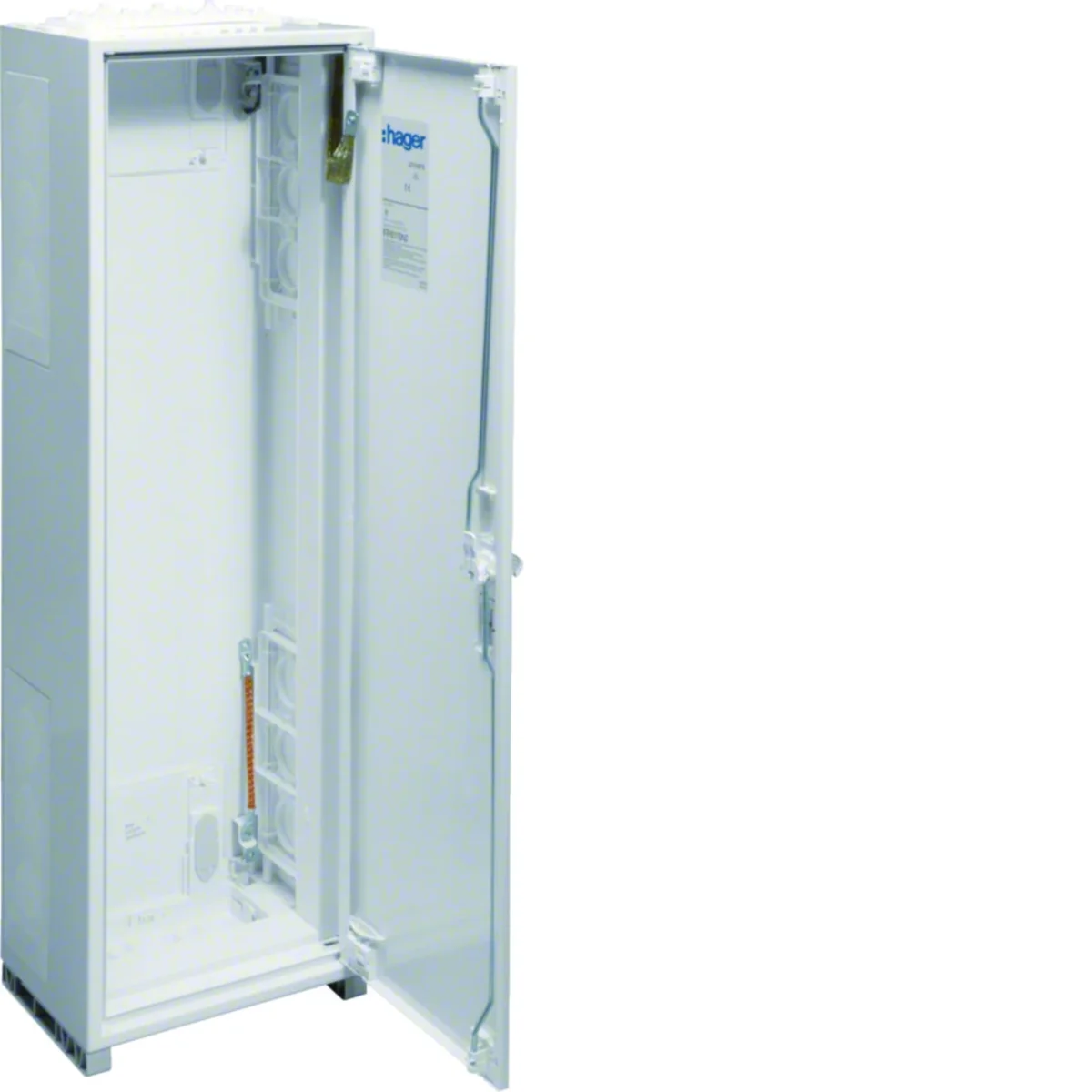

UNIVERS Wall-mounted enclosure IP54/II 950x300x205 FP61SW2
local index:
RMN047HAGE
Catalog No:
FP61SW2
EAN code:
3250612669318
Price:
514,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Wall housing univers series:
- QuickSet mounting.
Characteristics of the series:
Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors1
-
Protection classII
-
Housing materialSteel plate
-
FamilyUNIVERS
-
Width [mm]250
-
Number of sections1
-
Number of cable entries2
-
PKWIU27.12.40.0
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
FixingQuickSet
-
Level of securityIP54
-
Height [mm]950
-
Number of rows for cameras6
-
Lock typeT-Handle
Other technical data
-
Mounting methodOther
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width300 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules72
-
Width in number of modular spacings12
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorSingle
-
With lockNo
-
Height950 mm
-
Depth205 mm
-
Inner depth130 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows6
-
Number of openings for flange plates2
-
Number of conduit inlets2
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 10,799 | 11,500 | 161,000 |
| Width (m) | 0,300 | 0,320 | 0,860 |
| Length (m) | 0,950 | 0,230 | 1,100 |
| Depth (m) | 0,205 | 1,000 | 1,200 |
