UNIVERS Wall-mounted enclosure IP54/II 800x800x205 FP53SW2

Name: UNIVERS Wall-mounted enclosure IP54/II 800x800x205
Brand: HAGER
SKU: RMN040HAGE
Price: 2744.18 PLN
Availability: BackOrder

Índice local:

RMN040HAGE

Número de catálogo:

FP53SW2

Código EAN:

3250612669271

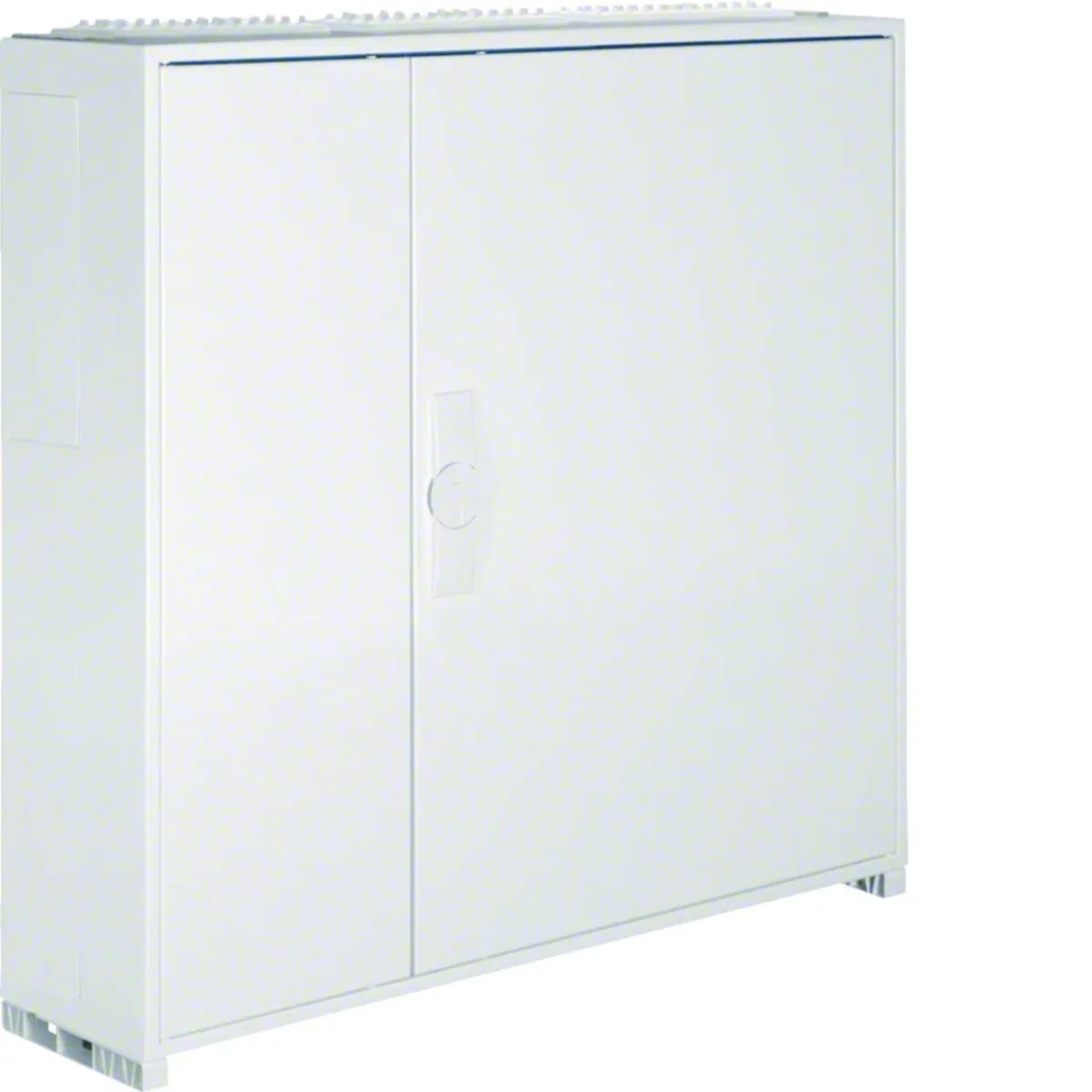

UNIVERS Wall-mounted enclosure IP54/II 800x800x205

Haga clic en la foto para ampliar

Fabricante: HAGER

Depth [mm]: 205

Thickness [mm]: 1

Number of doors: 2

Ver descripción completa

Precio:

2 744,18 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Wall-mounted housing univers series:

flush, surface or semi-recessed mounting.

< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Datos técnicos

Depth [mm]

205
Number of doors

2
Protection class

II
Housing material

Steel plate
Level of security

IP54
Height [mm]

800
Number of rows for cameras

5
Lock type

3-point lock

Thickness [mm]

1
Number of locks

1
Color

White
Family

UNIVERS
Width [mm]

750
Number of sections

3
Number of cable entries

6
PKWIU

27.12.40.0

Otros datos técnicos

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

250 A
Width

800 mm
Built-in depth

205 mm
Material plate thickness cabinet

1 mm
Colour

White
Number of modules

180
Width in number of modular spacings

36
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

No
Height

800 mm
Depth

205 mm
Inner depth

130 mm
Material plate thickness door/cover

1 mm
RAL-number

9010
Number of rows

5
Number of openings for flange plates

6
Number of conduit inlets

6
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP54
Impact strength

IK09
Cover with overpressure release

No

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	5 uds.	1 uds.	5 uds.
Peso (kg)	18,800	119,000	18,800	119,000
Ancho (m)	0,210	0,800	0,210	0,800
Longitud (m)	0,850	1,010	0,850	1,010
Profundidad (m)	0,810	1,200	0,810	1,200
