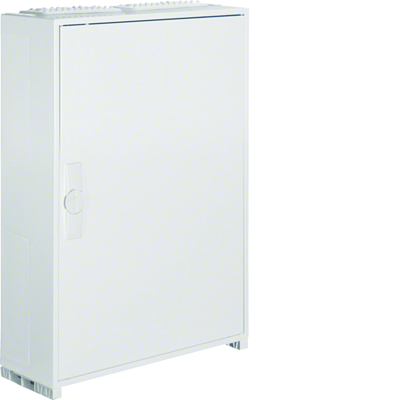

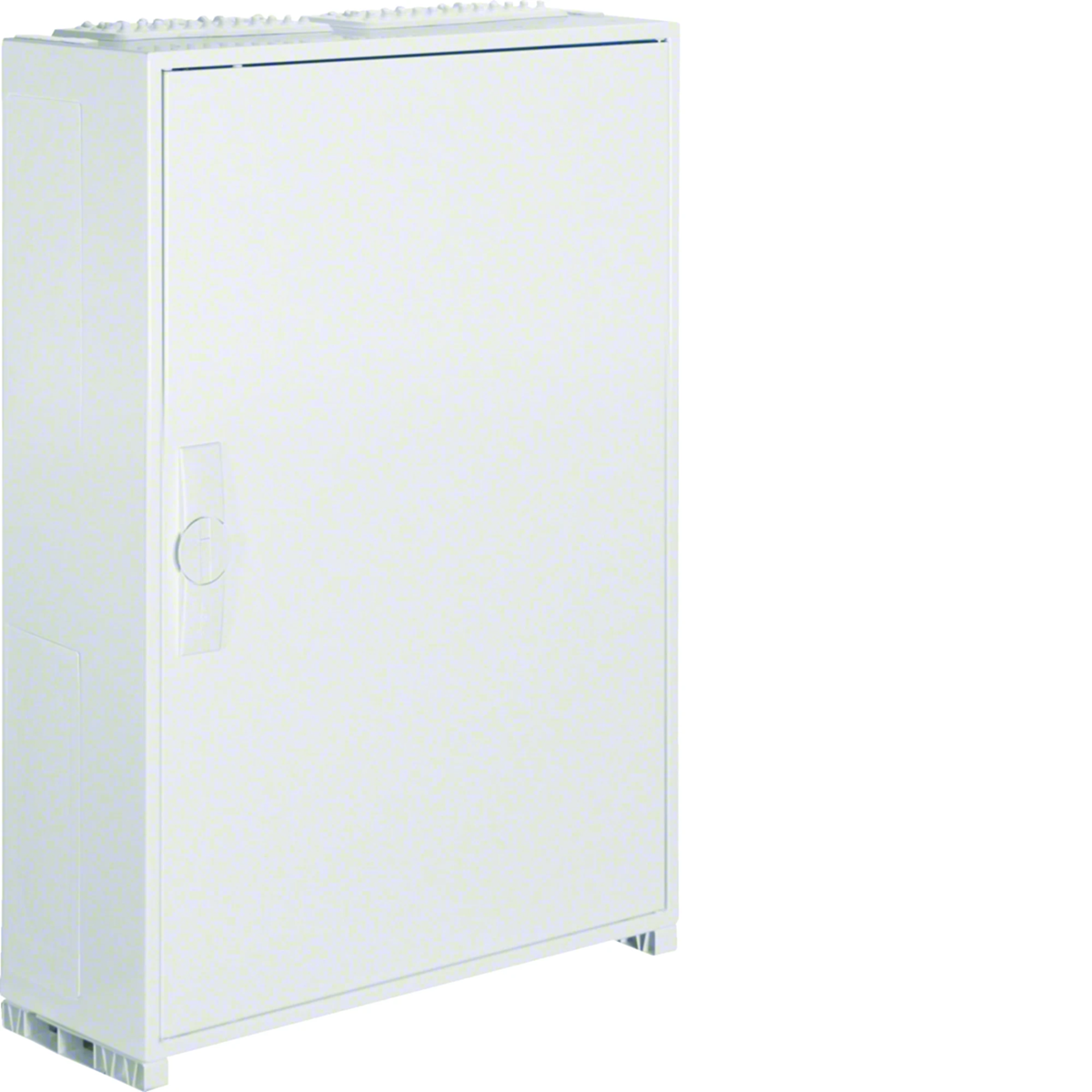

UNIVERS Wall-mounted enclosure IP54/II 800x550x205 FP52SW2

local index:
RMN039HAGE
Catalog No:
FP52SW2
EAN code:
3250612669264
Manufacturer: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Price:
485,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall-mounted housing from univers series:

  • flush, surface or semi-recessed mounting.
< p> Characteristics of the series:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.

Technical data

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Steel plate
  • Level of security
    IP54
  • Height [mm]
    800
  • Number of rows for cameras
    5
  • Lock type
    3-point lock
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    500
  • Number of sections
    2
  • Number of cable entries
    4
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    550 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    120
  • Width in number of modular spacings
    24
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    No
  • Height
    800 mm
  • Depth
    205 mm
  • Inner depth
    130 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    5
  • Number of openings for flange plates
    4
  • Number of conduit inlets
    4
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK09

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 14,409 14,410 140,280
Width (m) 0,550 0,565 0,860
Length (m) 0,800 0,215 1,005
Depth (m) 0,205 0,855 1,200
