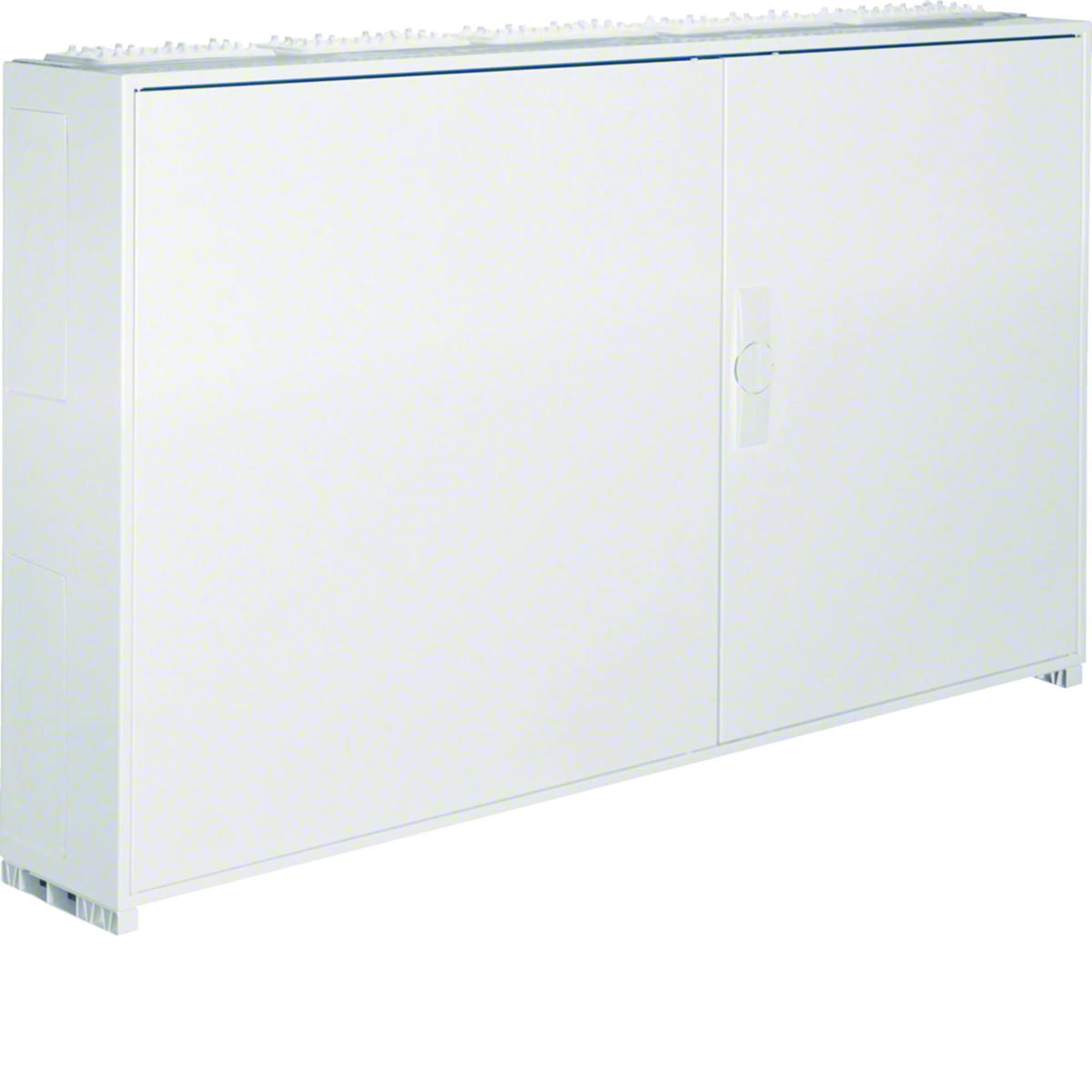

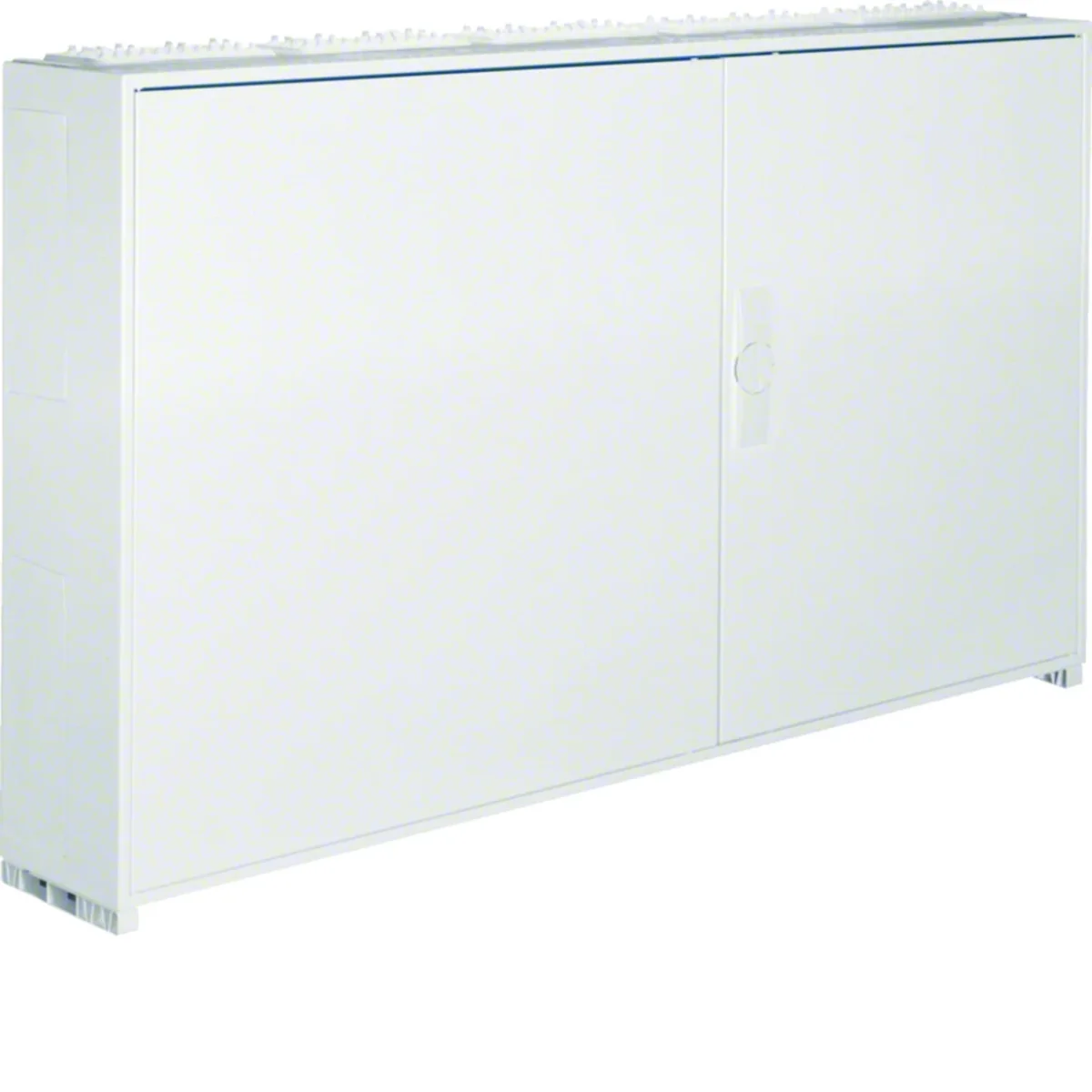

UNIVERS Wall-mounted enclosure IP54/II 800x1300x205 FP55SW2
local index:
RMN044HAGE
Catalog No:
FP55SW2
EAN code:
3250612669301
Large-size product
Price:
829,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Wall-mounted housing from univers series:
- flush, surface or semi-recessed mounting.
The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, guaranteeing at the same time maximum safety.
Technical data
-
Depth [mm]205
-
Number of doors2
-
Protection classII
-
Housing materialSteel plate
-
Level of securityIP54
-
Height [mm]800
-
Number of rows for cameras5
-
Lock type3-point lock
-
Thickness [mm]1
-
Number of locks1
-
ColorWhite
-
FamilyUNIVERS
-
Width [mm]1250
-
Number of sections5
-
Number of cable entries10
-
PKWIU27.12.31.0
Other technical data
-
Mounting methodOther
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)250 A
-
Width1300 mm
-
Built-in depth205 mm
-
Material plate thickness cabinet1 mm
-
ColourWhite
-
Number of modules300
-
Width in number of modular spacings60
-
Extension possibleYes
-
Housing materialSteel
-
With mounting plateNo
-
Suitable for lightning protectionNo
-
Protection classII
-
Circuit integrityNone
-
Type of coveringDoor
-
Type of doorDouble
-
With lockNo
-
Height800 mm
-
Depth205 mm
-
Inner depth130 mm
-
Material plate thickness door/cover1 mm
-
RAL-number9010
-
Number of rows5
-
Number of openings for flange plates10
-
Number of conduit inlets10
-
Surface protectionPowder coating
-
Suitable for outdoor useNo
-
Degree of protection (IP)IP54
-
Impact strengthIK09
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 4 pcs. |
| Weight (kg) | 29,499 | 29,500 | 143,000 |
| Width (m) | 1,300 | 0,215 | 0,850 |
| Length (m) | 0,800 | 1,320 | 1,500 |
| Depth (m) | 0,205 | 0,850 | 1,500 |
