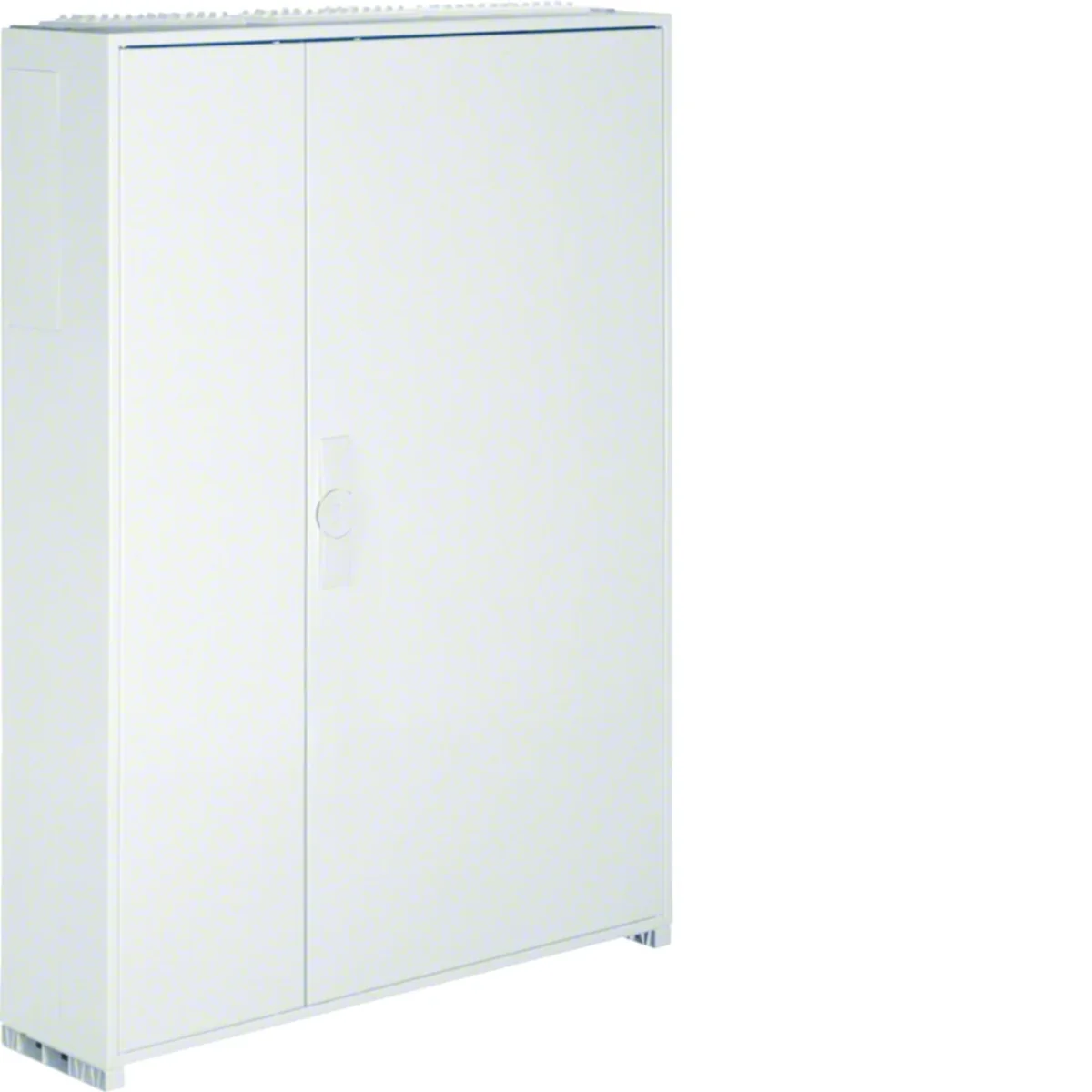

UNIVERS Wall-mounted enclosure IP54/II 1100x800x205 FP73SW2

Indice locale:
RMN055HAGE
Numero di catalogo:
FP73SW2
Codice EAN:
3250612669387
Produttore: HAGER
Depth [mm]: 205
Thickness [mm]: 1
Number of doors: 1
Prezzo:
3 642,37 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Wall housing univers:

  • QuickSet mounting.

Characteristics of the series:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

  • Depth [mm]
    205
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Steel plate
  • Family
    UNIVERS
  • Width [mm]
    750
  • Number of sections
    3
  • Number of cable entries
    6
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    1
  • Number of locks
    1
  • Color
    White
  • Fixing
    QuickSet
  • Level of security
    IP54
  • Height [mm]
    1100
  • Number of rows for cameras
    7
  • Lock type
    T-Handle

Altri dati tecnici

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    250 A
  • Width
    800 mm
  • Built-in depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    252
  • Width in number of modular spacings
    36
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    1100 mm
  • Depth
    205 mm
  • Inner depth
    130 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    7
  • Number of openings for flange plates
    6
  • Number of conduit inlets
    6
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK09
  • Cover with overpressure release
    No

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Paleta Karton Paleta
Quantità 1 pezzi 4 pezzi 1 pezzi 4 pezzi
Peso (kg) 25,000 125,000 25,000 125,000
Larghezza (m) 0,210 0,850 0,210 0,850
Lunghezza (m) 0,810 0,950 0,810 0,950
Profondità (m) 1,140 1,200 1,140 1,200
